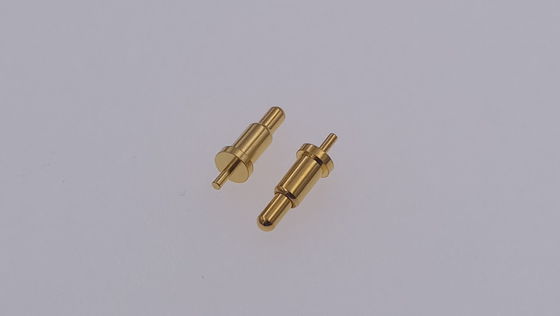

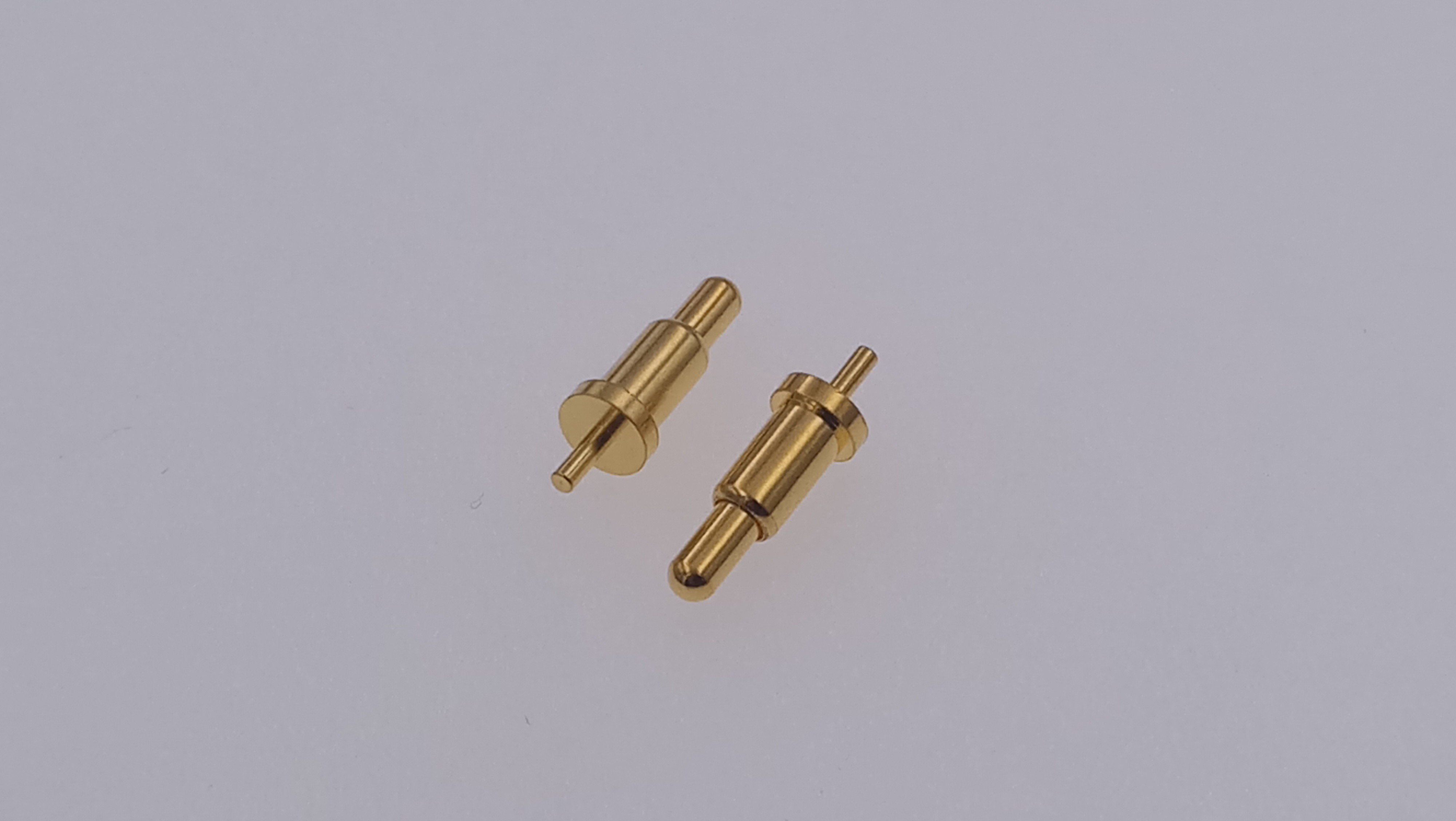

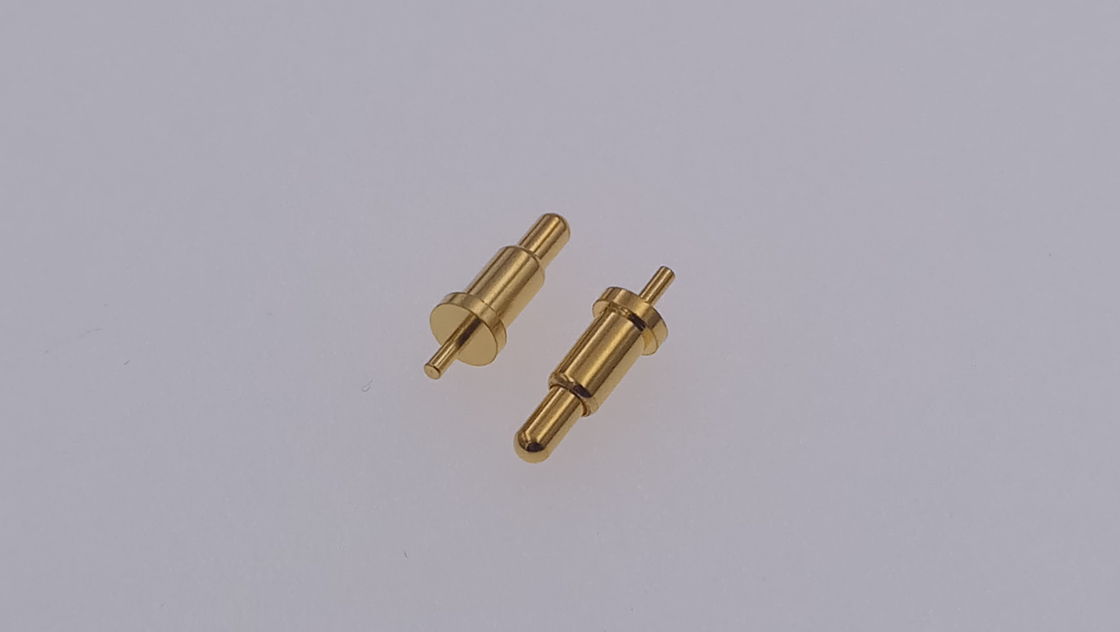

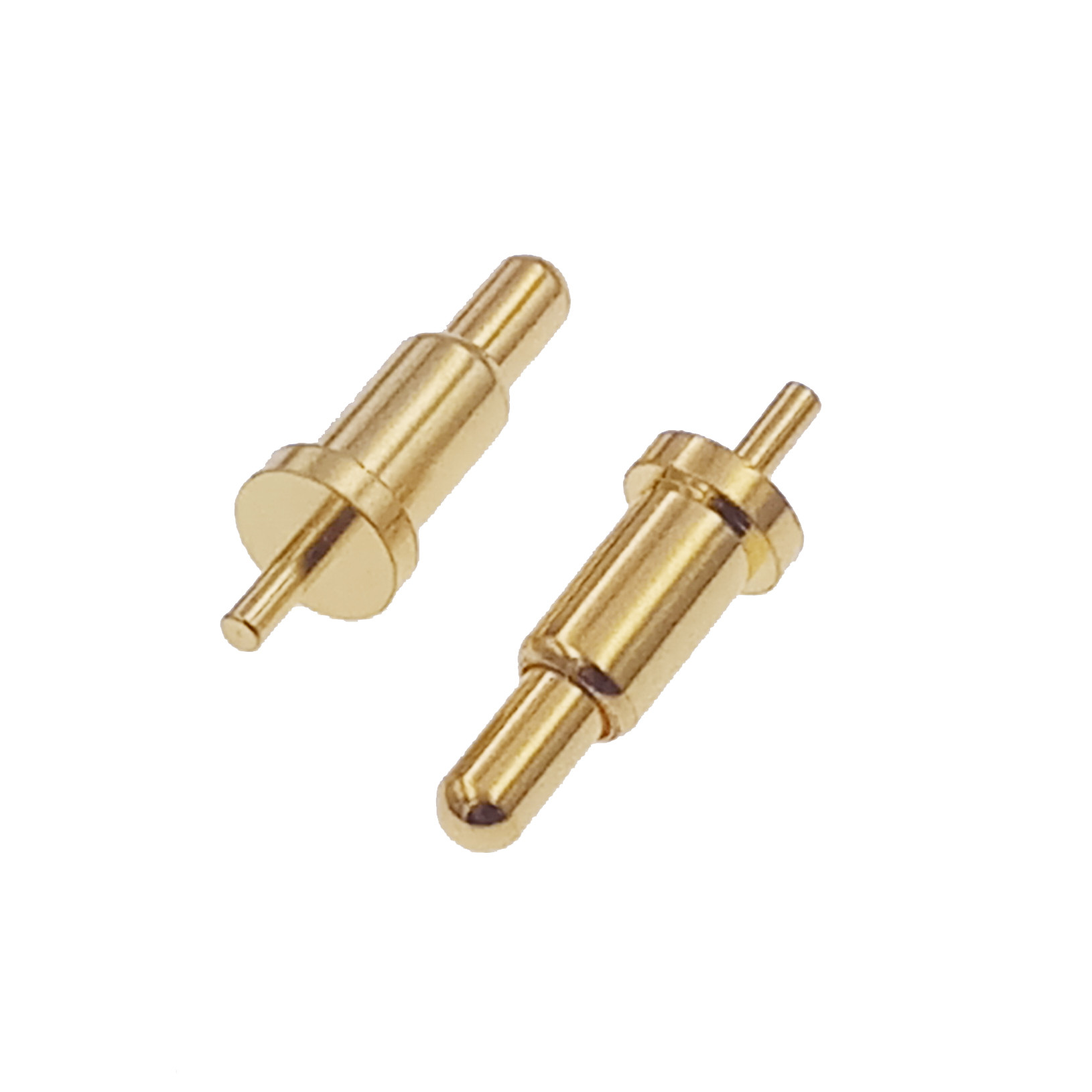

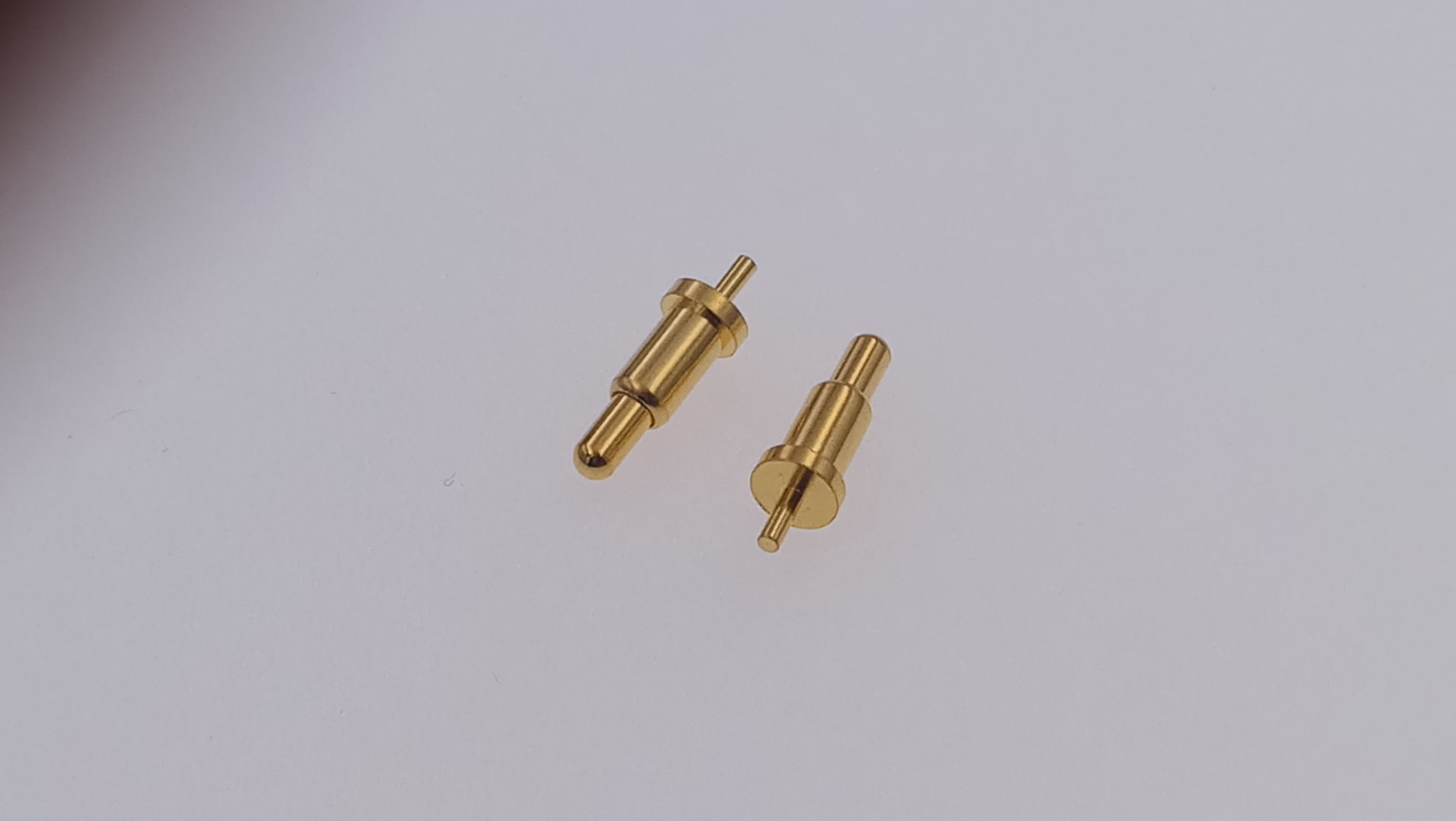

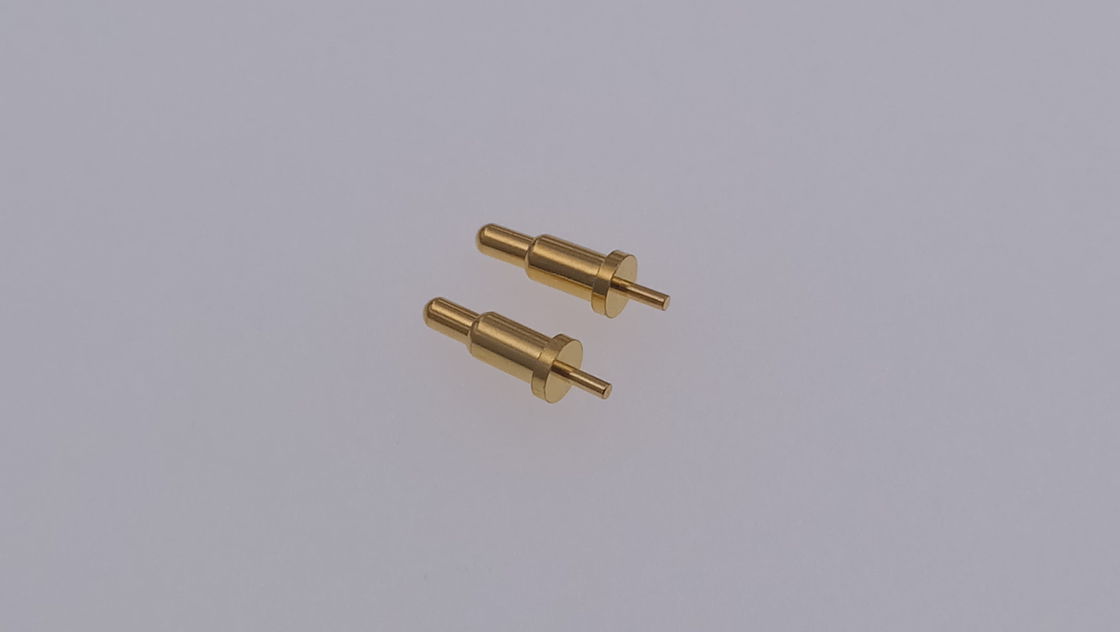

Battery Charging RoHS Spring Loaded Pogo Pins SMT With Tail

Battery Charging RoHS Spring Loaded Pogo Pins SMT With Tail
Battery Charging RoHS Spring Loaded Pogo Pins SMT With Tail Battery Charging RoHS Spring Loaded Pogo Pins SMT With Tail Battery Charging RoHS Spring Loaded Pogo Pins SMT With Tail Battery Charging RoHS Spring Loaded Pogo Pins SMT With Tail
Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS
Model Number: IPPRA-04
Minimum Order Quantity: 10000pcs
Price: Conact us
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 1000000pcs per 21 days
Contact Now
Name: Pogo Pin Contact Number: Pogo Pin
Gender: Male Usage: For Charging
Mounting: SMT With Tail Package: Loose Or Tape & Reel
Center Contact Plated: Brass, Gold Plate Life Cycle: 10000 Cycles
Spring: Stainless Steel
High Light:

RoHS Spring Loaded Pogo Pins

,

1 Pin Spring Loaded Pogo Pins

,

2A Spring Loaded Pogo Pins

Battery Charging RoHS Spring Loaded Pogo Pins SMT With Tail


Products Descrption:

Pogo pins consisting of a plunger (or head), barrel (or body), and a fully encapsulated fine spring, to provide the spring force required to maintain positive contact. All have a high durability, exceeding 20,000 mating cycles.

Good stability, gold plated connector brass spring loaded pogo pin

double row 1.27mm pitch pogo pins,made of copper with gold-plated surface finished, durable in use

pogo pins test probes, the function is connection, conductive; Characteristics is waterproof, moisture-proof

It's widely used in the connection between mobile phone antennas, mobile phone batteries and mobile phone motherboards



Charaterisitcs:



Material:

  1. Product type:   pogo Pin,

  2. Mating interface: Pogo

  3. Mounting:  SMT with tail

  4. Matching: Mates with any contact surface, or Surface Mount Contact Pads

  5. Cores: 1 Pin

  6. Center Contact: Brass Plated Gold

  7. Spring: Stainless steel



Specifcation





1. All Material RoHS

2. Rated Temperature : -45 to 85 Degree

3. Life Cycle:10000 cycles

4. Soldering TEMP: Max reflow soldering temperature 260°C  for 10 Seconds

5. Rated Current: 2A

6. Center Contact plated thickness : 0.4μ Gold over 1.4μ Nickel

7. Contact Resistance: 30m Ohms Max.

8. Salt Spray Test Hours: 48 Hours





Function: It provides an excellent electronics conduction, and power charging.



Sinrui's Advantage and Quality warranty for Circular Connectors



(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, contact numbers, shape,

mating interface, cable mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.



R&D testing Corner:



Battery Charging RoHS Spring Loaded Pogo Pins SMT With Tail 1
