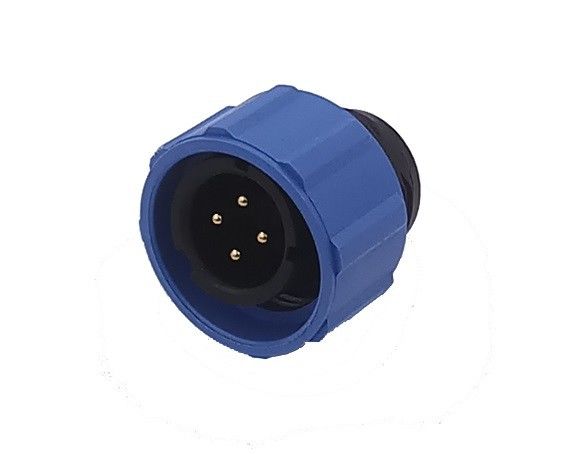

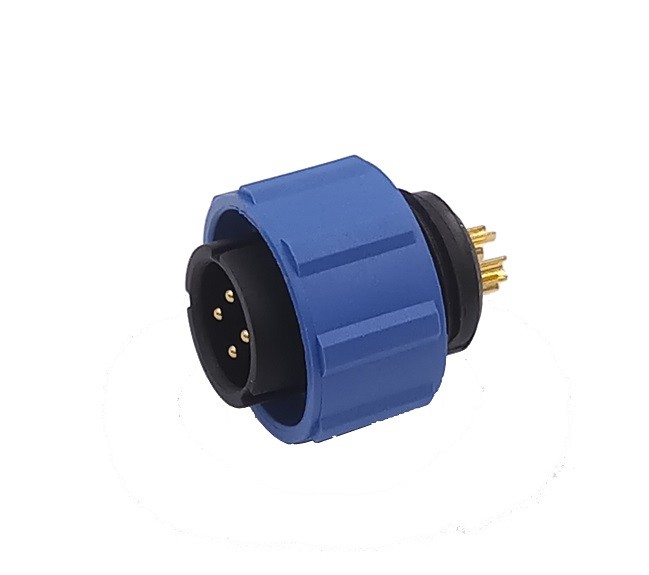

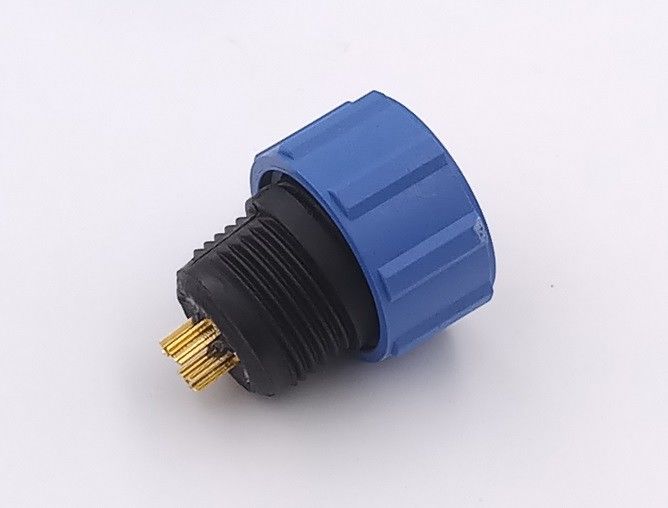

Vehicle Circular Waterproof Connector M15 Plug 4 Pin Round Male Connector

Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS
Model Number: SR-C15LMS04-001
Minimum Order Quantity: 1000pcs
Price: USD 1.7 per pcs
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 10000pcs per 21 days
Name: M15 Circular Connectors Contact Number: 4 Cores
Gender: Male Plug Interface Mating: M15 Screw Thread
Mounting: For Cables Waterproof Level: IP68, Up To 100 Meters Underwater
Body Material: PA66 Center Contact Plated: Gold Plated 3U
Cable Spec: Can Be Specified Life Cycle: 500 Cyles
High Light:

circular cable connectors

,

circular pin connector

Products Name: M15 Circular waterproof male plug connectors 4 Cores with cables


Products Descrption:

It is an over IP68 level connectors with interface M15 screwthread that it is in mass production, and we supply it as power supply connectors in electric

scooeter, drone which is working under the sea over 50 meters deep, as well as industrial control devices.



Charaterisitcs:



Material:

  1. Product type:wire to wire connectors,

  2. Mating interface: M15, cicurlar screw thread

  3. Mounting: with cables, by soldering, clamping.

  4. Cores:4 cores (can be customized for more cores)

  5.
  6.
  7.
  8. Center Contact: Brass, plated Gold

  9.

    Body: PA66

    Insulator: PPS

    Seal: Rubber

    Tail Nut: PA



Specifcation
Item Description Value
1 All Material RoHS Compliant
2 Waterproof Level

Over IP68

(Can work under the sea 80 meters)

3 Rated Temperature -40 to 85 Degree
4 Life Cycle 500 cycles
5 Rated Voltage 200V / AC
6 Rated Current 5A
7

Center Contact

plated thickness

3U Gold
8 Contact Resistance 5m Ohms Max.
9 Salt Spray Test Hours 200 Hours





Drawings:
Vehicle Circular Waterproof Connector M15  Plug 4 Pin Round Male Connector 0







Application: vehicle, oir, aviation, equipment, intelligent robot under the sea,etc.



Function: It provides an excellent electronics conduction, and power charging, meanwhile it can bring you good dust and waterproof.



Sinrui's Advantage and Quality warranty for Circular Connectors



(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, contact numbers, shape,

mating interface, cable mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.



R&D testing Corner:



Vehicle Circular Waterproof Connector M15  Plug 4 Pin Round Male Connector 2
