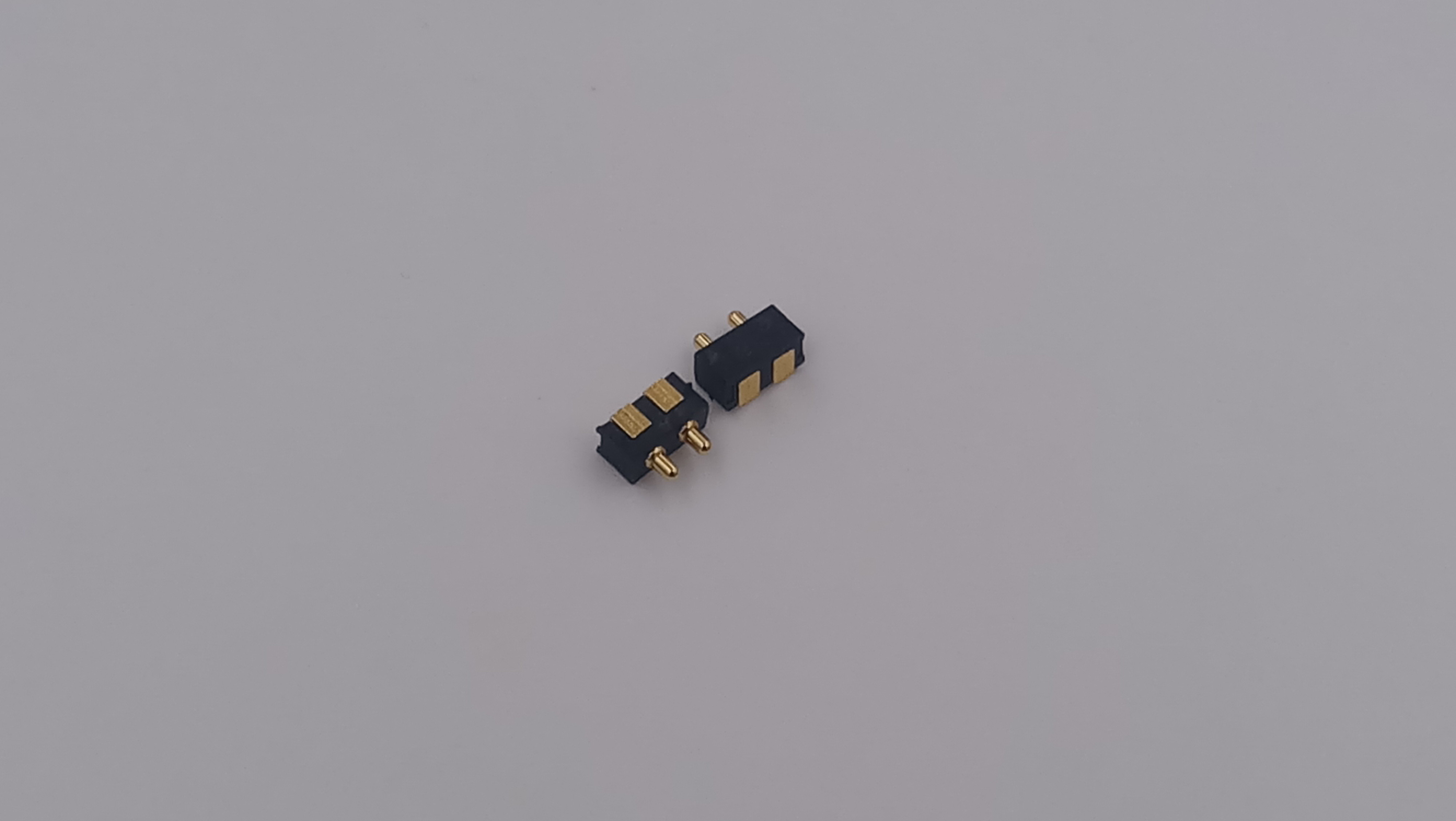

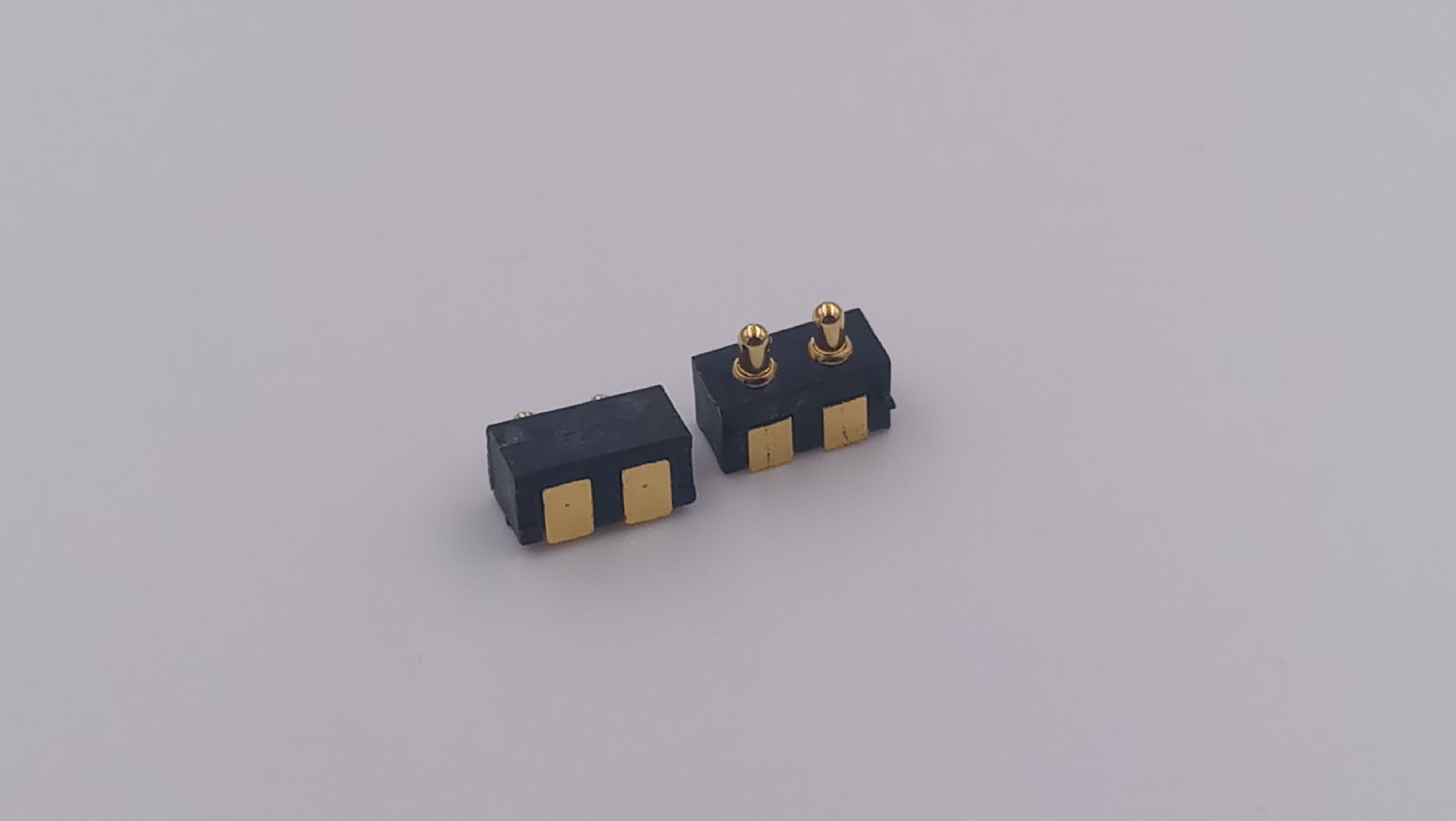

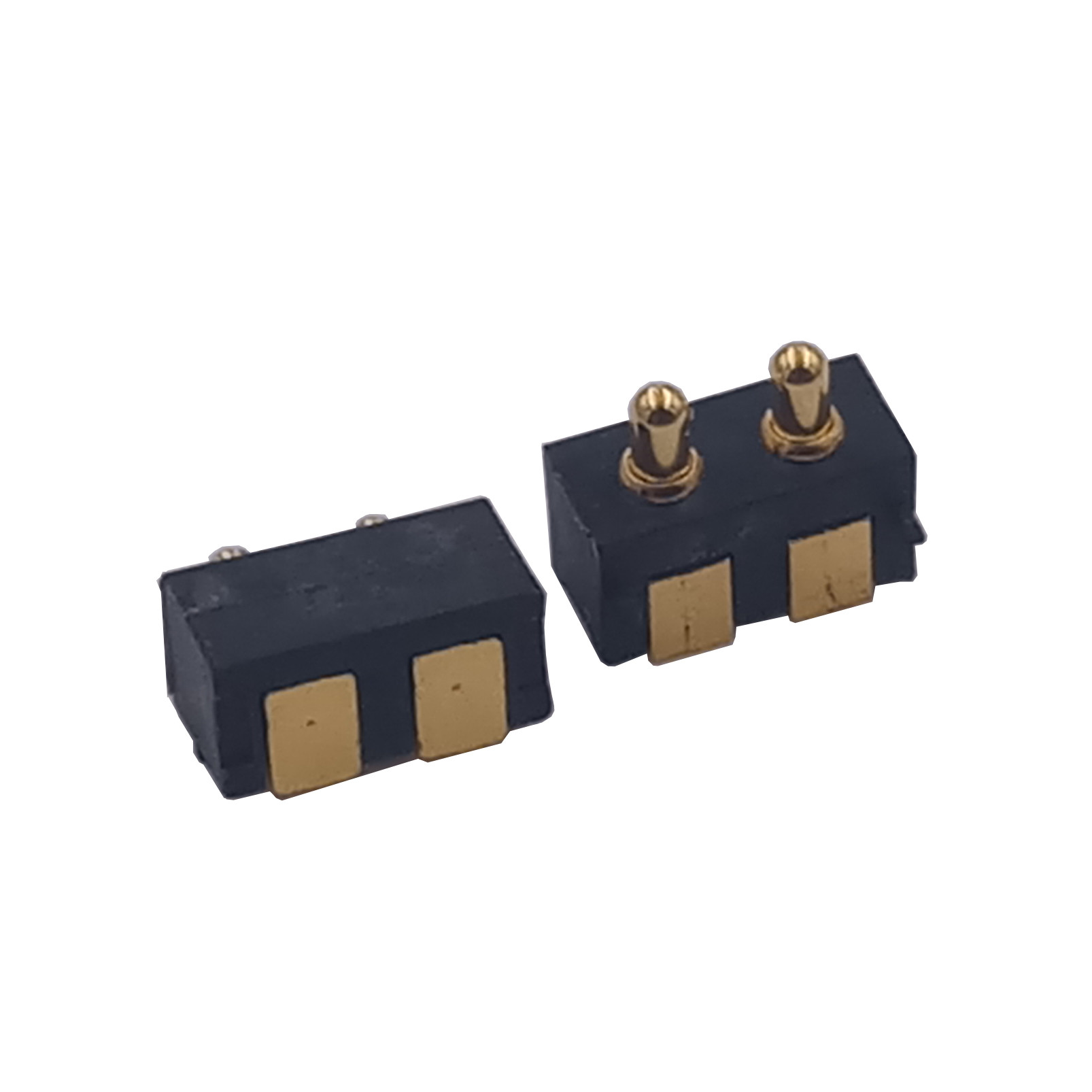

UL94V-0 2.54mm Magnetic Pogo Pin Connector 20000 Cycles 12V

UL94V-0 2.54mm Magnetic Pogo Pin Connector 20000 Cycles 12V
UL94V-0 2.54mm Magnetic Pogo Pin Connector 20000 Cycles 12V UL94V-0 2.54mm Magnetic Pogo Pin Connector 20000 Cycles 12V UL94V-0 2.54mm Magnetic Pogo Pin Connector 20000 Cycles 12V
Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS,REACH
Model Number: SRPC-002SS
Minimum Order Quantity: 5000pcs
Price: Conact us
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 20000pcs per 21 days
Contact Now
Name: Pogo Pin Connector Contact Number: 2 Cores
Gender: Male Usage: For Charging
Mounting: Side Soldering Package: Tape & Reel
Body Material: UL94V-0 Center Contact Plated: Brass, Gold Plate
Life Cycle: 20000 Cycles
High Light:

2.54mm Magnetic Pogo Pin Connector

,

UL94V-0 Magnetic Pogo Pin Connector

,

12V Magnetic Pogo Pin Connector

UL94V-0 2.54mm Magnetic Pogo Pin Connector 20000 Cycles 12V


Products Descrption:

Pogo pin connector, it is popular used for power supply in vehicle,electronics productsrobot, drone.

It brings a fast and accurate matching.



Charaterisitcs:

- Straight pogo pin design;

- Magnetic tensile force about 600g, stably working;

- Pogo pin and stainless steel fixed column structure;

- PA66+30% GF Plastic body design and support 24V/2A max;

- For data Sync and charging with anti-misplugging design;

- The contact pins is 5μ gold plated and magnets is nickel-plated;

- Could be connected with pcb board and wire/assembly with USB cable terminal end and wire specification you want;

- Application: Sports bracelet,GPS tracker,Smart watch,Beauty instrument,Medical device,Unmanned aerial vehicle and etc.



Material:

  1. Product type:  pogo Pin connectors,

  2. Mating interface: Pogo, Pitch 2.0mm

  3. Mounting: Side soldering

  4. Cores: 2 Pin (can be customized for more cores)

  5. Center Contact: Brass Plated Gold

  6. Body: UL94V-0

Specifcation
Item Description Value
1 All Material RoHS Compliant
2 PItch

2.54m
3 Rated Temperature -25 to 85 Degree
4 Life Cycle 2000 cycles
5 Rated Voltage 12V
6 Rated Current 1A
7

Center Contact

plated thickness

 Gold
8 Contact Resistance 5m Ohms Max.
9 Salt Spray Test Hours 48 Hours







Application:  Eectronics Power charging in PCB Modules.


Function: It provides an excellent electronics conduction, and power charging.



Sinrui's Advantage and Quality warranty for Circular Connectors



(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, contact numbers, shape,

mating interface, cable mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.



R&D testing Corner:



UL94V-0 2.54mm Magnetic Pogo Pin Connector 20000 Cycles 12V 1
