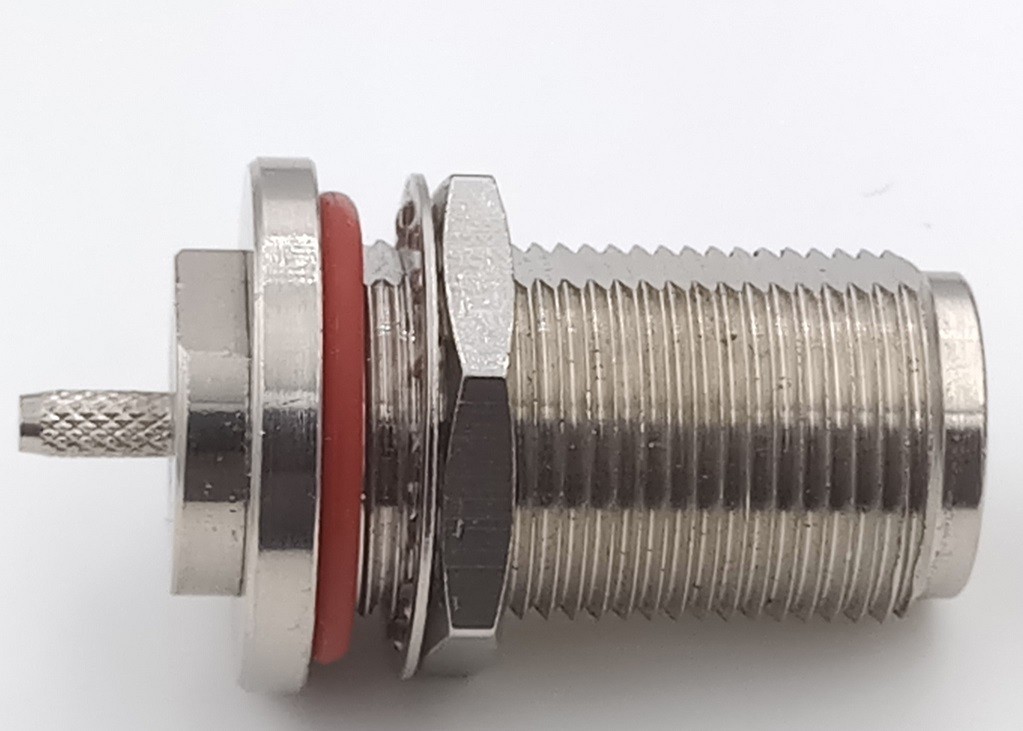

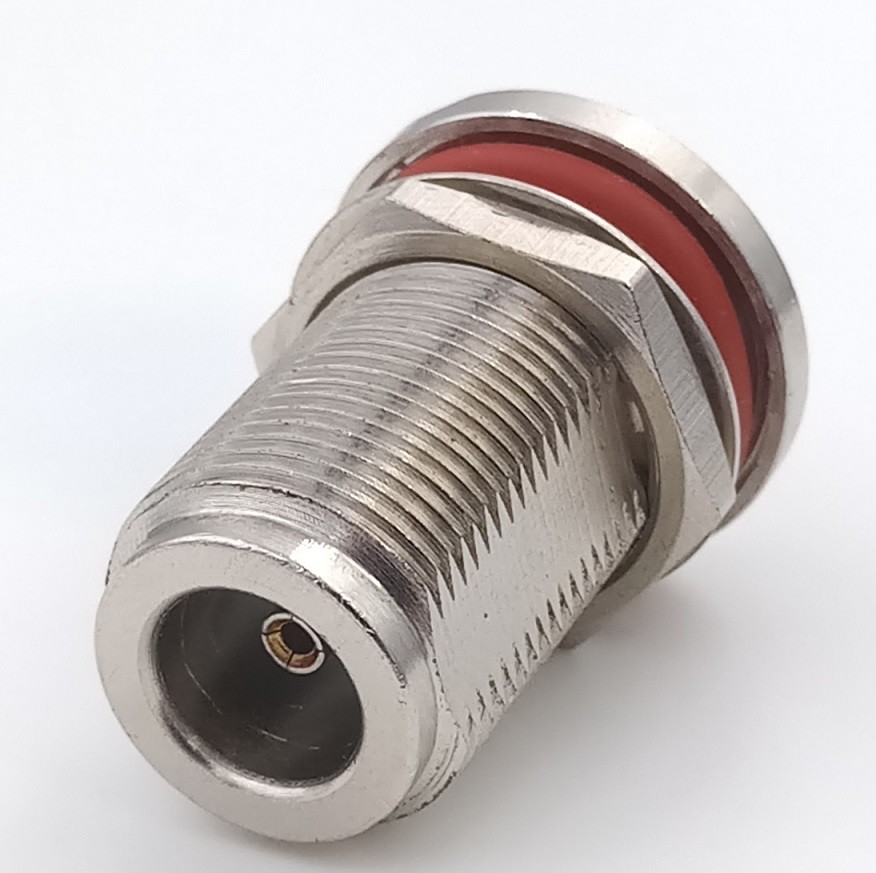

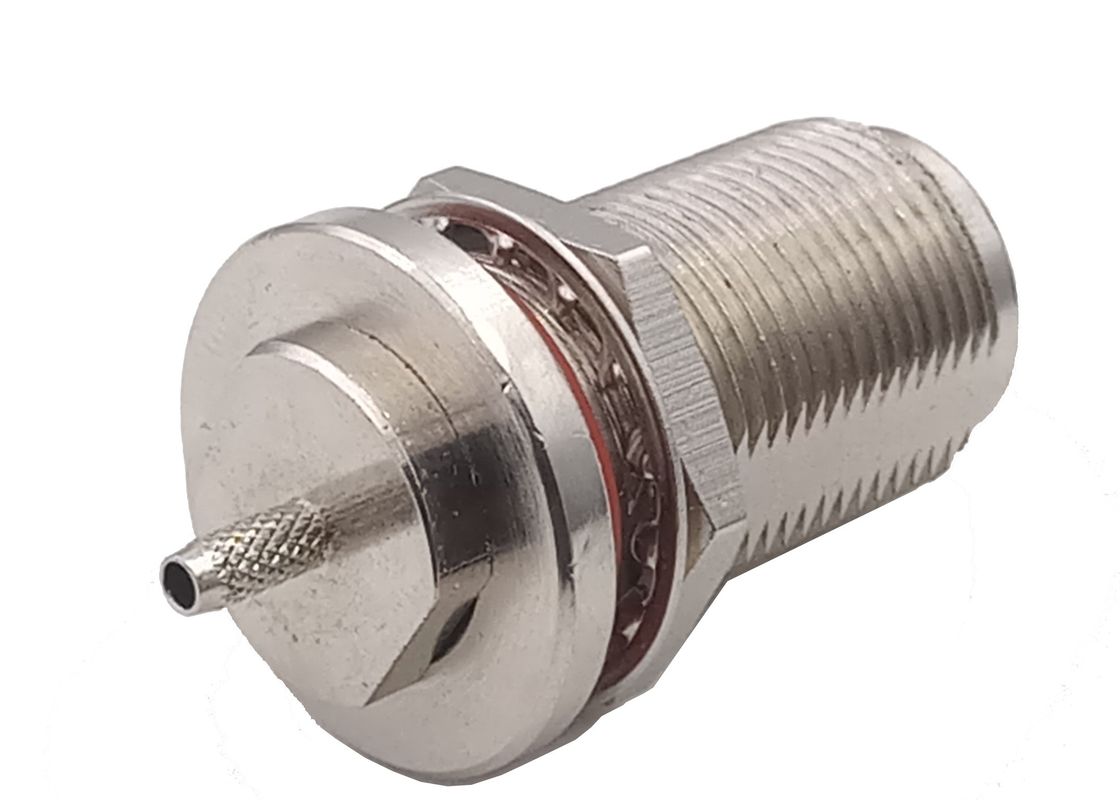

Straight RF N Antenna Connector Female Pin 6GHz Soldered Crimp With RG142 Cables

Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS
Model Number: N-K142L
Minimum Order Quantity: 1000pcs
Price: USD 0.998 per pcs
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 30000 pcs per 21 days
Interface: N Gender: Female (Jack)
Structure: Straight 180° Mounting: Solder And Crimp For RG142
Plated: Nickel Plated For Body Frequency: DC 6GHz
Size Customized: Can Be Customized Impedance: 50 Ohms
Salt Spray Test: 48 Hours For Body Life Cycle: 500 Cyles
High Light:

coaxial antenna connector

,

coaxial cable wire connector

Products Name: RF N Type Connector female pin 6GHz soldered crimp with RG142 cables



Products Descrption:

N connectors have a threaded coupling interface to ensure that it mates correctly. It is available in either 50Ω or 75Ω versions. These two versions have subtle mechanical differences that do not allow the two types to mate. This series of connectors follows the MIL-C-39012. The standard versions are specified for operation up to 11 GHz. The connectors are able to withstand relatively high powers when compared to the BNC or TNC connectors. They are used for many radio frequency applications including broadcast and communication equipments.



Common Application:

we produce and supply in hugh volumn for customers whose are in the fields of Base station, Antenna (outdoor and indoor),

Broadcast devices, wireless communication system, waveguide transmission sytem, and small quanttiy for tester instrument and aviation application.

  1.

Charaterisitcs:



  1. Interface Standard: N

  2. Type: Connector

  3. Gender: Female

  4. Impedance: 50 Ohms

  5. Structure: Straight 180°

  6. Mounting Type: Clamp with Cables,like RG142

  7.
Material
Items Material Plating
Center Contact Brass Gold
Body Brass Nickel
Insulator PTFE N/A



Specification
Description Value
Frequency DC 3GHz, or 6GHz, or DC 11GHz
Impedance 50 Ohms
VSWR 1.3
Insulation Resistance > 5000 M ohms
Dielectric Withstanding Voltage 1500V
Contact Resistance for center conductor < 0.0015 ohm
Contact Resistance for outer conductor < 0.002 ohm
Life Cycle 500 cyles
Temperature Rated -65 C° to +165 C°





Function: It provides an excellent RF signal transmssion, it is widely used in different industrial that it  is approved to be a excellent stable connectors and it can work with most of cables in market.



Sinrui's Advantage and Quality warranty for RF Connectors



(ODM an OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, shape, electric performance, mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.
