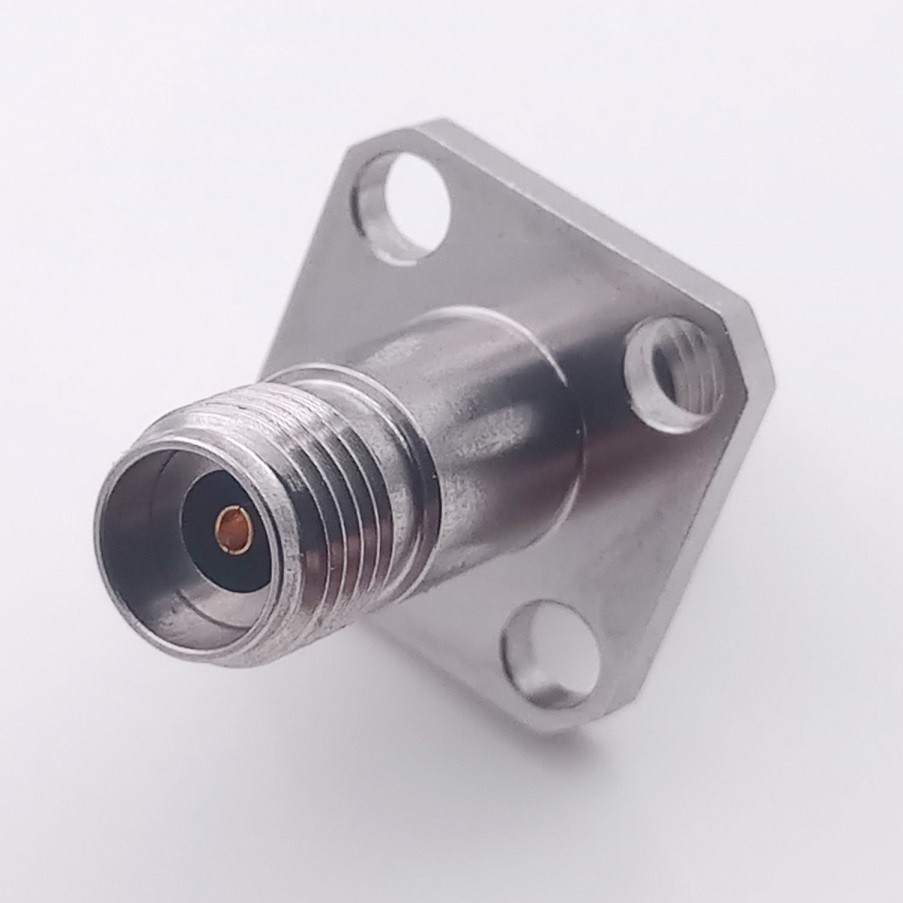

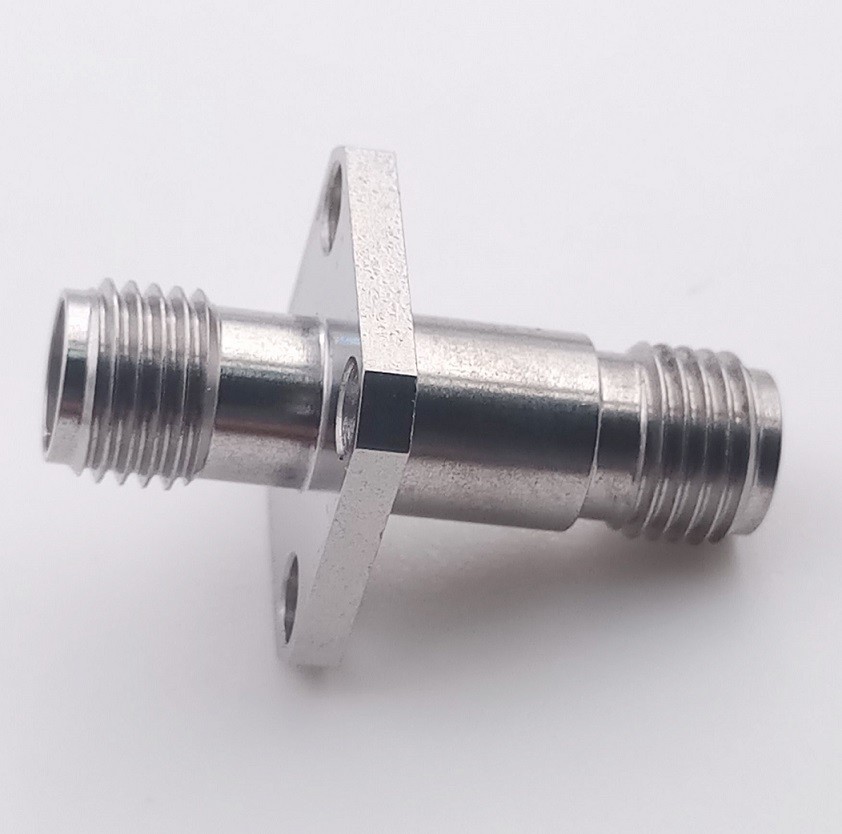

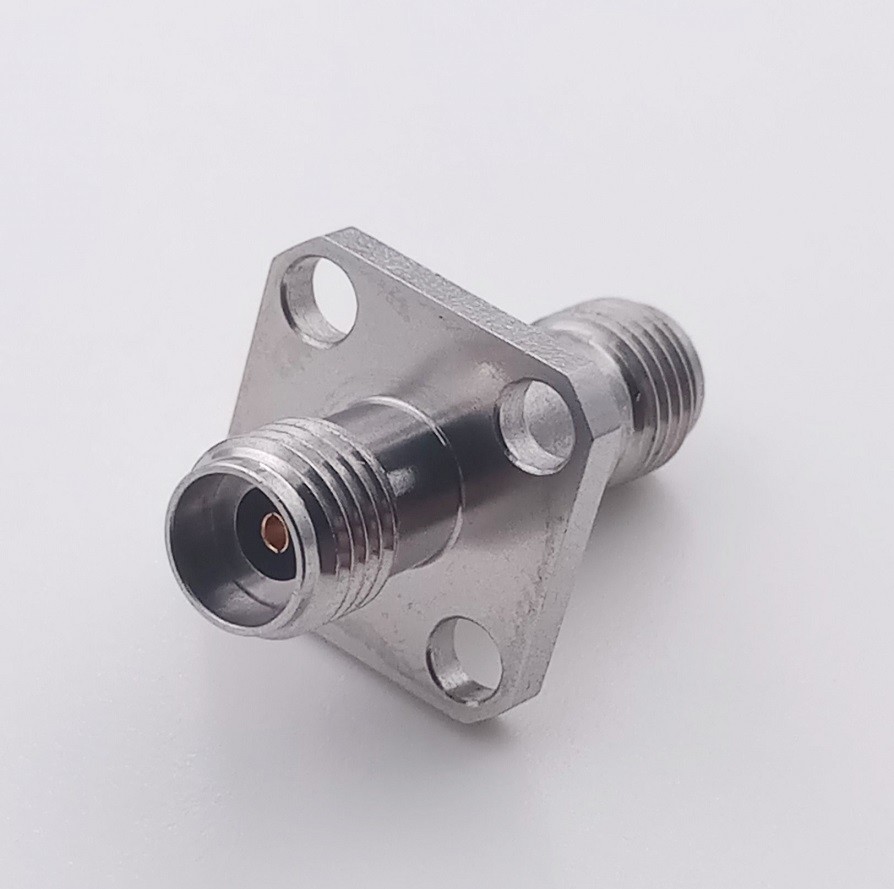

Straight 40Ghz Exterior Coaxial Cable Connectors 2.92mm Female To Female Adapter 4 Holes Flange

Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS
Model Number: 2.92/2.92-KFKG
Minimum Order Quantity: 500pcs
Price: USD 16.7 per pcs
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 10000 per 29 days
Match Interface: 2.92mm Gender: Female To Female Adapter
Structure: Straight 180° Plated: Gold/passivated
Frequency: DC 40GHz Size Customized: Standard
Impedance: 50 Ohms Salt Spray Test: 48 Hours
Life Cycle: 500 Cyles
High Light:

coaxial cable wire connector


rf connector n type

Products Name40Ghz 2.92mm female to female adapter with 4 holes flange


Products Descrption:

high performance End Launch connectors are designed to provide low VSWR, mode free wideband response to 40 GHz for single-layer and multi-layer printed circuit boards where the high frequency signal is on the top layer.
Male and female options along with narrow body and bulkhead feed-through. Robust, reusable and repairable. Multiple launch configurations provide the best possible match to circuit layout. Works on microstrip and grounded coplanar waveguide (GCPW) designs. Signal-layer microstrip and GCPW test boards available. Soldering the pin to the signal trace is optional.

Common Application:
we produce and supply for tester instrument, antenna, millimeter wave communication and high power application, radar,satellite communications as well as defense systems and aerospace programs.

  1. Charaterisitcs:


  1. Interface Standard: 2.92mm

  2. Type: Adapter

  3. Gender: Female to female adapter

  4. Impedance: 50 Ohms

  5. Structure: Straight 180°

  6. Mounting Type: 2.92mm female to 2.92mm female Adapter & Flange Mounting

Items Material Plating
Center Contact Beryllium copper Gold
Body Stainless steel Passivated
Insulator PEI N/A


Description Value
Frequency DC 40GHz
Impedance 50 Ohms
VSWR 1.3 @ 40GHz
Insulation Resistance > 5000 M ohms
Dielectric Withstanding Voltage 750V
Contact Resistance for center conductor < 3.0 m ohm
Contact Resistance for outer conductor < 2.0 m ohm
Life Cycle 500 cyles
Temperature Rated -50 C° to +125 C°


Function: It provides an excellent RF signal transmssion which is used in high performance or RF high power application.

Like, Military, testing instrument, Satellite Communication Equipment ,etc


Sinrui's Advantage and Quality warranty for RF Connectors


(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, shape, electric performance, mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.


R&D testing Corner:


Straight 40Ghz Exterior Coaxial Cable Connectors 2.92mm Female To Female Adapter 4 Holes Flange 1
