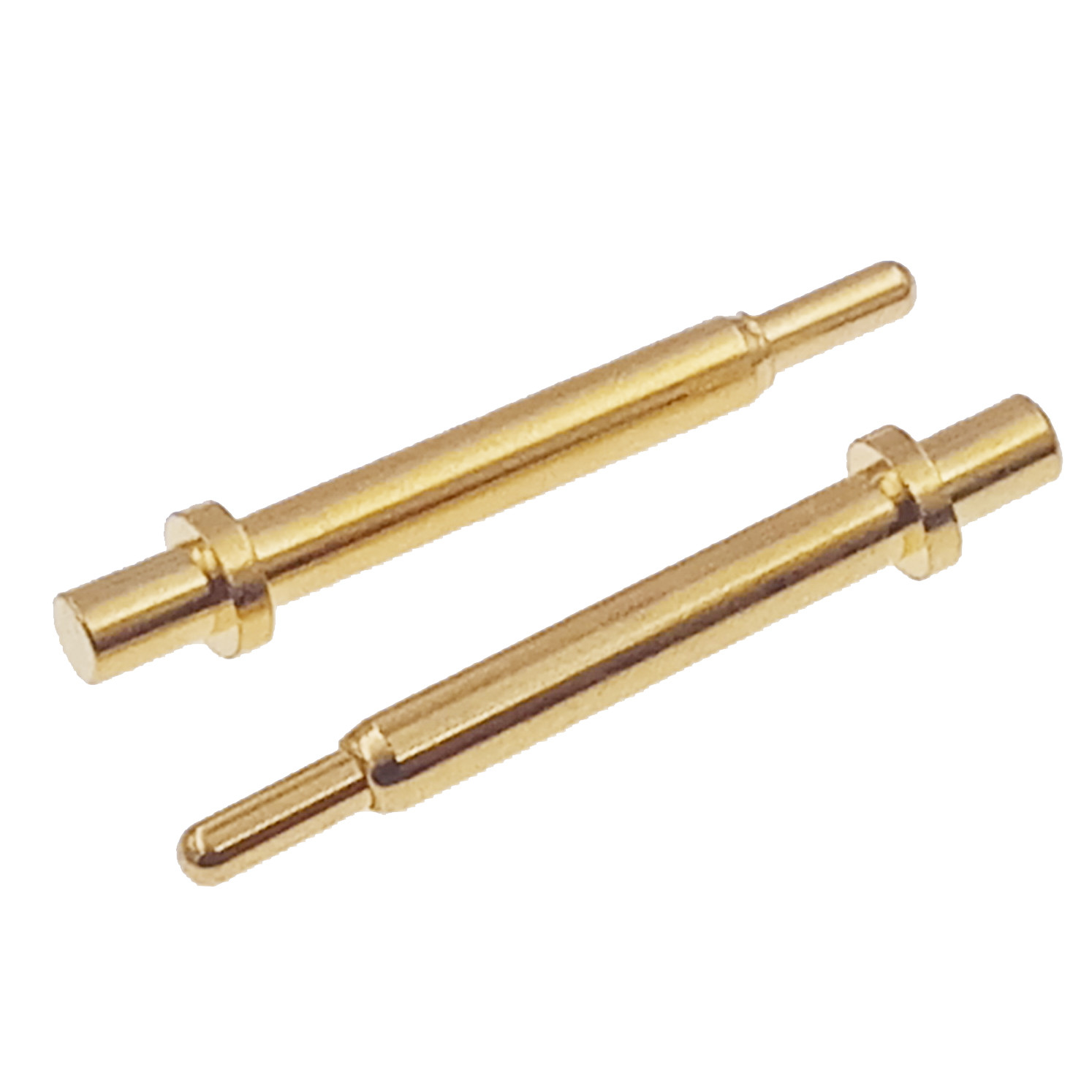

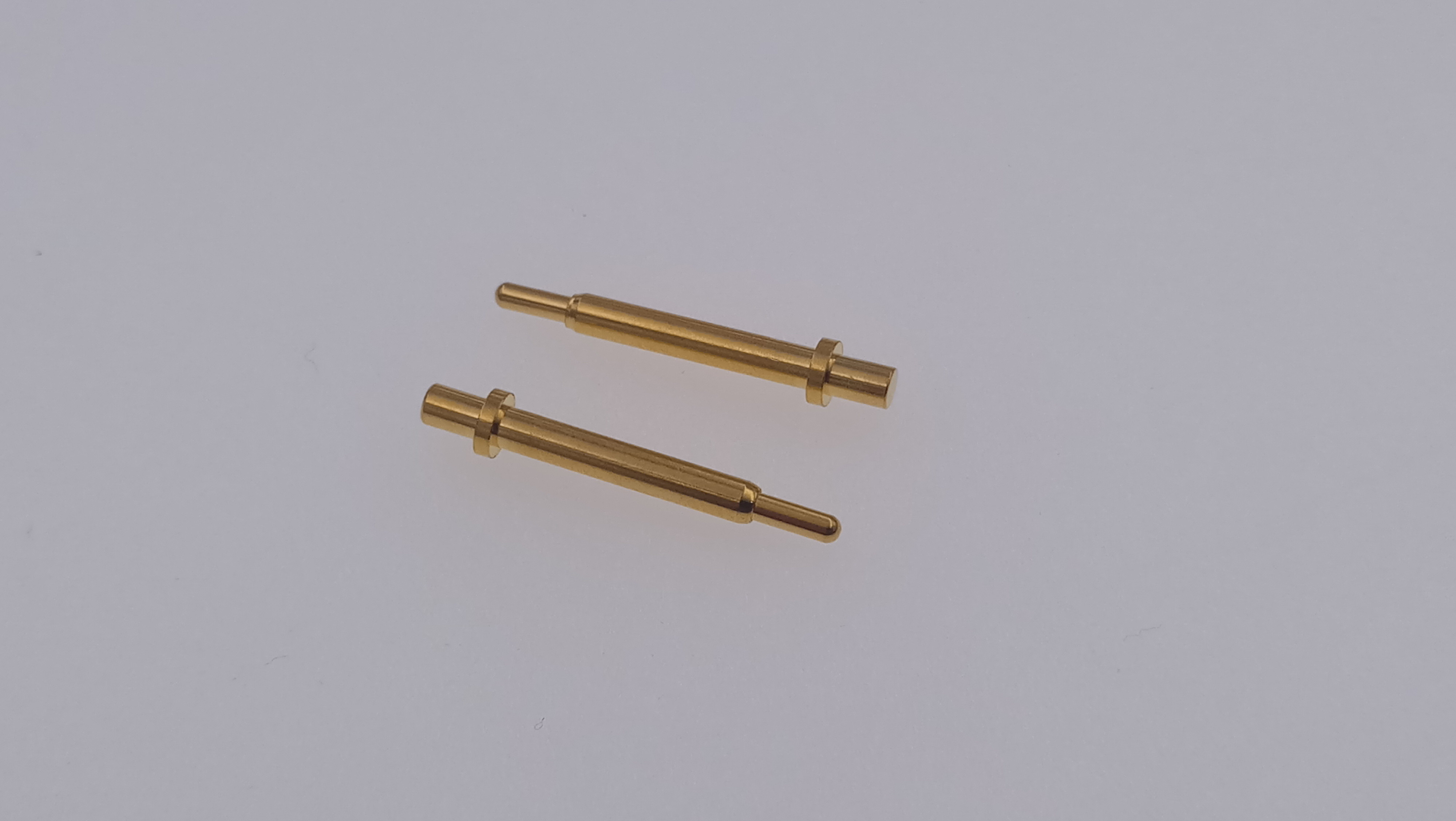

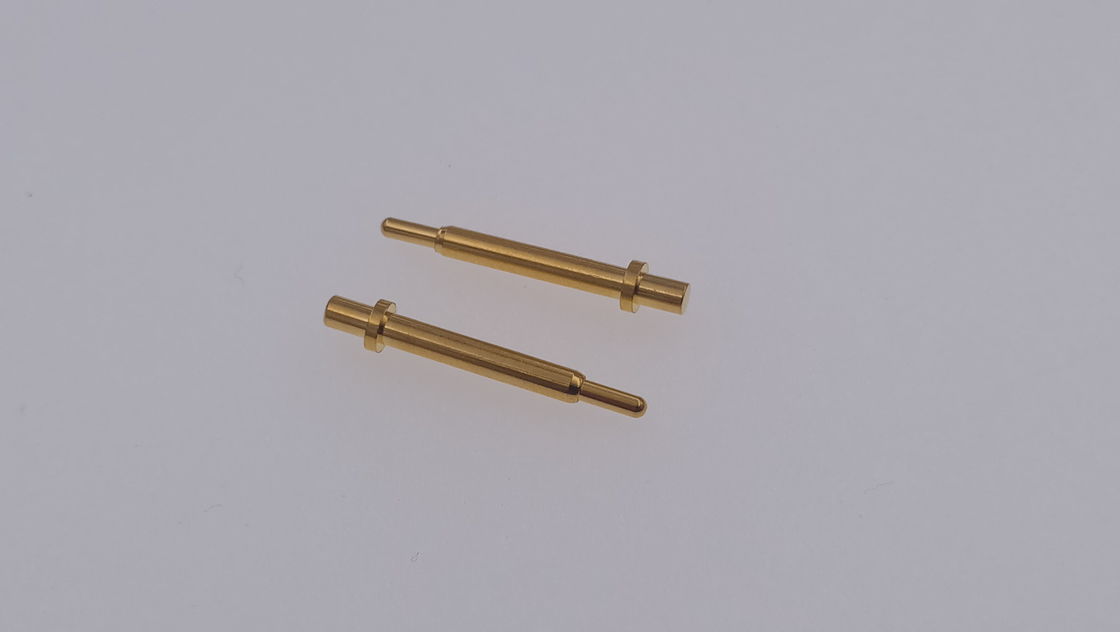

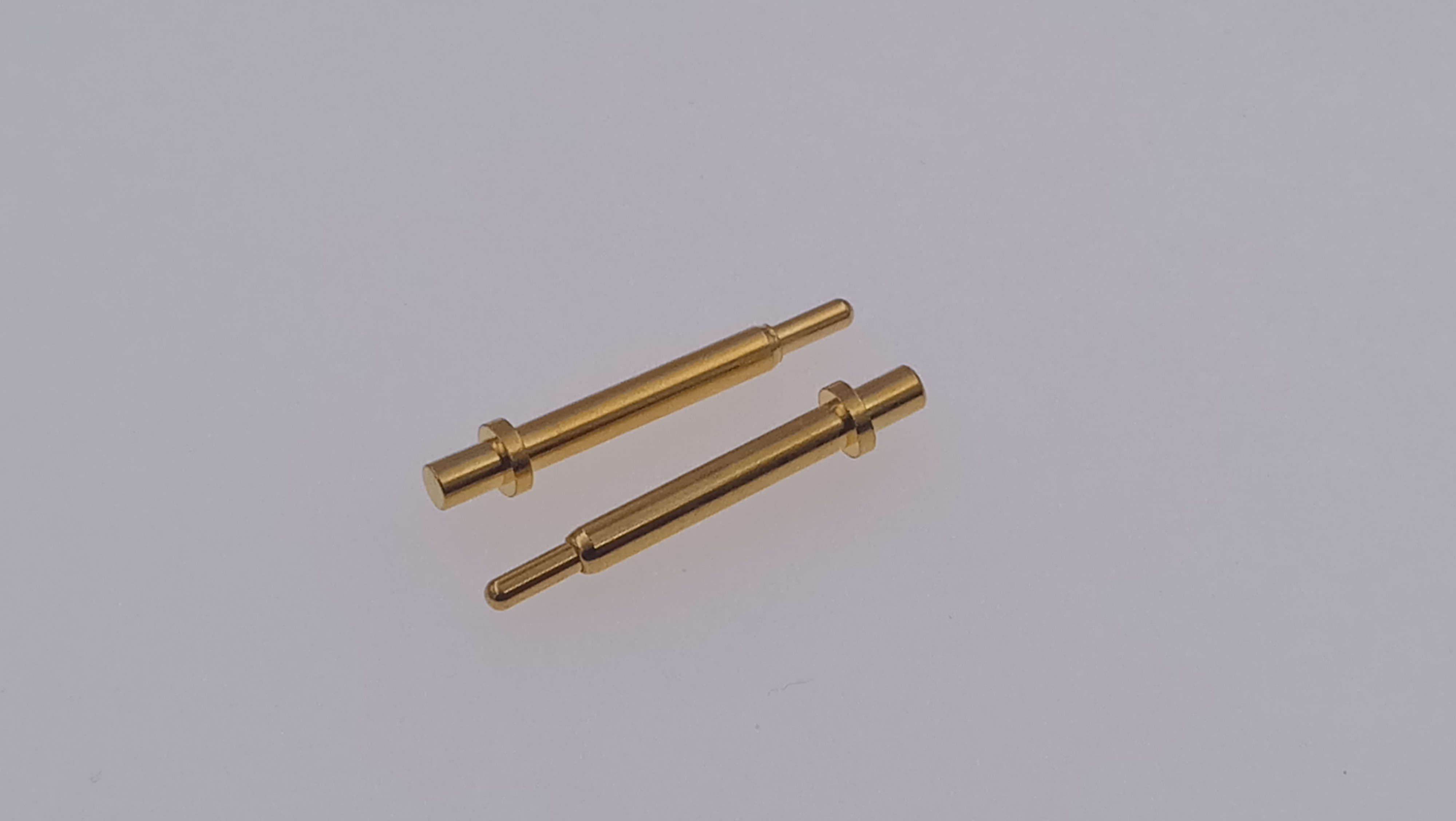

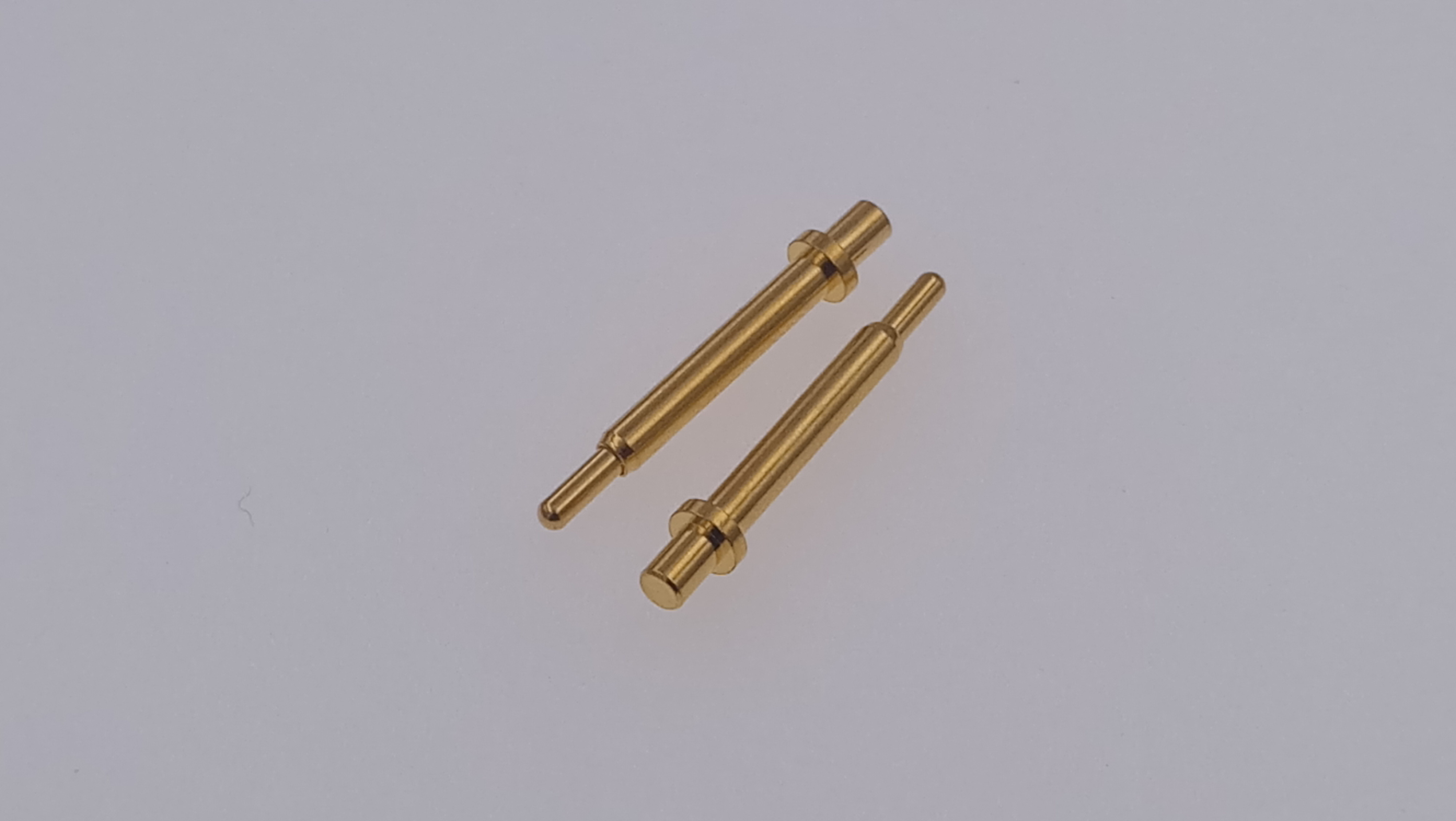

Stainless steel Straight DIP Magnetic Pogo Pin High Current

Stainless steel Straight DIP Magnetic Pogo Pin High Current
Stainless steel Straight DIP Magnetic Pogo Pin High Current Stainless steel Straight DIP Magnetic Pogo Pin High Current Stainless steel Straight DIP Magnetic Pogo Pin High Current Stainless steel Straight DIP Magnetic Pogo Pin High Current
Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS
Model Number: IPPRA-02
Minimum Order Quantity: 10000pcs
Price: Conact us
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 1000000pcs per 21 days
Contact Now
Name: Pogo Pin Contact Number: Pogo Pin
Gender: Male Usage: For Charging
Mounting: Straight Dip Package: Loose
Center Contact Plated: Brass, Gold Plate Life Cycle: 10000 Cycles
Spring: Stainless Steel
High Light:

SS Straight DIP Magnetic Pogo Pin

,

RoHS Magnetic Pogo Pin

,

10000 cycles Magnetic Pogo Pin

Stainless steel Straight DIP Magnetic Pogo Pin High Current


Products Descrption:

Pogo pins consisting of a plunger (or head), barrel (or body), and a fully encapsulated fine spring, to provide the spring force required to maintain positive contact. All have a high durability, exceeding 20,000 mating cycles.



Charaterisitcs:



Material:

  1. Product type:   pogo Pin,

  2. Mating interface: Pogo

  3. Mounting:  Straight DIP

  4. Matching: Mates with any contact surface, or Surface Mount Contact Pads

  5. Cores: 1 Pin

  6. Center Contact: Brass Plated Gold

  7. Spring: Stainless steel



Stainless Steel SS201,SS301, SS303, SS304, SS316, SS416 etc.
Steel mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# etc.
Brass HPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc.
Copper C11000,C12000,C12000 C36000 etc.
Aluminum AL6061, Al6063, AL6082, AL7075, AL5052, A380 etc.
Iron A36, 45#, 1213, 12L14, 1215 etc.
Plastic ABS, PC, PE, POM, Delrin, Nylon, Teflon, PP,PEI, Peek etc.



Specifcation





1. All Material RoHS

2. Rated Temperature : -45 to 85 Degree

3. Life Cycle:10000 cycles

4. Soldering TEMP: Max reflow soldering temperature 260°C  for 10 Seconds

5. Rated Current: 2A

6. Center Contact plated thickness : 0.4μ Gold over 1.4μ Nickel

7. Contact Resistance: 30m Ohms Max.

8. Salt Spray Test Hours: 48 Hours





Function: It provides an excellent electronics conduction, and power charging.



Sinrui's Advantage and Quality warranty for Circular Connectors



(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, contact numbers, shape,

mating interface, cable mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.



R&D testing Corner:



Stainless steel Straight DIP Magnetic Pogo Pin High Current 1
