Single Row PIN Header Connector Pitch 1.27mm 40 Pins Header Connector Right Angle DIP

Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS, ISO9001:2015
Model Number: SR-M15S40AS-XX
Minimum Order Quantity: 5000pcs
Price: USD 0.15 per pcs
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 500000 per 14 days
Pitch: 1.27mm Pin Numbers: 40Pins
Row: Single Row Post Height: 2.6mm
Plastics Height: 1.5mm Solder Feet: 2.0mm
Pin Material: Brass Plastics Material: PA6T
Rated Current: 1.0Amp Rated Voltage: 300V AC / 1 Min,
High Light:

1.27 mm pitch header


arduino male header pins

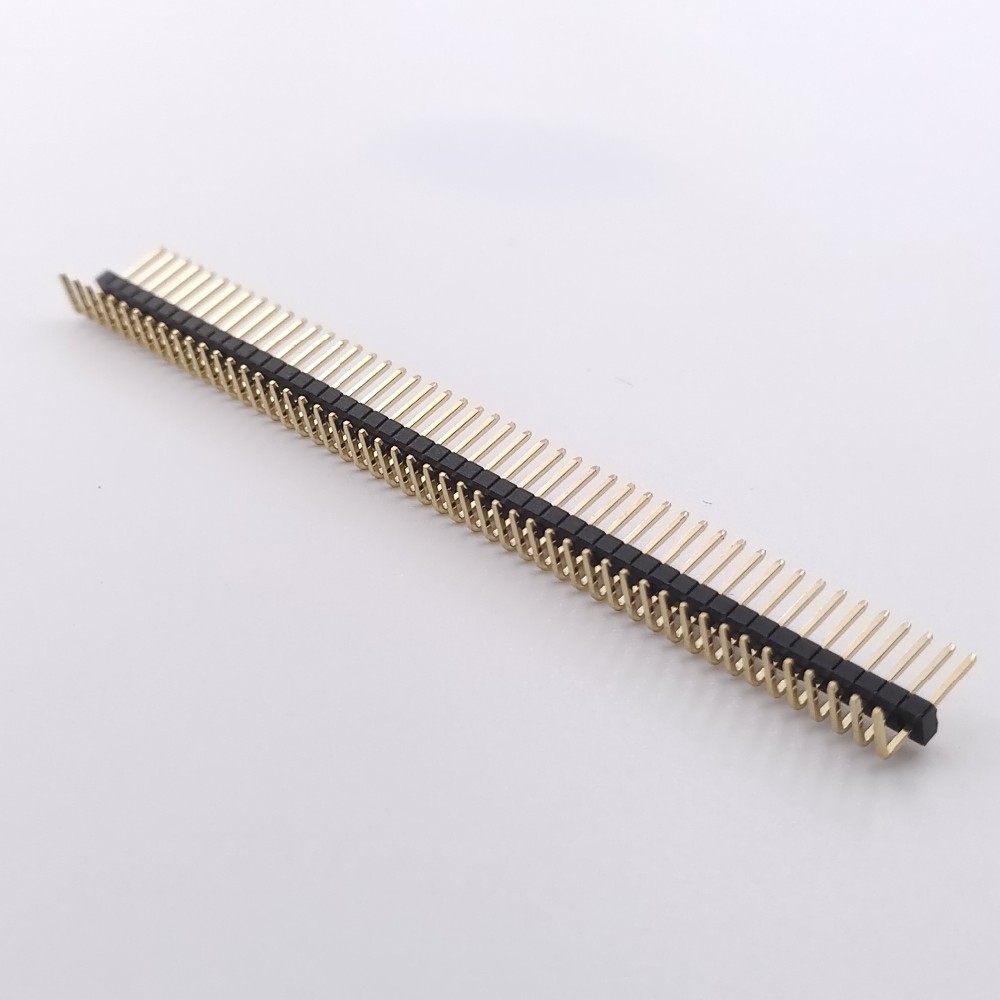

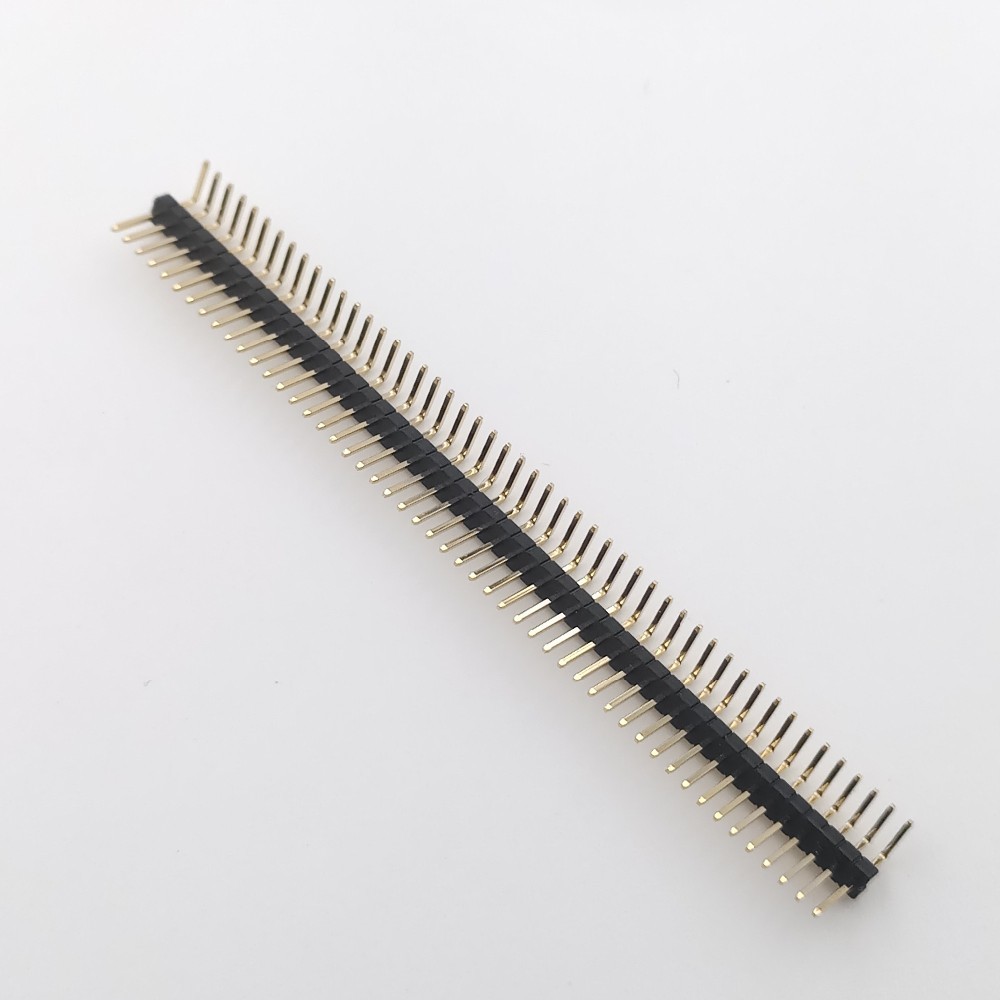

Products Name: Pitch 1.27mm Pin header connector single row 40 Pins Right Angle DIP for PCB Mounting


Products Descrption:

this Pin Header is with pitch 1.27mm, single row with 40 pin numbers. with a specified pin length and 0.4mm square pins that it can afford an 1AMP of current transmission. It usually match with a same pitch and pin number of Female Header so as to form as board to board connection, or match with a wire haress forming as wire to board connection, or it can directly soldered in two PCBs.


Its pitch, pin number, mounting type, length can be customized according to customer application, like:

Pitch can be optional as 0.8mm,1.0mm, 1.27mm, 2.0mm, 2.54mm,3.96mm,etc.

And it can be  single row, dual row or triple row.

Mounting type can be customized to be SMT(vertical or side entry), DIP throught PCB(vertial or side entry).


Common Application:

we produce and supply in hugh volumn for consuming electronics of consumer catagory, Telecommunication, industrial control, meters, medical, aviation and millitary.

Items Material Plating
Contact Brass Gold
Insulator UL94V-0 PA6T + 30%GT N/A


Description Value
Type Board to Board Connector
Gender Male Header
Structure Right angle 90°
Mounting type Right Angle DIP for PCB Mounting
Current rated 1 Amp per contact
Voltage Rated 300V AC/ min.
Contact Resistance < 20m ohm per contact
Insulation resistance > 1000m ohm
Withstanding Voltage 500V DC/AC
Temperature Operation -45 C° to +105 C°
Processing(Soldering) Temperature

230C° for 30~60 seconds,

(260C° for 5 seconds)





Function: It provides an electric current connection between board to board or board to wires.
