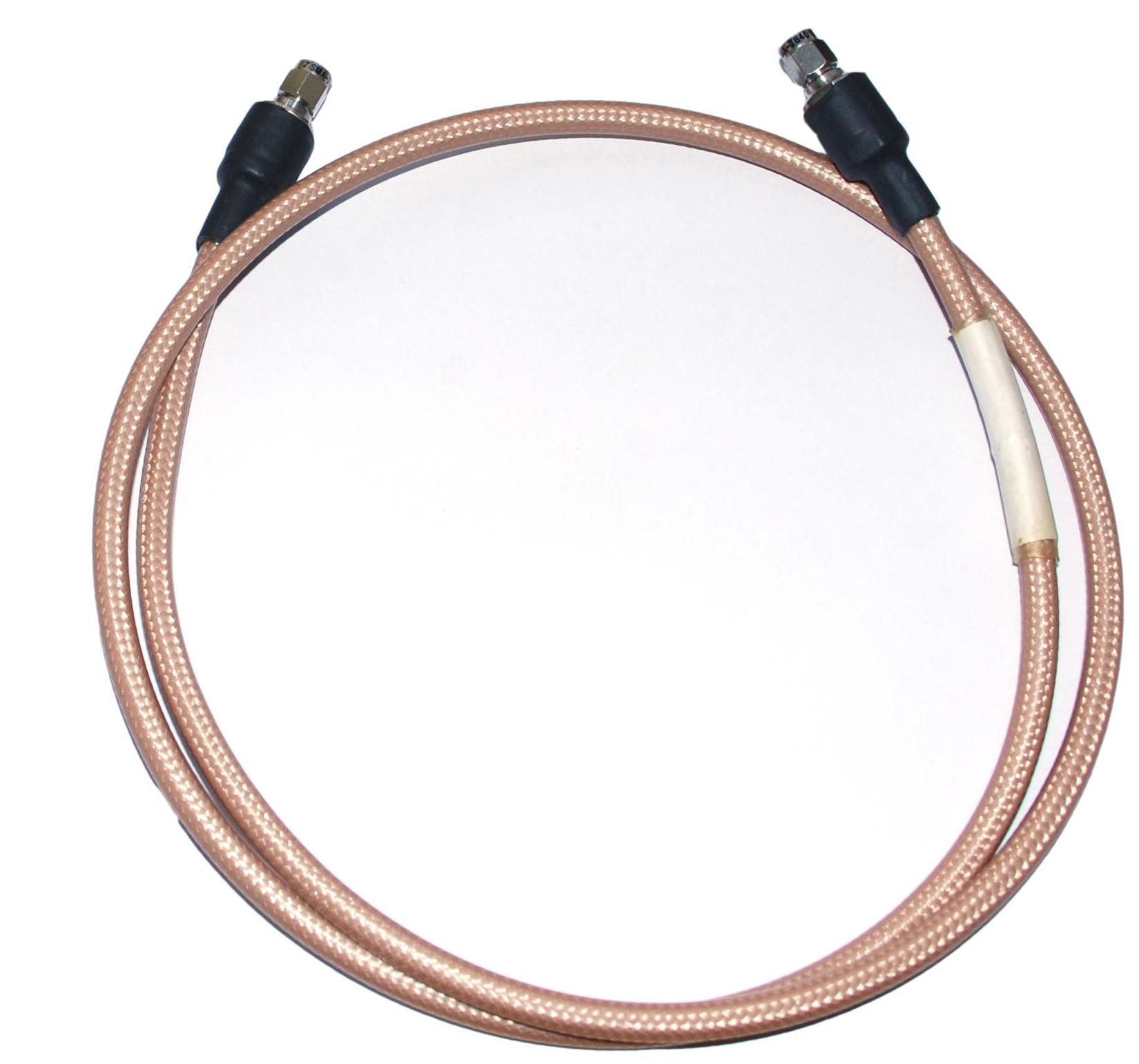

RG401 Cables RF Coaxial Cable Assembly Straight Male To Male RF SMA Connector

Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS, ISO9001:2015
Model Number: SMA-JB401/SMA-JB401
Minimum Order Quantity: 500pcs
Price: please contact us
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 10000 pcs per 28 days
Connector 1: SMA Gender: Male
Structure: Straight Connector 2: SMA
Cable: RG401 Or Customized Cable Length: 1000mm Or Customized
Size Customized: Can Be Customized Impedance: 50 Ohms
High Light:

coaxial cable assemblies


semi rigid cable assemblies

Products Name: SMA straight male to SMA straight male RF Cable assembly with RG401 cables


RF Cable Assembly introduction:

RF cable assembly are usually formed by a coaxial cables whose two ends assembled with RF Connectors. RF cable assembly can perfectly transmit RF signal and power. RF Cable Assembly is an critical part of transmission system, its perfermance will affect transmission quality greatly. the performance of RF Cable assembly is not only based on RF connectors and Coaxial cables, but also its assembly technique and procedures are critical. A lot of RF cable assembly is not qualified due to unqualified assembly between connectors and cables. Thus, customers shall directly purchase RF cable assembly from a professional manufacutrer in priority.


And We, Sinrui Technology is a strong manufacturer in RF Fields for more than 15 years, that our experience, skills, engineers, machines can afford you a high quality of RF Cable Assembly



Common Application:

It is used in alll kinds of signal sender, modules, antenna, transmitter,receiver, make sure the signal among them are transmitted currectly, in good quality, high efficiently and in low lost,




  1. Interface Standard: SMA-JB401 to SMB-JB401

  2. Type: Cable asssembly

  3. Gender: Male to Male

  4. Impedance: 50 Ohms

  5. Cable Type: RG401


Parts Items Material Plating(or size)
SMA Body Brass Gold
Center Contact Brass Gold
Insulator PTFE
Cable RG 401 copper plated silver wire  620mm long or customized


Description Value
Frequency DC 8.5GHz
Impedance 50 Ohms
VSWR 1.5
Life Cycle Standard
Temperature Rated -40 C° to +165 C°


Function: It provide a signal transmission bridge among devices.


Sinrui's Advantage and Quality warranty for RF Cable Assembly

RG401 Cables RF Coaxial Cable Assembly  Straight Male To Male RF SMA Connector 0


(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, shape, electric performance, mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.


RG401 Cables RF Coaxial Cable Assembly  Straight Male To Male RF SMA Connector 1
R&D testing Corner
