Place of Origin: | China |
---|---|
Brand Name: | Sinrui |
Certification: | RoHS |
Model Number: | SR-C15LMS01-001/SR-C15LFS01-001 |
Minimum Order Quantity: | 500pcs |
Price: | 1.70 USD per PCS |
Packaging Details: | export standard packing |
Delivery Time: | L/C, T/T |
Payment Terms: | T/T |
Supply Ability: | 10000pcs per 21 days |
Name: | M16 Circular Connectors | Contact Number: | 1 Cores |
---|---|---|---|
Gender: | Female And Male | Interface Mating: | M15 Screw Thread |
Mounting: | For Cables | Waterproof Level: | IP68 |
Body Material: | PA66 | Center Contact Plated: | Gold Plated |
Cable Spec: | Can Be Specified | Life Cycle: | 500 Cyles |
High Light: | circular cable connectors,circular pin connector |

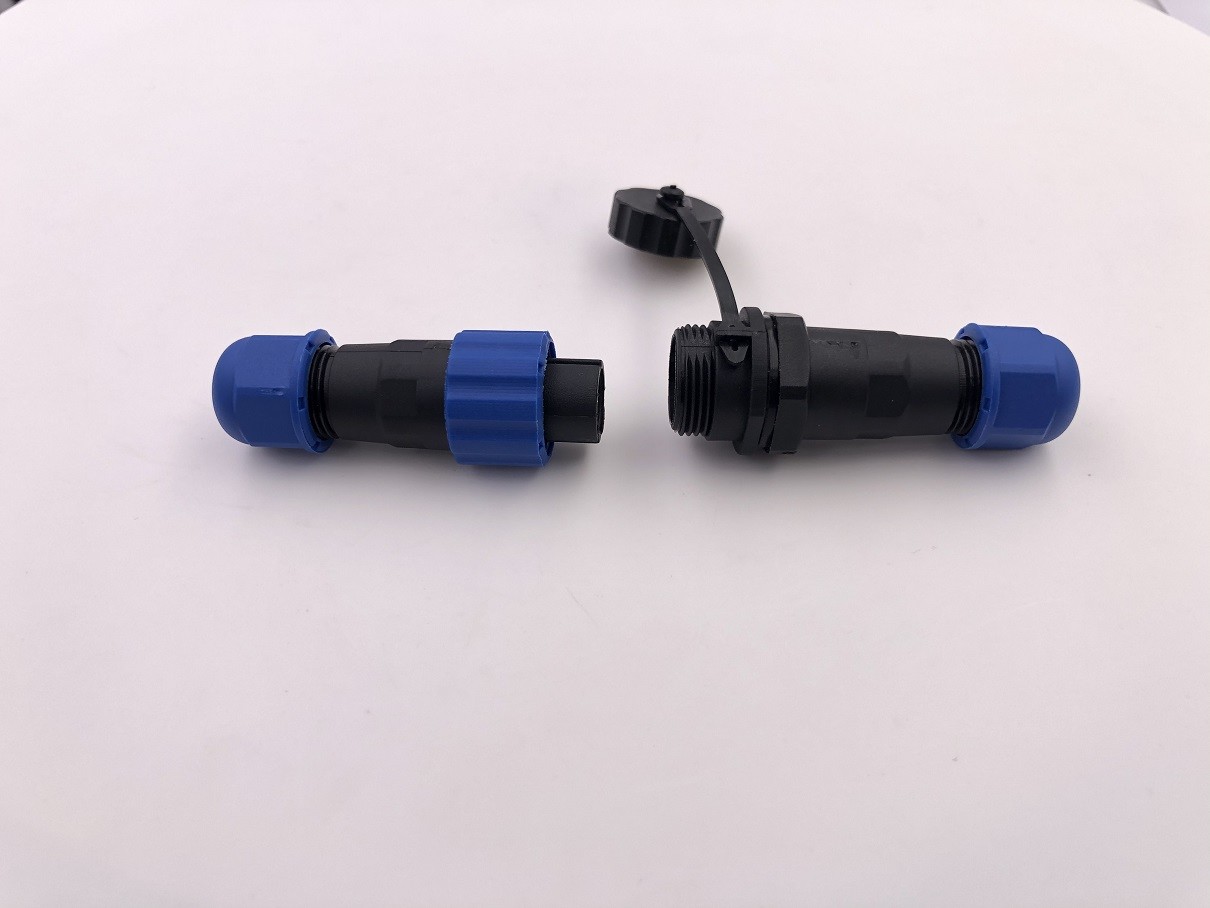

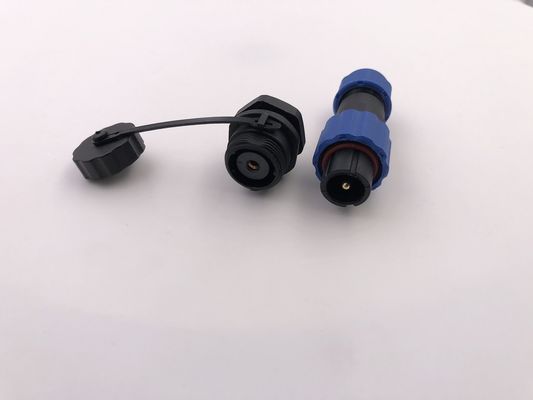

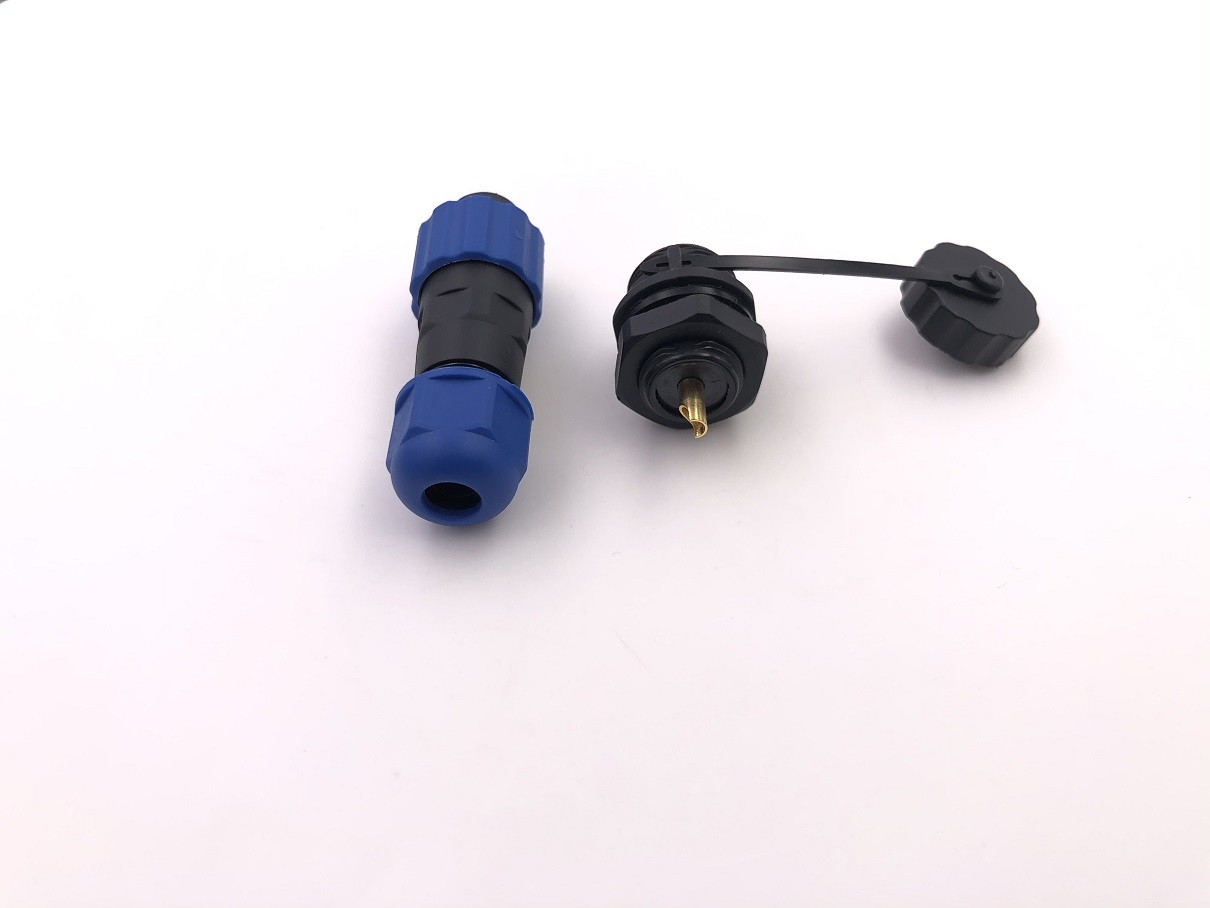

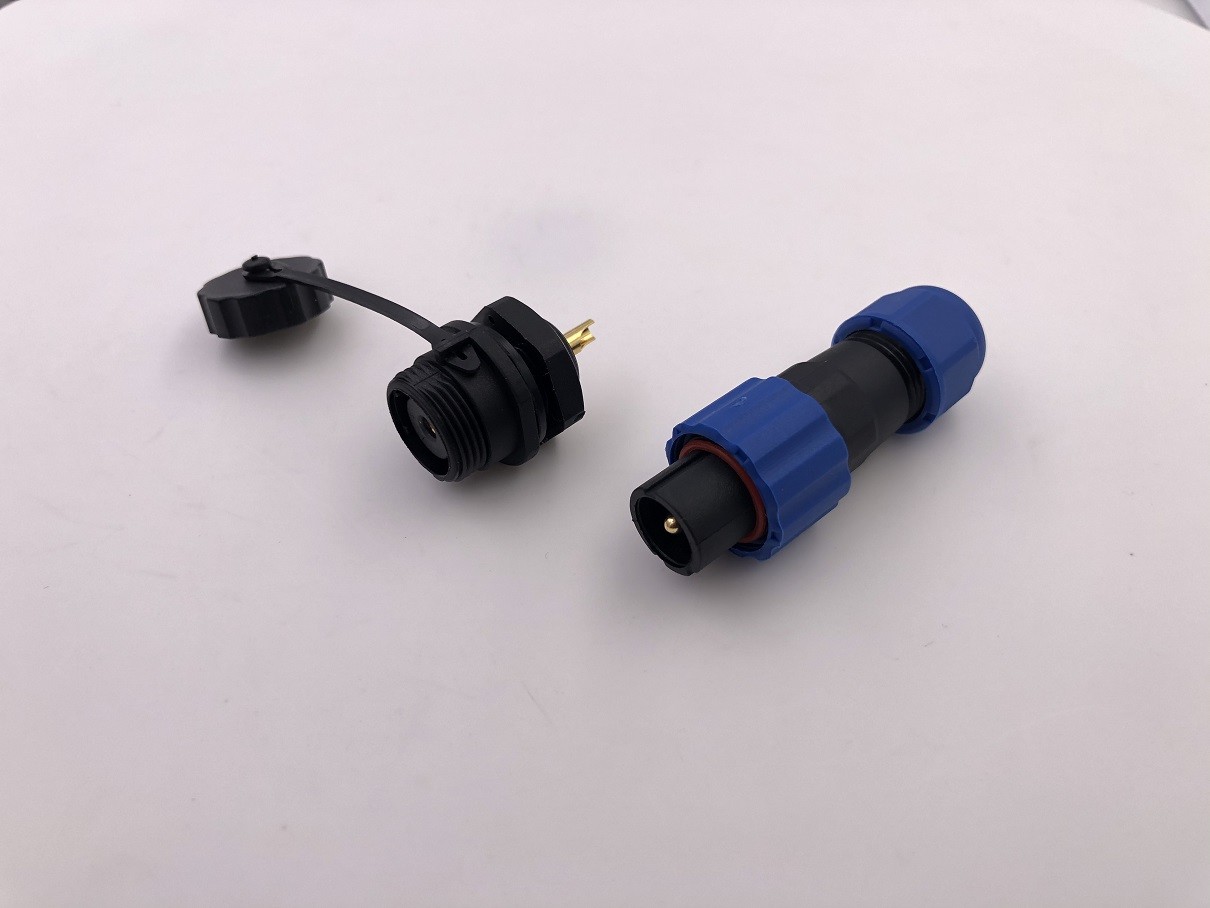

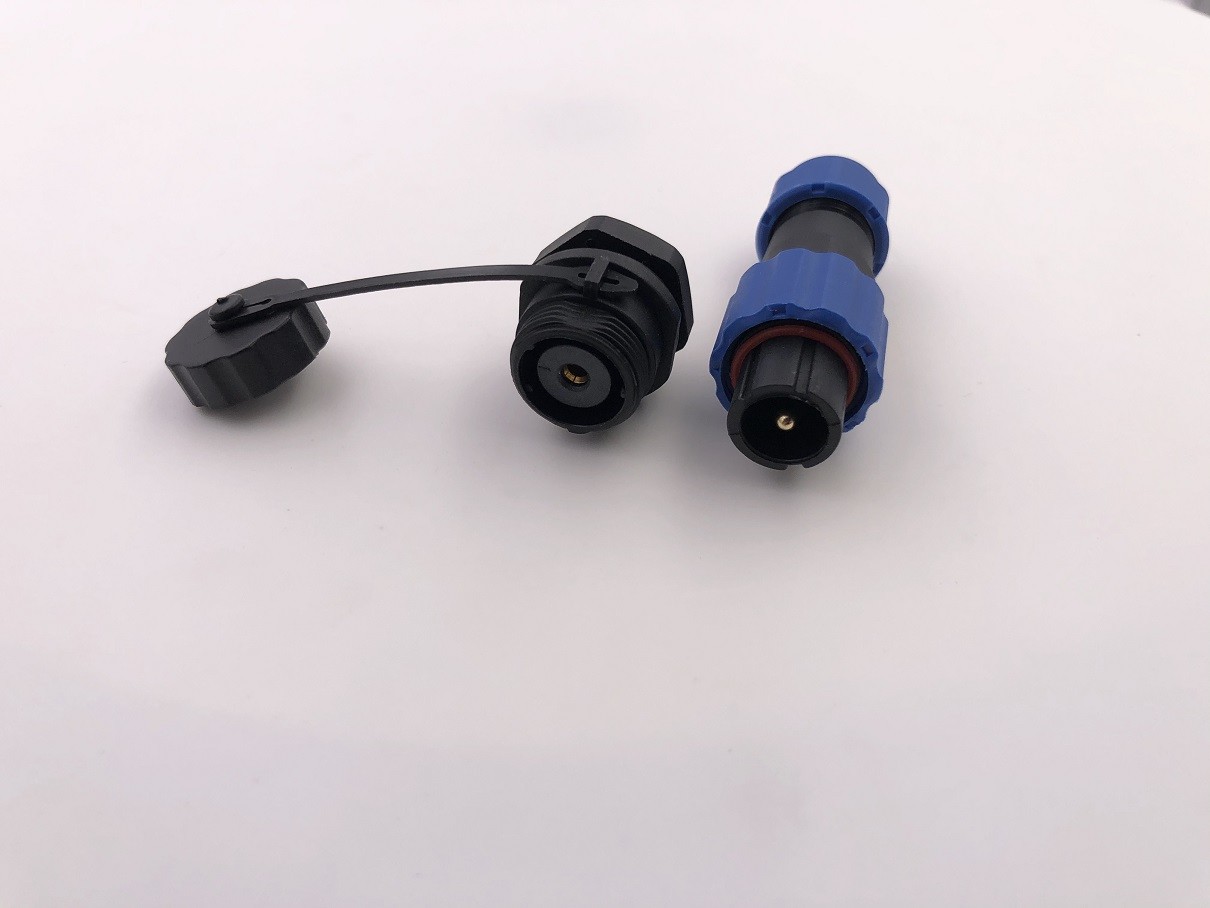

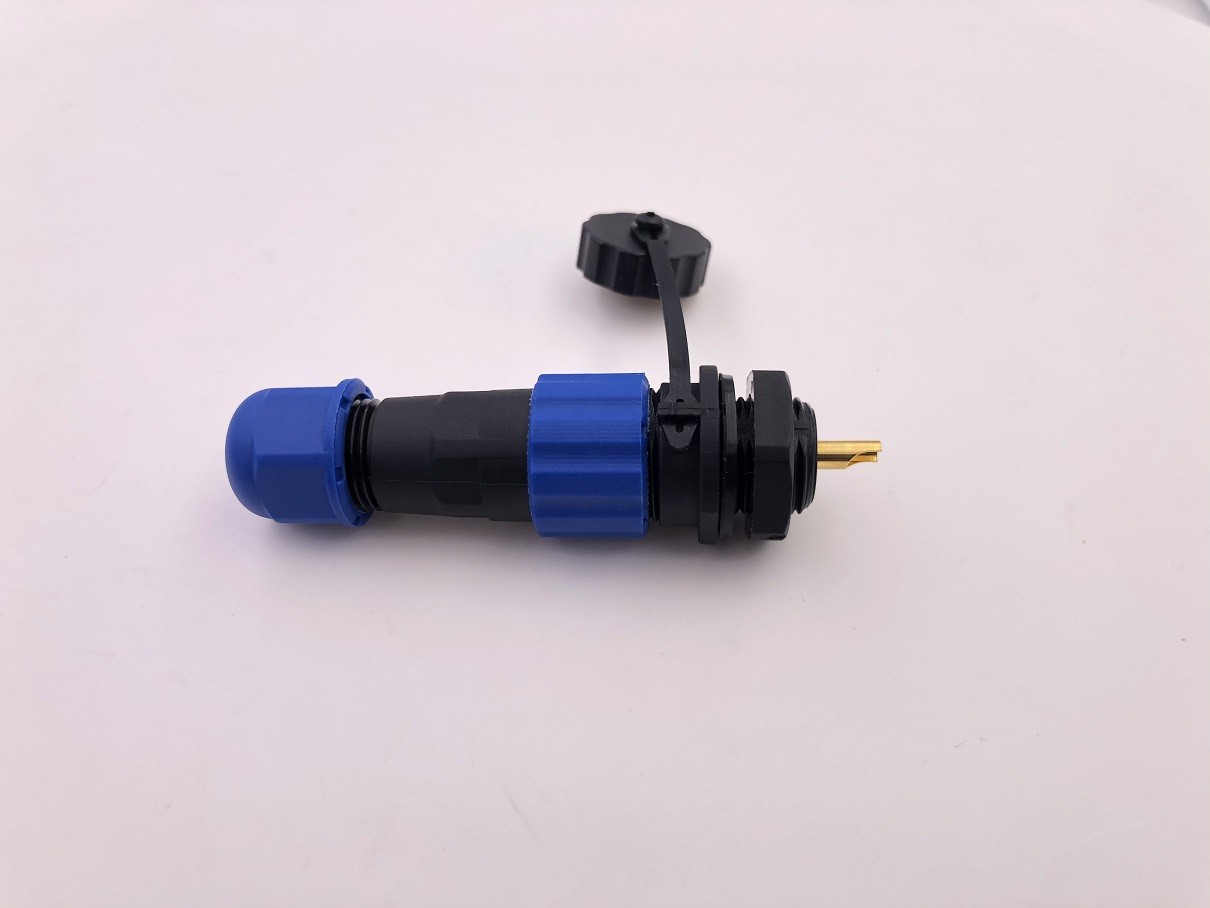

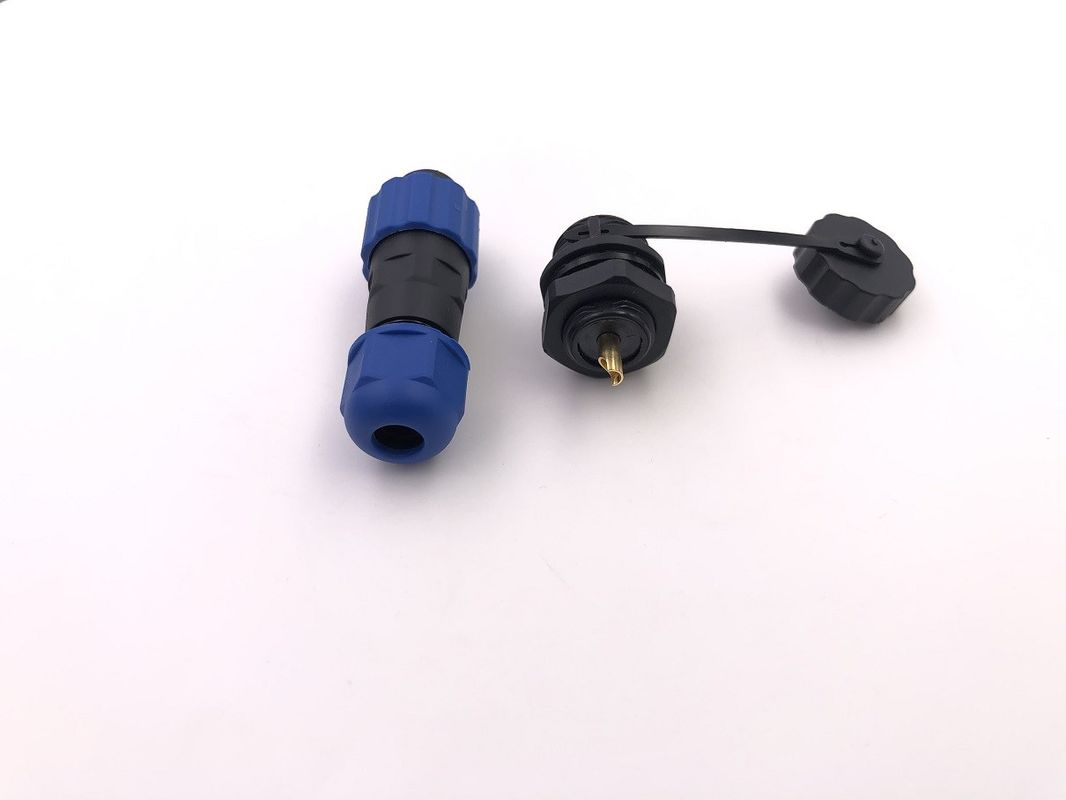

Products Name: waterproof IP68 M15 Circular single core female and male socket connectors Mounting with cables
Products Descrption:
It is an over IP68 level connectors with interface M15 screwthread that it is in mass production, and we supply it as power supply connectors in electric
scooeter, drone which is working under the sea over 50 meters deep, as well as industrial control devices.
Charaterisitcs:
Material:
Product type:wire to wire connectors,
Mating interface: M15, cicurlar screw thread
Mounting: with cables, by soldering, clamping.
Cores:1 cores (can be customized for more cores)
Center Contact: Beryllium bronze, plated Gold
Body: PA66,
Insulator: PPS
Seal: Rubber
Tail Nut: PA
Specifcation | ||
Item | Description | Value |
1 | All Material RoHS | Compliant |
2 | Waterproof Level |
IP68 |
3 | Rated Temperature | -25 to 85 Degree |
4 | Life Cycle | 500 cycles |
5 | Rated Voltage | 380V |
6 | Rated Current | 25A |
7 |
Center Contact plated thickness |
3U Gold |
8 | Contact Resistance | 2m Ohms Max. |
9 | Salt Spray Test Hours | 48 Hours |
Function: It provides an excellent electronics conduction, and power charging, meanwhile it can bring you good dust and waterproof.
Sinrui's Advantage and Quality warranty for Circular Connectors |
(ODM and OEM) Afford Customized design service: products can be customized according to customer's products usage, including size, contact numbers, shape, mating interface, cable mounting method, etc. If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.
