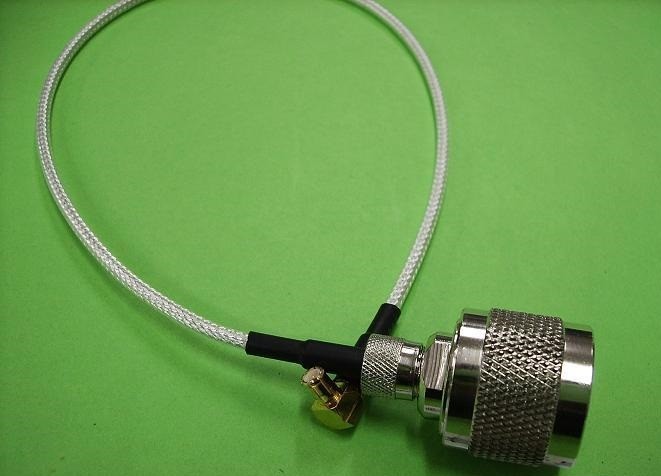

Modules Semi Rigid Cable Assemblies N Straight Male To MCX Male Right Angle Connector

Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS, ISO9001:2015
Model Number: N-JB2/MCX-JWB2
Minimum Order Quantity: 500pcs
Price: please contact us
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 10000 pcs per 28 days
Connector 1: N Gender 1: Male
Structure 1: Straight Connector 2: MCX
Gender 2: Male Structure 2: Right Angle
Cable: Semi-rigid Cable Or Customized Cable Length: 150mm Or Customized
Size Customized: Can Be Customized Impedance: 50 Ohms
High Light:

sma cable assembly


semi rigid cable assemblies

Products Name: RF Cable assembly N Straight male to MCX right angle male with semi-rigid cable


RF Cable Assembly introduction:

RF cable assembly are usually formed by a coaxial cables whose two ends assembled with RF Connectors. RF cable assembly can perfectly transmit RF signal and power. RF Cable Assembly is an critical part of transmission system, its perfermance will affect transmission quality greatly. the performance of RF Cable assembly is not only based on RF connectors and Coaxial cables, but also its assembly technique and procedures are critical. A lot of RF cable assembly is not qualified due to unqualified assembly between connectors and cables. Thus, customers shall directly purchase RF cable assembly from a professional manufacutrer in priority.


And We, Sinrui Technology is a strong manufacturer in RF Fields for more than 15 years, that our experience, skills, engineers, machines can afford you a high quality of RF Cable Assembly



Common Application:

It is used in alll kinds of signal sender, modules, antenna, transmitter,receiver, make sure the signal among them are transmitted currectly, in good quality, high efficiently and in low lost,




  1. Interface Standard: N-JB2 to MCX-JWB2

  2. Type: Cable asssembly

  3. Gender: Male to Male

  4. Impedance: 50 Ohms

  5. Cable Type: semi-rigid cable


Parts Items Material Plating(or size)
N Body Brass Nickel
Center Contact Phosphor bronze Gold
Insulator PTFE
MCX Body Brass Gold
Center Contact Brass Gold
Insulator PTFE
Cable Semi-rigid cable copper plated silver wire  150mm long or customized


Description Value
Frequency DC 6GHz
Impedance 50 Ohms
VSWR 1.3
Life Cycle Standard
Temperature Rated -40 C° to +155 C°


Function: It provide a signal transmission bridge among devices.


Sinrui's Advantage and Quality warranty for RF Cable Assembly

Modules Semi Rigid Cable Assemblies N Straight Male To MCX Male Right Angle Connector 0


(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, shape, electric performance, mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.


Modules Semi Rigid Cable Assemblies N Straight Male To MCX Male Right Angle Connector 1
R&D testing Corner
