Name: | Pogo Pin | Contact Number: | Pogo Pin |
---|---|---|---|
Gender: | Male | Usage: | For Charging |
Mounting: | SMT | Package: | Loose Or Tape & Reel |
Center Contact Plated: | Brass, Gold Plate | Life Cycle: | 10000 Cycles |
Spring: | Stainless Steel | ||
High Light: | pogo pin connector,high current pogo pins |

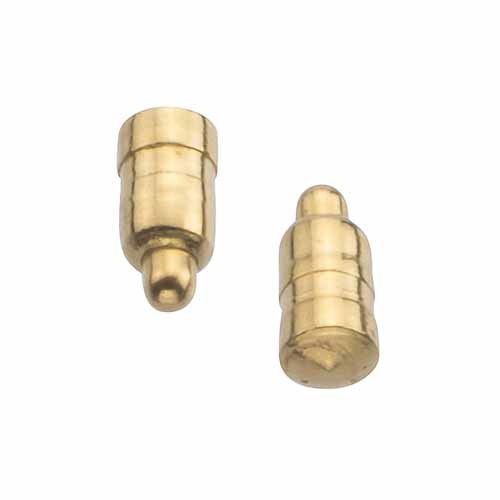

Products Name: 0.4μ Gold over 1.4μ Nickel plated Spring Loaded Contact, SMT Pogo Pin connector
Products Descrption:
Pogo pins consisting of a plunger (or head), barrel (or body), and a fully encapsulated fine spring, to provide the spring force required to maintain positive contact. All have a high durability, exceeding 20,000 mating cycles.
Charaterisitcs:
Material:
Product type: pogo Pin,
Mating interface: Pogo
Mounting: SMT
Matching: Mates with any contact surface, or Surface Mount Contact Pads
Cores: 1 Pin (can be customized for more cores)
Center Contact: Brass Plated Gold
Spring: Stainless steel
Specifcation | ||
Item | Description | Value |
1 | All Material RoHS | Compliant |
2 | PItch | N/A |
3 | Rated Temperature | -45 to 85 Degree |
4 | Life Cycle | 10000 cycles |
5 | Soldering TEMP | Max reflow Solder Temperature: 260°C for 10 seconds |
6 | Rated Current | 2A |
7 |
Center Contact plated thickness |
Gold |
8 | Contact Resistance | 30m Ohms Max. |
9 | Salt Spray Test Hours | 48 Hours |
Function: It provides an excellent electronics conduction, and power charging.
Sinrui's Advantage and Quality warranty for Circular Connectors |
(ODM and OEM) Afford Customized design service: products can be customized according to customer's products usage, including size, contact numbers, shape, mating interface, cable mounting method, etc. If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.
