M15 Industrial Circular Connectors Three Pin Female Socket RoHS Certification

Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS
Model Number: SR-C15LFS03-001
Minimum Order Quantity: 1000pcs
Price: USD 1.7 per pcs
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 10000pcs per 21 days
Name: M15 Circular Connectors Contact Number: 3 Cores
Gender: Female Socket Interface Mating: M15 Screw Thread
Mounting: For Cables Waterproof Level: IP68, Up To 100 Meters Underwater
Body Material: PA66 Center Contact Plated: Gold Plated 3U
Cable Spec: Can Be Specified Life Cycle: 500 Cyles
High Light:

circular plastic connectors


circular pin connector

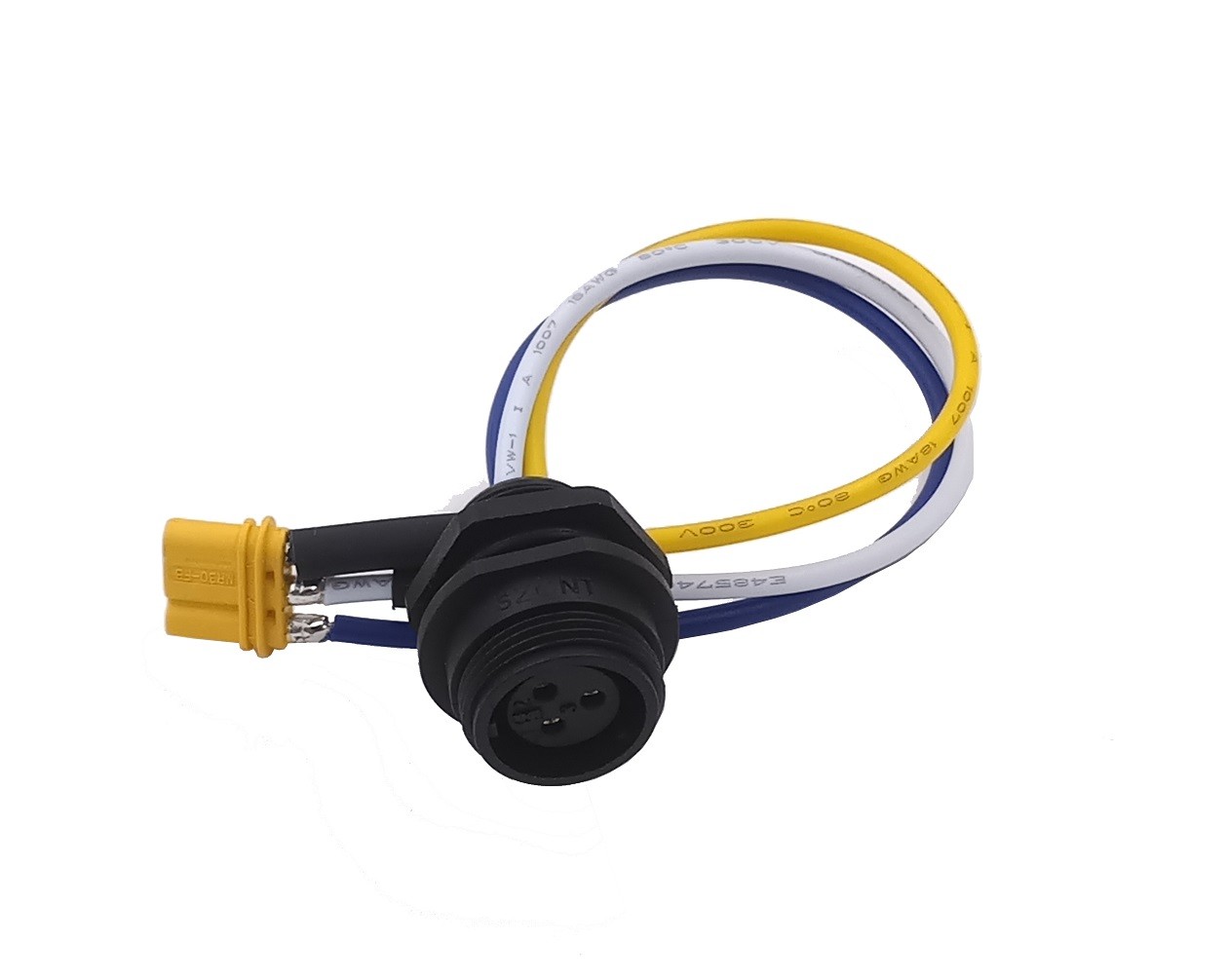

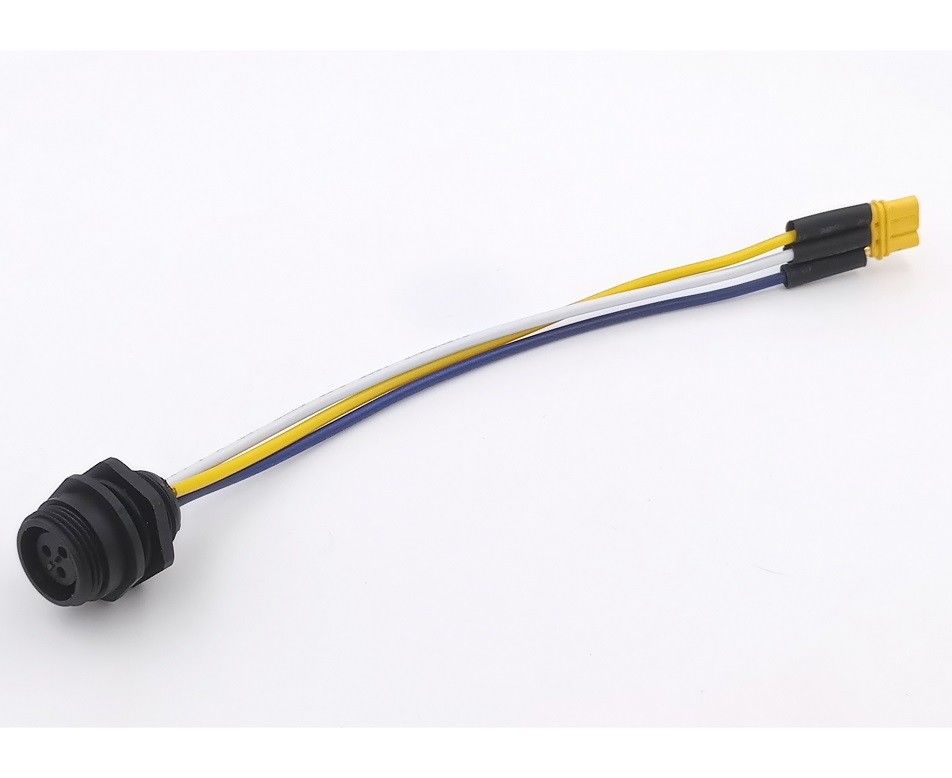

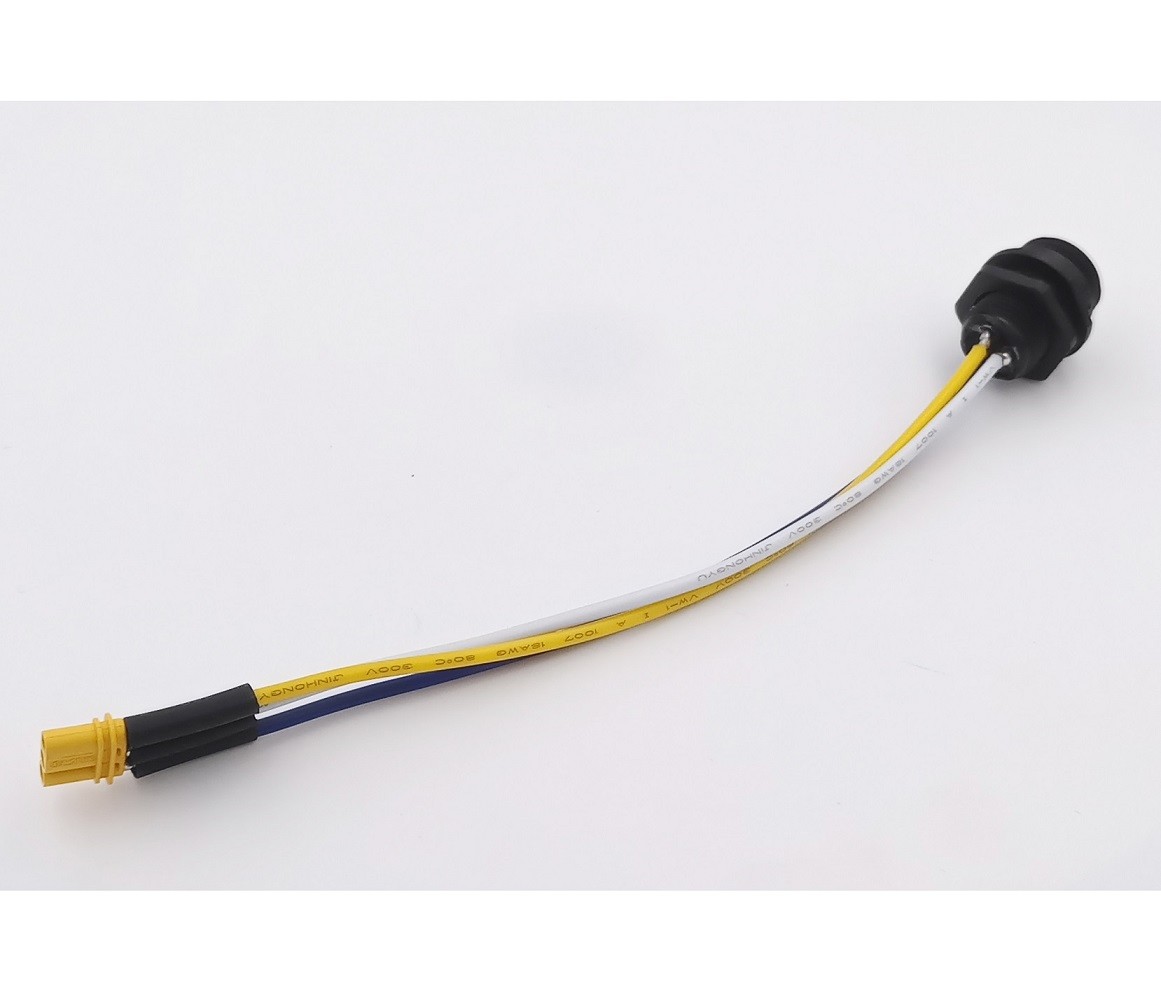

Products Name: M15 Circular waterproof female socket connectors 3 Cores with cables

Products Descrption:

It is an over IP68 level connectors with interface M15 screwthread that it is in mass production, and we supply it as power supply connectors in electric

scooeter, drone which is working under the sea over 50 meters deep, as well as industrial control devices.





  1. Product type:wire to wire connectors,

  2. Mating interface: M15, cicurlar screw thread

  3. Mounting: with cables, by soldering, clamping.

  4. Cores:3 cores (can be customized for more cores)

  8. Center Contact: Phosphor bronze, plated Gold


    Body: PA66

    Insulator: PPS

    Seal: Rubber

    Tail Nut: PA


Item Description Value
1 All Material RoHS Compliant
2 Waterproof Level

Over IP68

(Can work under the sea 80 meters)

3 Rated Temperature -40 to 85 Degree
4 Life Cycle 500 cycles
5 Rated Voltage 250V / AC
6 Rated Current 13A

Center Contact

plated thickness

3U Gold
8 Contact Resistance 2m Ohms Max.
9 Salt Spray Test Hours 200 Hours



M15 Industrial Circular Connectors  Three Pin Female Socket RoHS Certification 0




Application: vehicle, oir, aviation, equipment, intelligent robot under the sea,etc.


Function: It provides an excellent electronics conduction, and power charging, meanwhile it can bring you good dust and waterproof.


Sinrui's Advantage and Quality warranty for Circular Connectors


(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, contact numbers, shape,

mating interface, cable mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.


R&D testing Corner:


M15 Industrial Circular Connectors  Three Pin Female Socket RoHS Certification 2
