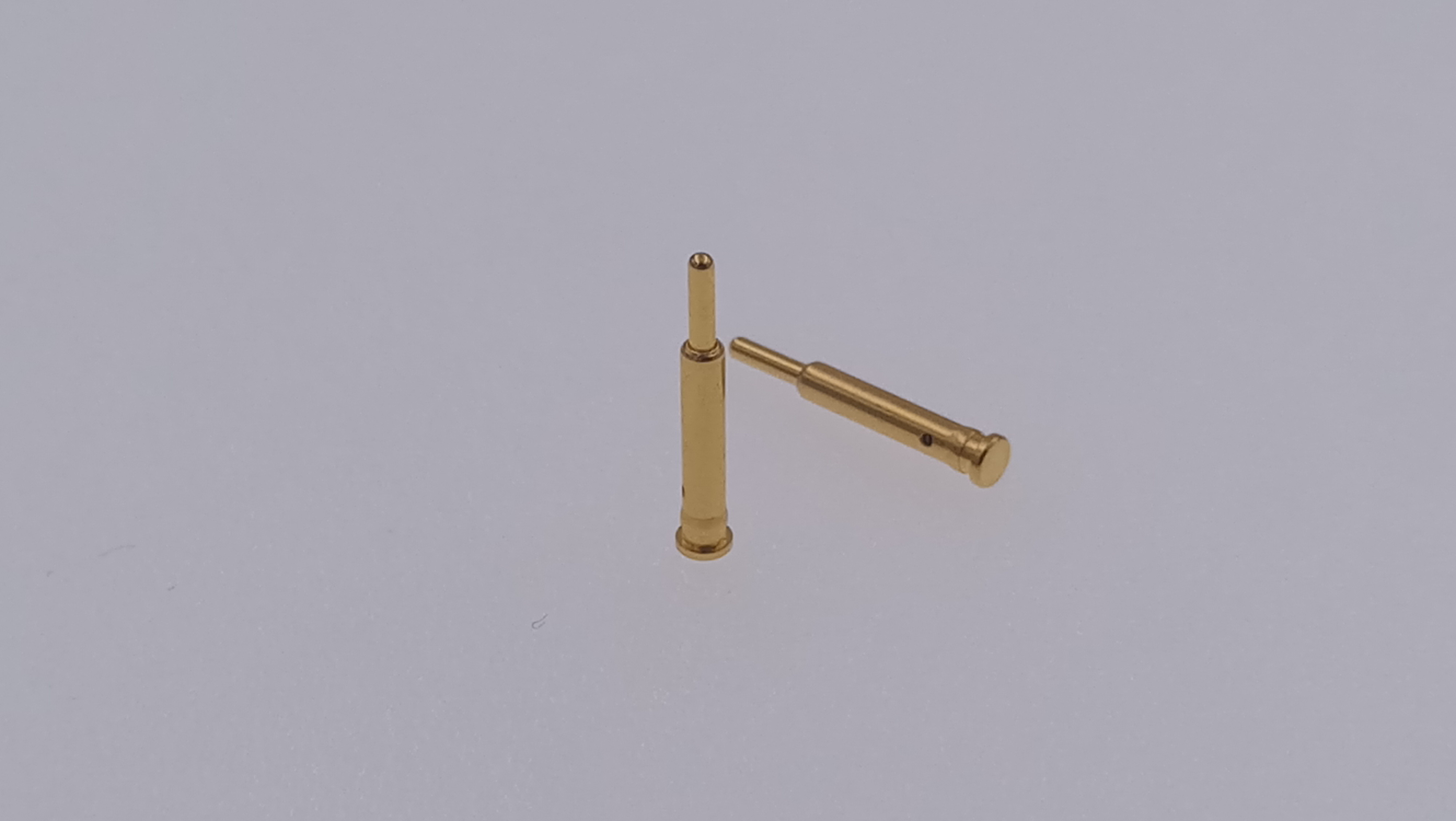

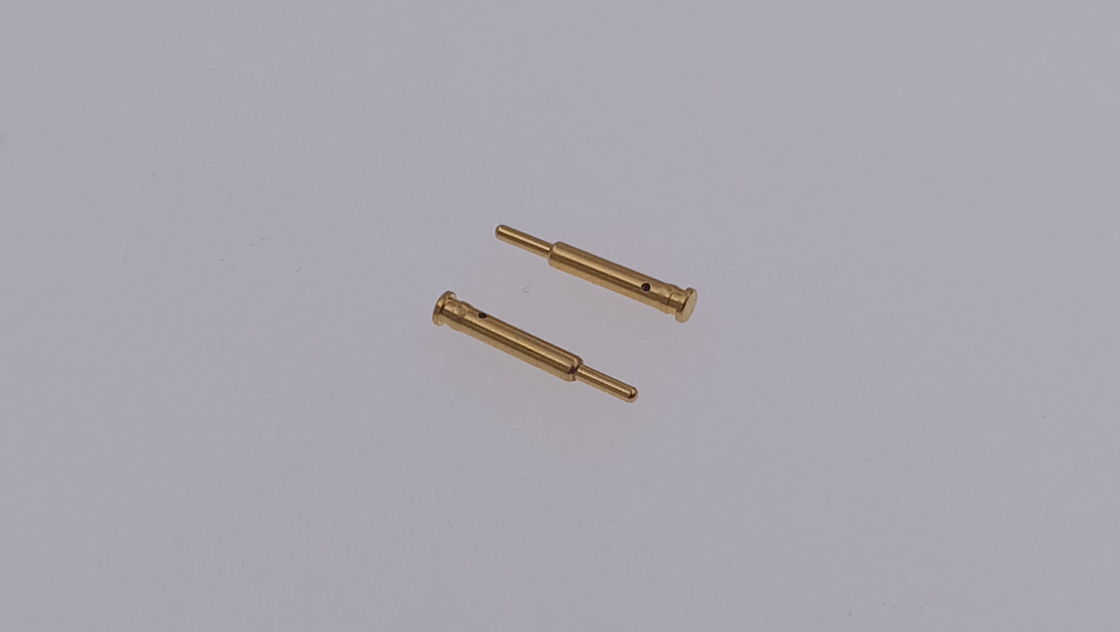

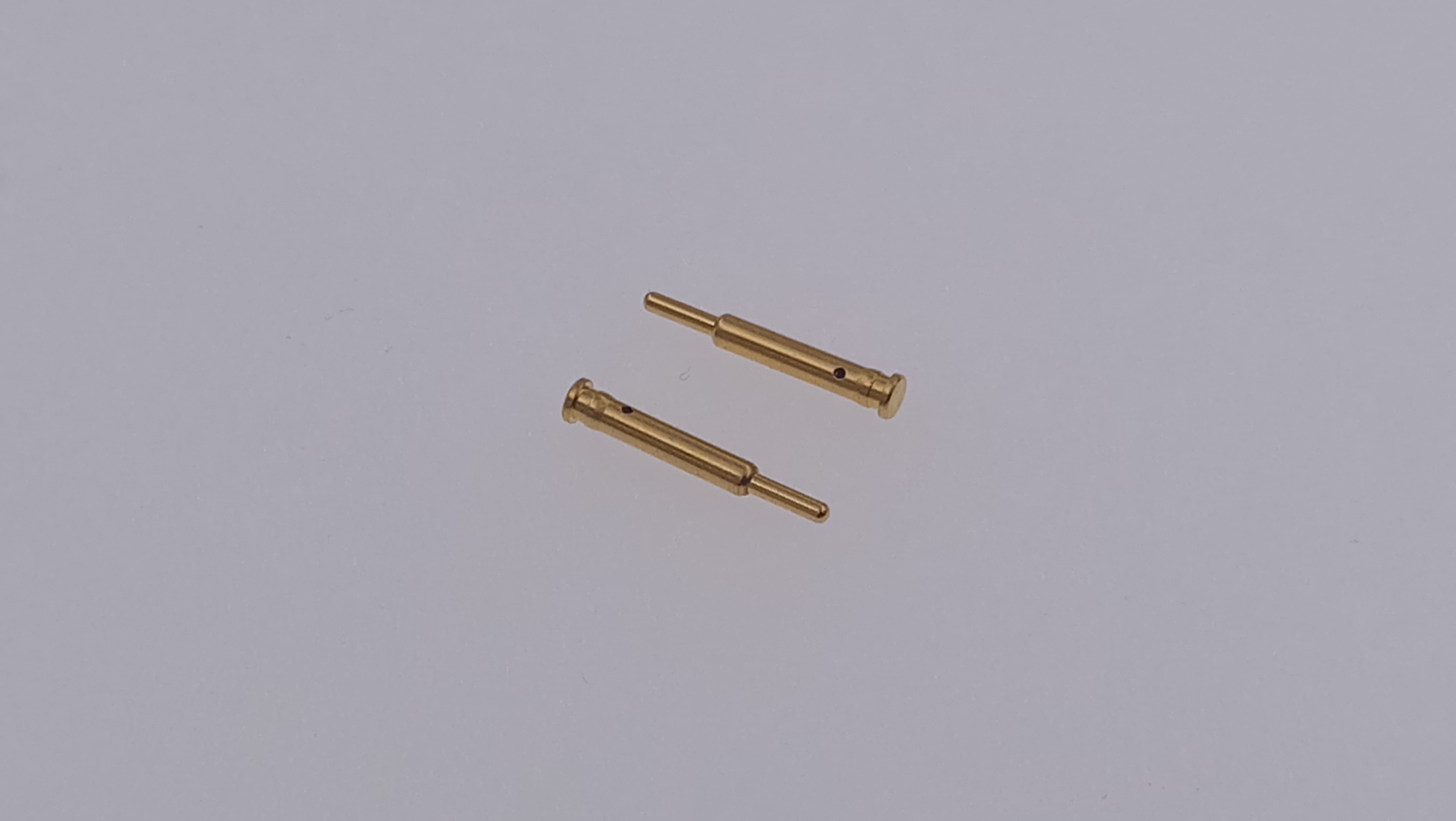

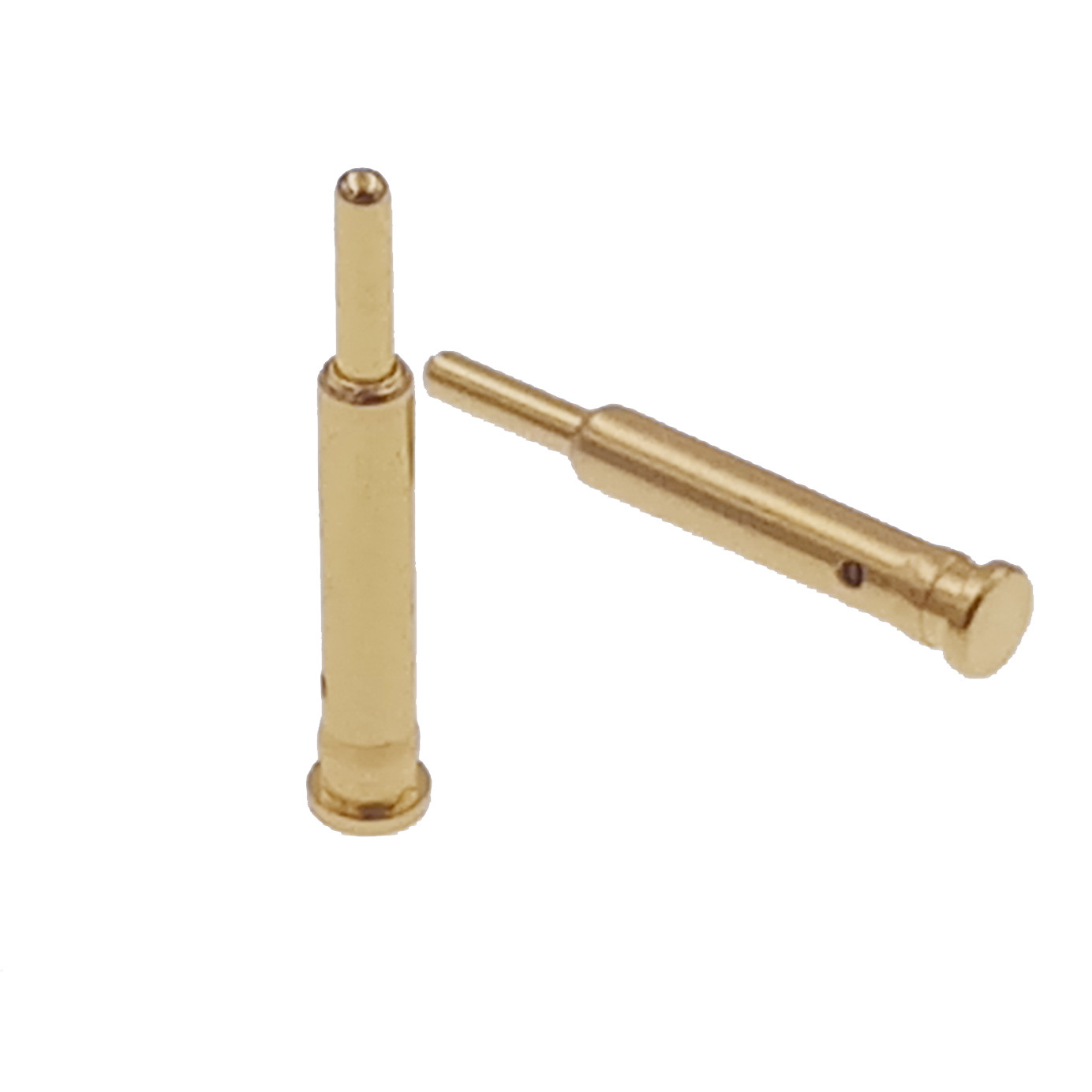

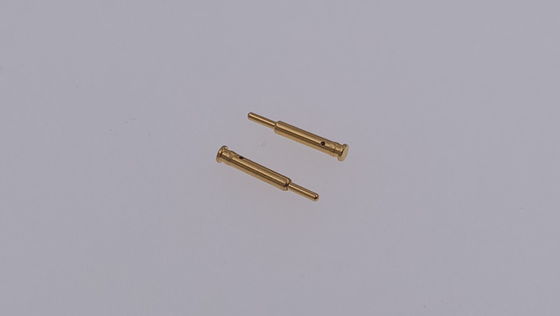

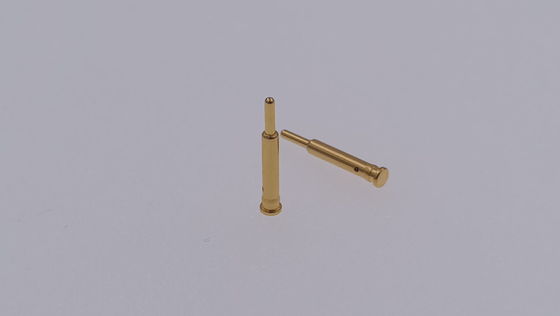

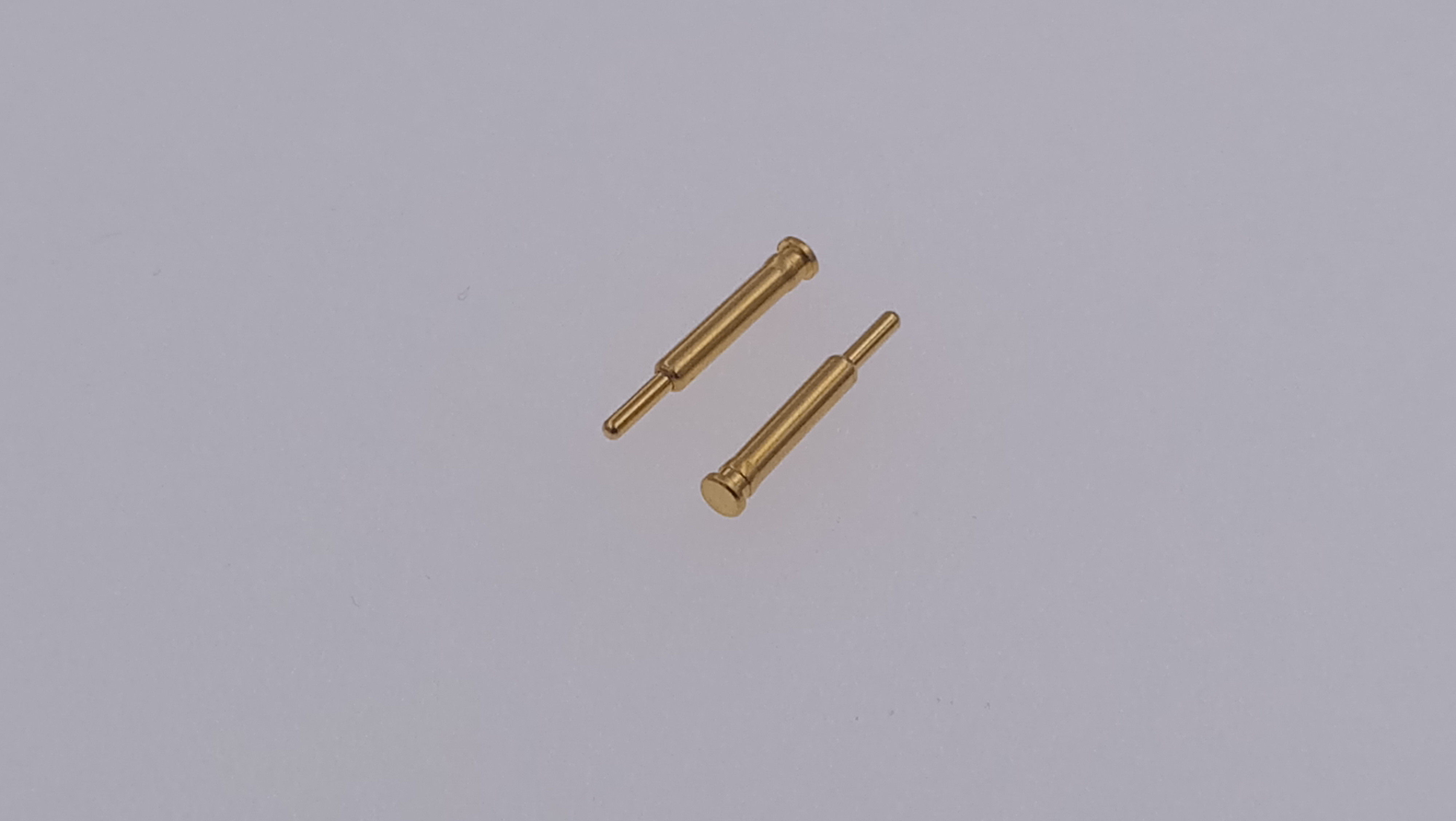

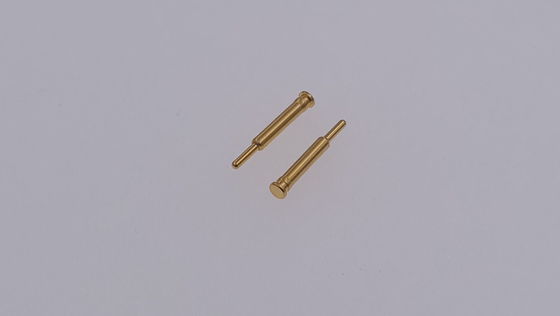

High Current SS Individual Magnetic Pogo Connector SMD PCB Mount

High Current SS Individual Magnetic Pogo Connector SMD PCB Mount
High Current SS Individual Magnetic Pogo Connector SMD PCB Mount High Current SS Individual Magnetic Pogo Connector SMD PCB Mount High Current SS Individual Magnetic Pogo Connector SMD PCB Mount High Current SS Individual Magnetic Pogo Connector SMD PCB Mount
Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS
Model Number: IPPRA-03
Minimum Order Quantity: 10000pcs
Price: Conact us
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 1000000pcs per 21 days
Contact Now
Name: Pogo Pin Contact Number: Pogo Pin
Gender: Male Usage: For Charging
Mounting: SMD Package: Loose Or Tape & Reel
Center Contact Plated: Brass, Gold Plate Life Cycle: 10000 Cycles
Spring: Stainless Steel
High Light:

SS Individual Magnetic Pogo Connector

,

SS High Current Pogo Connector

,

SMD PCB Mount Magnetic Pogo Connector

High Current SS Individual Magnetic Pogo Connector SMD PCB Mount


Products Descrption:

Pogo pins consisting of a plunger (or head), barrel (or body), and a fully encapsulated fine spring, to provide the spring force required to maintain positive contact. All have a high durability, exceeding 20,000 mating cycles.



Charaterisitcs:



Material:





  1. Product type:   pogo Pin,

  2. Mating interface: Pogo

  3. Mounting:  SMD

  4. Matching: Mates with any contact surface, or Surface Mount Contact Pads

  5. Cores: 1 Pin

  6. Center Contact: Brass Plated Gold

  7. Spring: Stainless steel

Surface finish:

Aluminum parts Stainless Steel parts Steel Plastic
Clear Anodized Polishing Zinc plating Painting
Color Anodized Passivating Oxide black Chrome plating
Sandblast Anodized
Sandblasting		 Nickel plating
polishing
Chemical Film Laser engraving Chrome plating Sandblast
Brushing   Carburized Laser engraving
Polishing   Heat treatment
Chroming   Powder Coated
  1.



Specifcation





1. All Material RoHS

2. Rated Temperature : -45 to 85 Degree

3. Life Cycle:10000 cycles

4. Soldering TEMP: Max reflow soldering temperature 260°C  for 10 Seconds

5. Rated Current: 2A

6. Center Contact plated thickness : 0.4μ Gold over 1.4μ Nickel

7. Contact Resistance: 30m Ohms Max.

8. Salt Spray Test Hours: 48 Hours





Function: It provides an excellent electronics conduction, and power charging.



Sinrui's Advantage and Quality warranty for Circular Connectors



(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, contact numbers, shape,

mating interface, cable mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.



R&D testing Corner:



High Current SS Individual Magnetic Pogo Connector SMD PCB Mount 1
