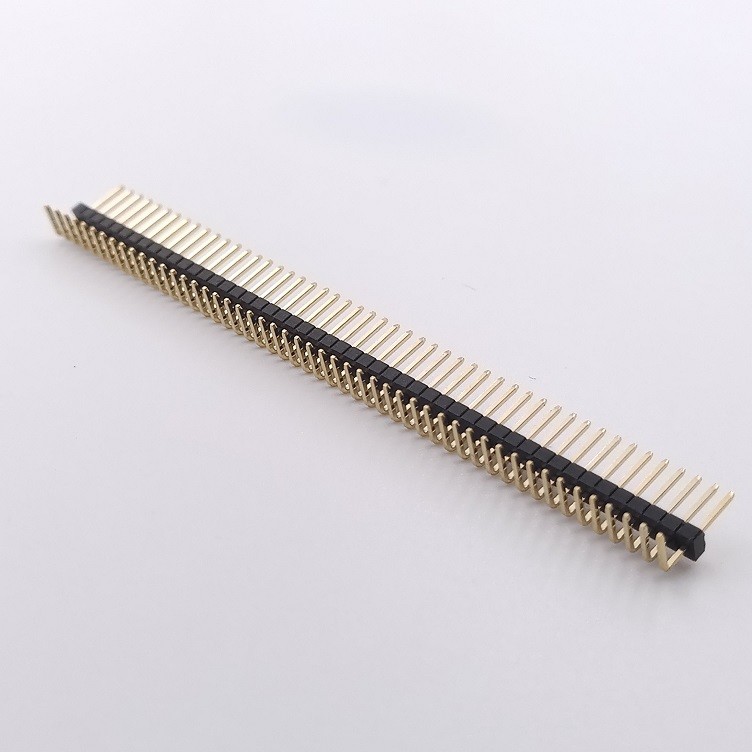

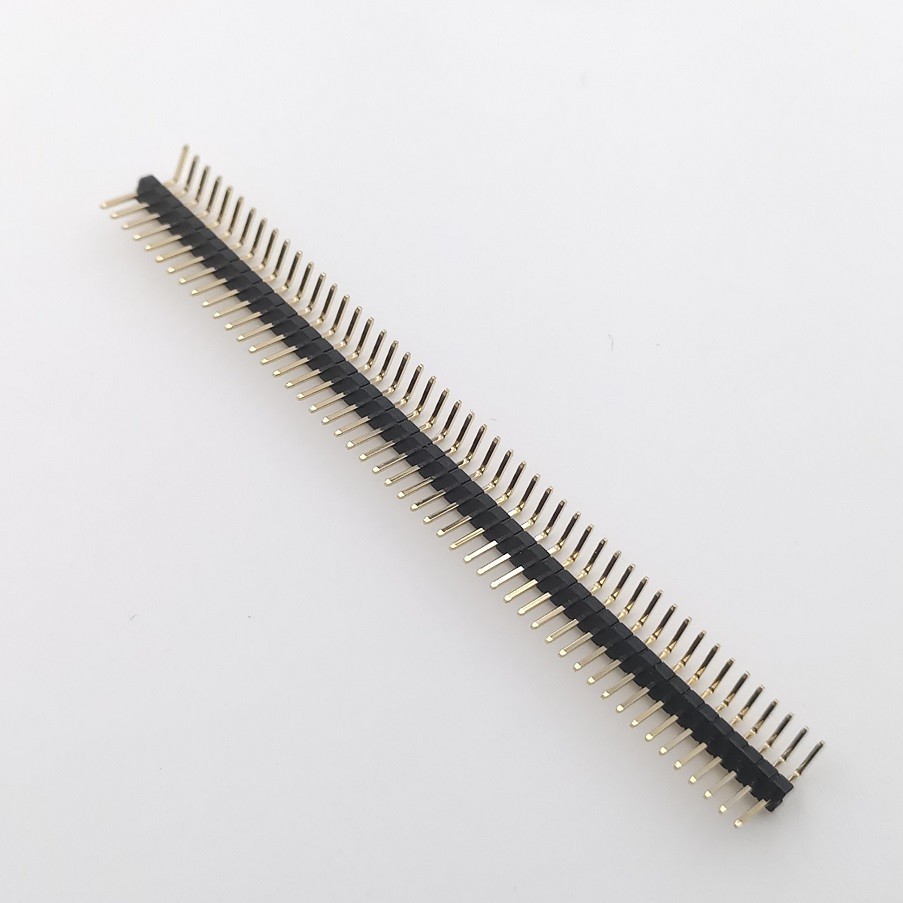

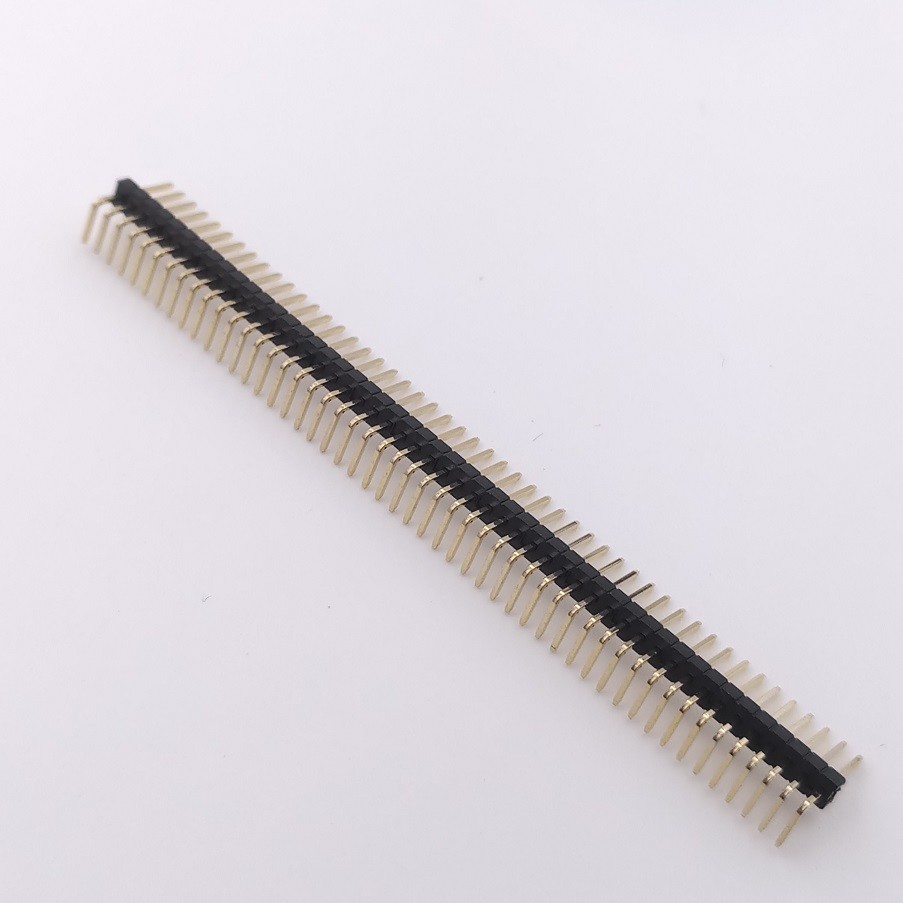

Gold plated Pitch 1.27mm Pin header connector single row 50 Pins Right Angle DIP for PCB Mounting

Products Name: Gold plated Pitch 1.27mm Pin header connector single row 50 Pins Right Angle DIP for PCB Mounting

Products Descrption:

this Pin Header is with pitch 1.27mm, single row with 40 pin numbers. with a specified pin length and 0.4mm square pins that it can afford an 1AMP of current transmission. It usually match with a same pitch and pin number of Female Header so as to form as board to board connection, or match with a wire haress forming as wire to board connection, or it can directly soldered in two PCBs.

Its pitch, pin number, mounting type, length can be customized according to customer application, like:

Pitch can be optional as 0.8mm,1.0mm, 1.27mm, 2.0mm, 2.54mm,3.96mm,etc.

And it can be  single row, dual row or triple row.

Mounting type can be customized to be SMT(vertical or side entry), DIP throught PCB(vertial or side entry).

Common Application:

we produce and supply in hugh volumn for consuming electronics of consumer catagory, Telecommunication, industrial control, meters, medical, aviation and millitary.

Function: It provides an electric current connection between board to board or board to wires.
