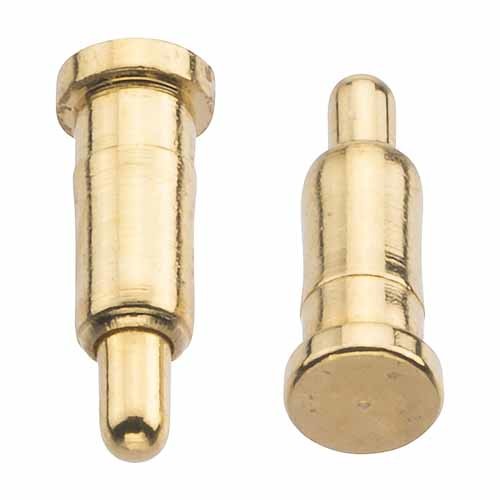

Gold Plated OverMagnetic Pogo Connector Male For SMT Mounting

Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS
Model Number: SR701020045
Minimum Order Quantity: 5000pcs
Price: Conact us
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 20000pcs per 21 days
Name: Pogo Pin Contact Number: Pogo Pin
Gender: Male Usage: For Charging
Mounting: SMT Package: Loose Or Tape & Reel
Center Contact Plated: Brass, Gold Plate Life Cycle: 10000 Cycles
Spring: Stainless Steel
High Light:

pogo pin connector

,

high current pogo pins

Products Name: Gold plated over Nickel plating Spring Loaded Contact, Pogo Pin for SMT mounting


Products Descrption:

Pogo pins consisting of a plunger (or head), barrel (or body), and a fully encapsulated fine spring, to provide the spring force required to maintain positive contact. All have a high durability, exceeding 20,000 mating cycles.



Charaterisitcs:



Material:

  1. Product type:   pogo Pin,

  2. Mating interface: Pogo

  3. Mounting:  SMT

  4. Matching: Mates with any contact surface, or Surface Mount Contact Pads

  5. Cores: 1 Pin (can be customized for more cores)

  6. Center Contact: Brass Plated Gold

  7. Spring: Stainless steel

Specifcation
Item Description Value
1 All Material RoHS Compliant
2 PItch N/A
3 Rated Temperature -45 to 85 Degree
4 Life Cycle 10000 cycles
5 Soldering TEMP Max reflow Solder Temperature: 260°C for 10 seconds
6 Rated Current 2A
7

Center Contact

plated thickness

Gold
8 Contact Resistance 30m Ohms Max.
9 Salt Spray Test Hours 48 Hours





Application:  Eectronics Power charging in PCB.


Function: It provides an excellent electronics conduction, and power charging.



Sinrui's Advantage and Quality warranty for Circular Connectors



(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, contact numbers, shape,

mating interface, cable mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.
