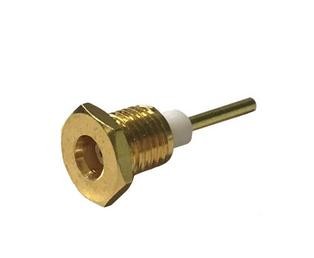

Female Straight MCX RF Coaxial Connectors Nut Mounting With Micro Stripe

Female Straight MCX RF Coaxial Connectors Nut Mounting With Micro Stripe
Female Straight MCX RF Coaxial Connectors Nut Mounting With Micro Stripe
Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS
Model Number: MCX-KYD
Minimum Order Quantity: 1000 pcs
Price: USD 0.8 per pcs
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 10000 pcs per 25 days
Contact Now
Interface: MCX Gender: Female
Structure: Straight 180° Mounting: Nut Mounting
Plated: Gold Frequency: DC 6GHz
Impedance: 50 Ohms Salt Spray Test: 24 Hours
High Light:

MCX RF Coaxial Connectors

,

DC 6GHz RF Coaxial Connectors

,

mcx rf connector

Female Straight MCX RF Coaxial Connectors Nut Mounting With Micro Stripe



Products Descrption:

MCX connectors use a snap-on interface and usually have a 50 ohm impedance. It offers broadband capability from DC to 6 GHz. They have the same inner contact and insulator dimensions as the SMB connector but are 30% smaller. Miniature snap-on connectors which offer an excellent blend of size, weight, durability, and performance for applications such as GPS, wireless communication, testing, and measurement



Common Application:

we produce and supply in hugh volumn for customers whose are making Antenna, WIFI modules,and electronics products, bluetooth application, etc.

  1.



Material
Items Material Plating
Center Contact Brass Gold
Body Brass Gold
Insulator PTFE N/A



Specification
Description Value
Frequency DC 6GHz
Impedance 50 Ohms
VSWR 1.2
Insulation Resistance > 1000 M ohms
Dielectric Withstanding Voltage 750V
Contact Resistance for center conductor < 0.005 ohm
Contact Resistance for outer conductor < 0.0025 ohm
Life Cycle 500 cycles
Temperature Rated -65 C° to +155 C°







Function: It provides a RF signal transmssion while there is a requirement on a small space of installation in customer application.



Sinrui's Advantage and Quality warranty for RF ConnectorsFemale Straight MCX RF Coaxial Connectors Nut Mounting With Micro Stripe 0



(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, shape, electric performance, mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.

R&D testing Corner show:



Female Straight MCX RF Coaxial Connectors Nut Mounting With Micro Stripe 1
