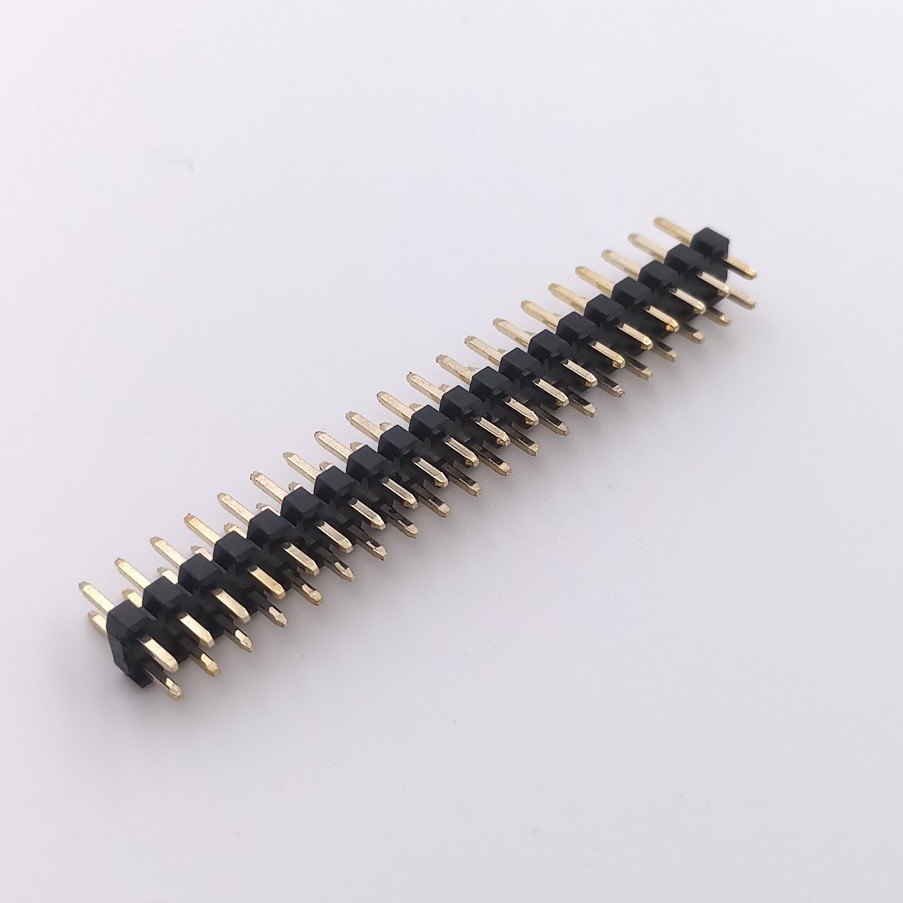

Dual Row Male PIN Header Connector Pitch 2.0mm 2x20P Arduino Header Pitch

Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS,REACH, ISO9001:2015
Model Number: SR-M20D40AS-XX
Minimum Order Quantity: 5000pcs
Price: USD 0.23 per pcs
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 500000 per 15 days
Pitch: 2.0mm Pin Numbers: 40Pins
Row: Dual Row Post Height: 5.0mm
Plastics Height: 2.0mm Solder Feet: 2.8mm
Pin Material: Brass Plastics Material: PA6T
Rated Current: 1.5Amp Rated Voltage: 450V AC / 1 Min,
High Light:

2mm pitch pin header


arduino male header pins

Products Name: Pitch 2.0mm Male Pin header 2x20P gold plated Straight DIP PCB Mounting


Products Descrption:

this Pin Header is with pitch 2.0mm, single row with 40 pin numbers. with a specified pin length and 0.5mm square pins that it can afford an 1.5AMP of current transmission. It usually match with a same pitch and pin number of Female Header so as to form as board to board connection, or match with a wire haress forming as wire to board connection, or it can directly soldered in two PCBs.


Its pitch, pin number, mounting type, length can be customized according to customer application, like:

Pitch can be optional as 0.8mm,1.0mm, 1.27mm, 2.0mm, 2.54mm,3.96mm,etc.

And it can be  single row, dual row or triple row.

Mounting type can be customized to be SMT(vertical or side entry), DIP throught PCB(vertial or side entry).


Common Application:

we produce and supply in hugh volumn for consuming electronics of consumer catagory, Telecommunication, industrial control, meters, medical, aviation and millitary.

Items Material Plating
Contact Brass Gold
Insulator UL94V-0 PA6T + 30%GT N/A


Description Value
Type Board to Board Connector
Gender Male Header
Structure Straight 180°
Mounting type Straight DIP through PCB
Current rated 1.5 Amp per contact
Voltage Rated 450V AC/ min.
Contact Resistance < 20m ohm per contact
Insulation resistance > 1000m ohm
Withstanding Voltage 500V DC/AC
Temperature Operation -45 C° to +105 C°
Processing(Soldering) Temperature

230C° for 30~60 seconds,

(260C° for 5 seconds)



Function: It provides an electric current connection between board to board or board to wires.


Sinrui's Advantage and Quality warranty

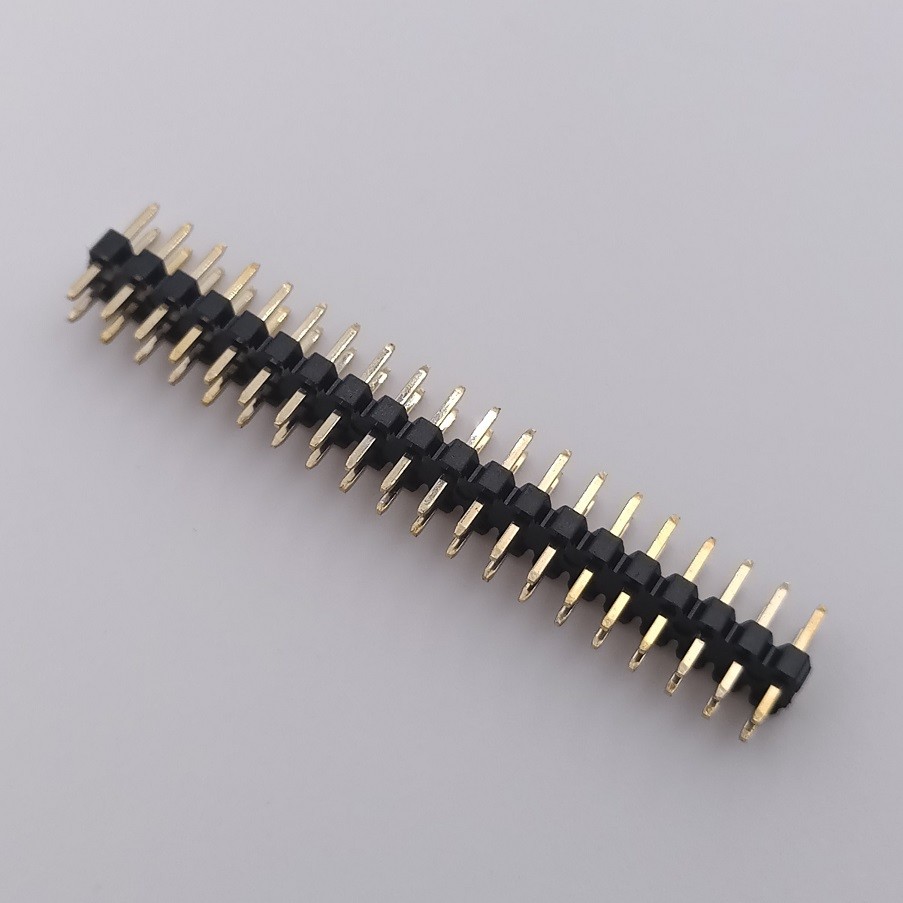

Dual Row Male PIN Header Connector Pitch 2.0mm  2x20P Arduino Header Pitch 0


(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including pitch, size, structure, pins numbers,mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.


R&D Corner of show:

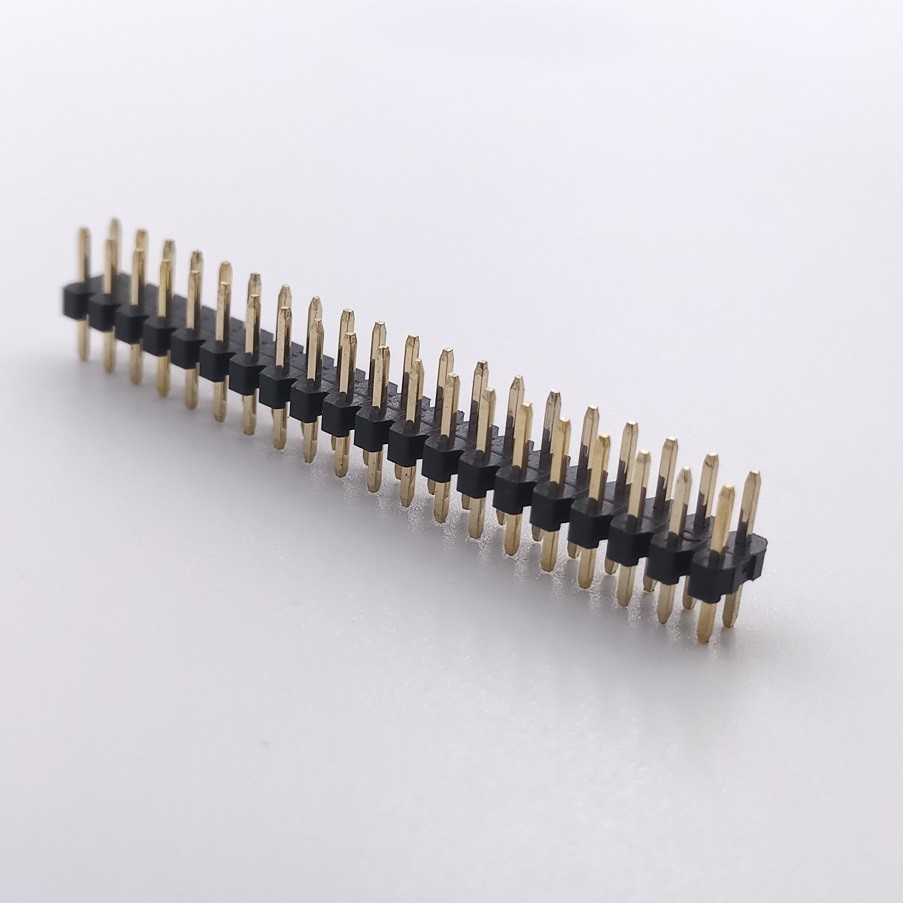

Dual Row Male PIN Header Connector Pitch 2.0mm  2x20P Arduino Header Pitch 1
