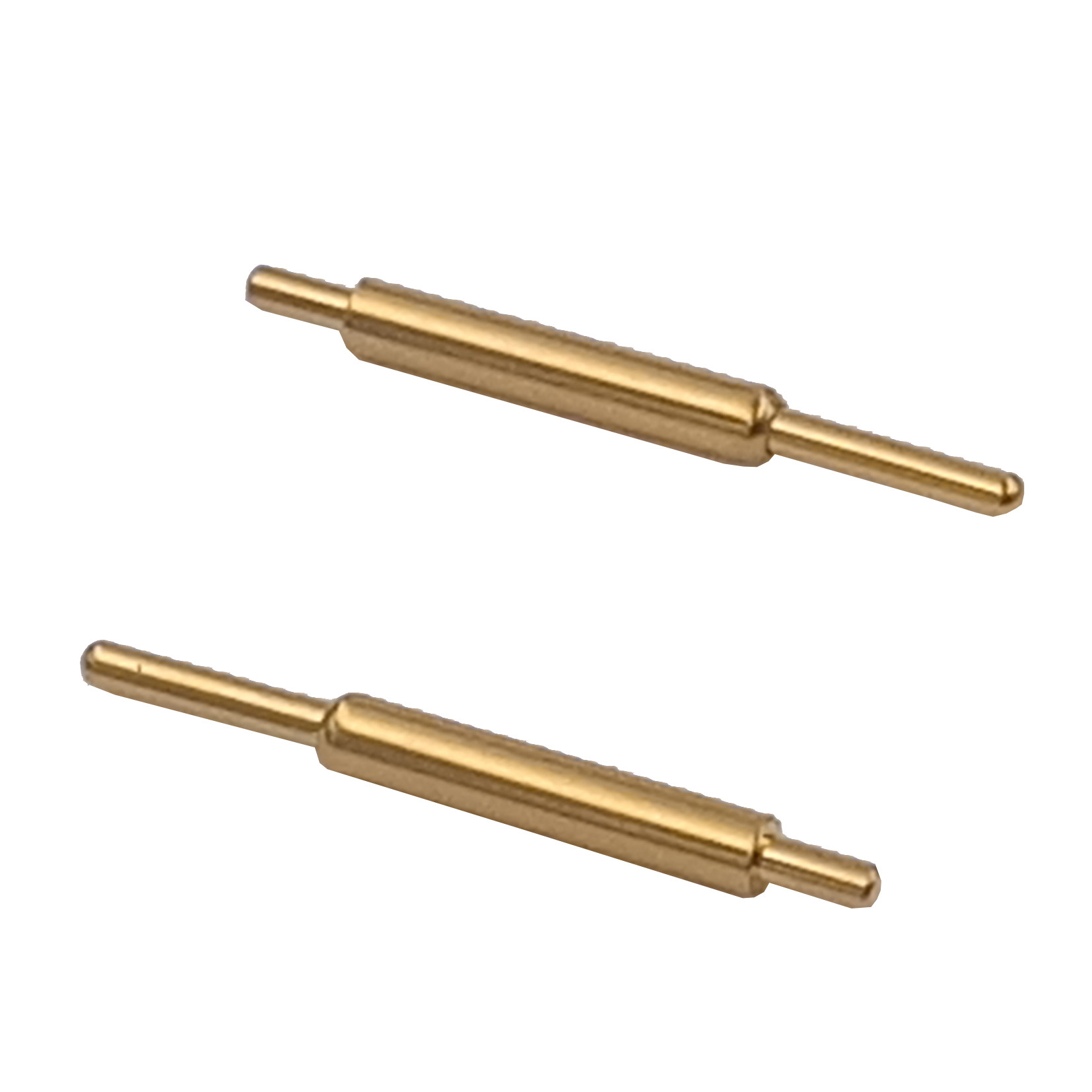

Double End Spring Loaded Magnetic Pogo Connector 10000 Cycles

Double End Spring Loaded Magnetic Pogo Connector 10000 Cycles
Double End Spring Loaded Magnetic Pogo Connector 10000 Cycles Double End Spring Loaded Magnetic Pogo Connector 10000 Cycles Double End Spring Loaded Magnetic Pogo Connector 10000 Cycles
Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS
Model Number: IPPRA-07
Minimum Order Quantity: 10000pcs
Price: Conact us
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 1000000pcs per 21 days
Contact Now
Name: Pogo Pin Contact Number: Pogo Pin
Gender: Male Usage: For Charging
Mounting: Double End Package: Loose Or Tape & Reel
Center Contact Plated: Brass, Gold Plate Life Cycle: 10000 Cycles
Spring: Stainless Steel
High Light:

double end Magnetic Pogo Connector

,

Spring Loaded Magnetic pogo Pin

,

10000 Cycles Magnetic Pogo Connector

Double End Spring Loaded Magnetic Pogo Connector 10000 Cycles


Products Descrption:

Pogo pins consisting of a plunger (or head), barrel (or body), and a fully encapsulated fine spring, to provide the spring force required to maintain positive contact. All have a high durability, exceeding 20,000 mating cycles.



Charaterisitcs:



Material:

1, Stainless Steel: 304/ 303/ 316/ 17-4 ...

2, Steel: Alloy steel/ Carbon steel/ 1215 ...

3, Aluminum: 6061/ 6063/ ...

4, Brass: H59/ H62/ 3602/ ...

5, Bronze/ Copper/ Iron etc...

and more special materials could be supplied as well.

Surface treatment :

Passivated, Nickel plated, Zinc plated, Black oxided,

Size:

As per above datasheet,

If customized is needed, welcome~

  1.



Specifcation





1. All Material RoHS

2. Rated Temperature : -45 to 85 Degree

3. Life Cycle:10000 cycles

4. Soldering TEMP: Max reflow soldering temperature 260°C  for 10 Seconds

5. Rated Current: 2A

6. Center Contact plated thickness : 0.4μ Gold over 1.4μ Nickel

7. Contact Resistance: 30m Ohms Max.

8. Salt Spray Test Hours: 48 Hours





Function: It provides an excellent electronics conduction, and power charging.



Sinrui's Advantage and Quality warranty for Circular Connectors



(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, contact numbers, shape,

mating interface, cable mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.



R&D testing Corner:



Double End Spring Loaded Magnetic Pogo Connector 10000 Cycles 1
