DC 8.5 GHz Sma Panel Connector Straight PCB Mounting Sma Female To Female Connector

Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS
Model Number: SMA-KFB2
Minimum Order Quantity: 1000 pieces
Price: USD 0.29 per pcs
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 40000 pcs per 21 days
Series Interface: SMA Gender: Female
Structure: Soldering PCB Mounting Monnting: Flange Pannel Mounting & Soldering Crimp For Cable
Plating: Gold Frequency: DC 8.5 GHz
Size Customized: Can Be Customized Impedence: 50 Ohm
Salt Spray Test: 24 Hours Life Cycle: 50 Cyles
High Light:

sma jack connector

,

panel mount sma connector

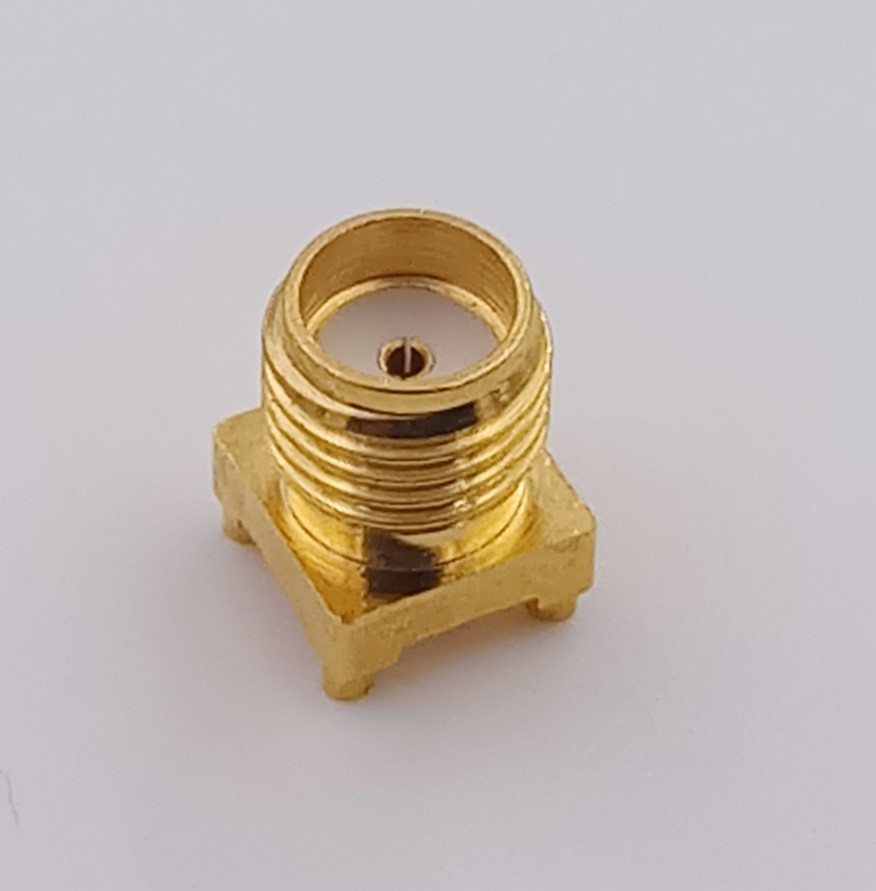

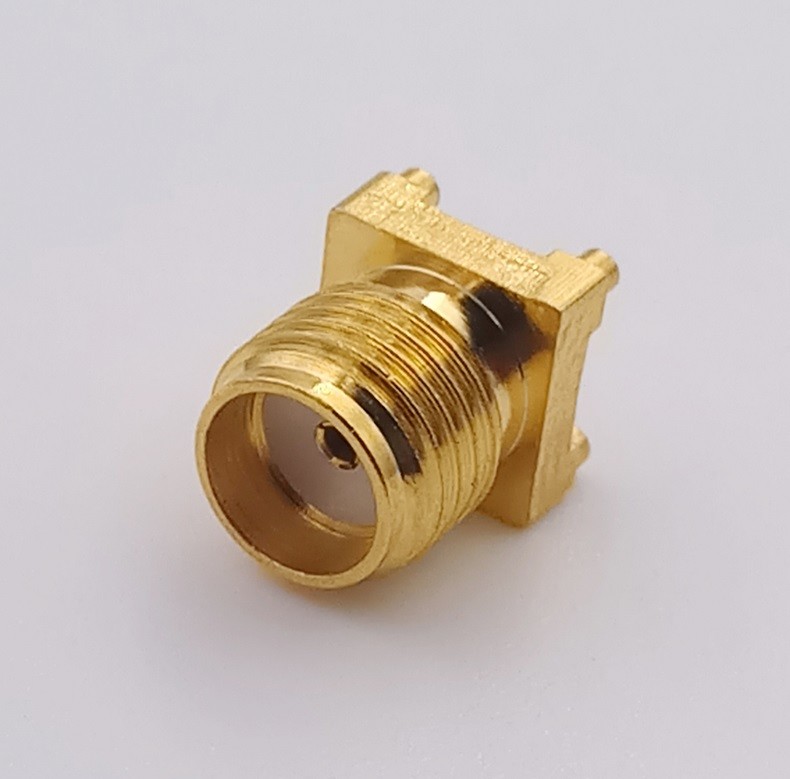

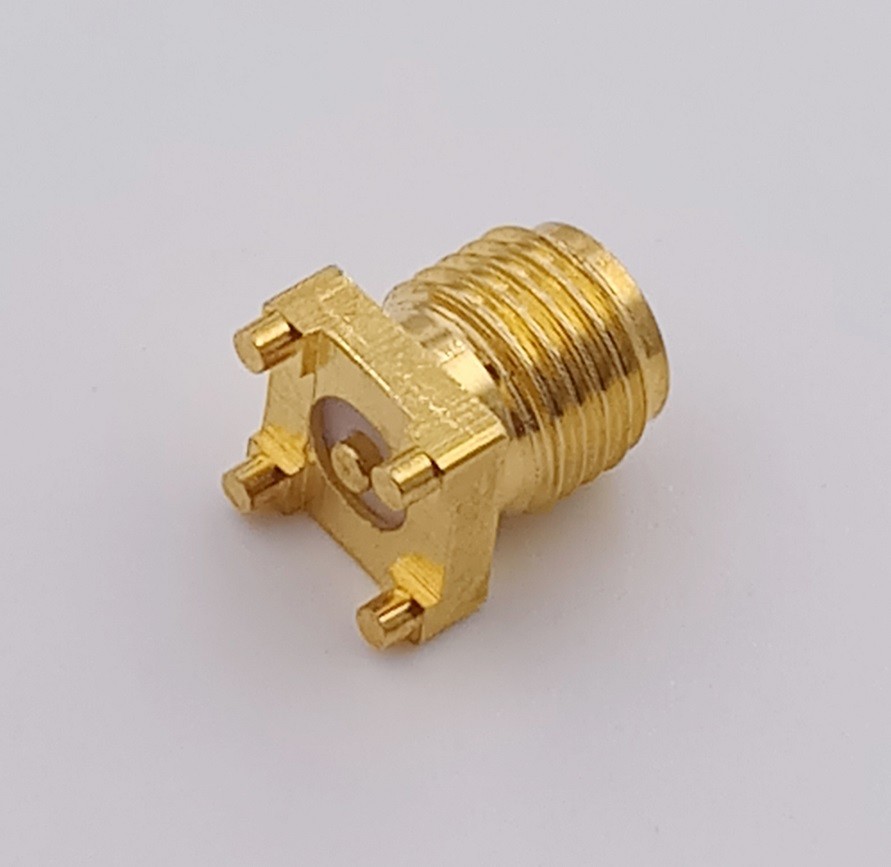

Products Name: Gold plated SMA female connector straight for PCB Mounting Wifi antenna connectors



Products Descrption:

SMA connector is a precision sub-minimal connector interface for coaxial cable with a screw type coupling mechanism. The connector has a 50Ω impedance. It offers excellent electrical performance from DC to 18 GHz. It is often used for providing RF connectivity between cables, boards, and many microwave components including filters, attenuators, mixers, and oscillators. SMA and precision SMA-like connectors are by far the most popular, small, threaded coaxial connectors.



Common Application:

we produce and supply in hugh volumn for customers whose are making Antenna, WIFI modules,and electronics products;

Also we produce in small volumn for meters and aviation usage.



Charaterisitcs:



  1. Interface Standard:  SMA

  2. Type: Connector

  3. Gender: Female

  4. Impedance: 50 Ohms

    Structure: Straight 180°
  5. Mounting Type: Soldering PCB mounting

  6.
Material
Items Material Plating
Center Contact Brass Gold
Body Brass Gold
Insulator PTFE N/A



Specification
Description Value
Frequency DC 8.5GHz
Impedance 50 Ohms
VSWR 1.5 @ DC 3.5GHz
Insulation Resistance > 5000 M ohms
Dielectric Withstanding Voltage 1000V
Contact Resistance for center conductor < 3.0 m ohm
Contact Resistance for outer conductor < 2.0 m ohm
Life Cycle 50 cyles
Temperature Rated -40 C° to  +155 C°



Function: It provides an excellent RF signal transmssion while it has different size, shape of options according to customers application.




(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, shape, electric performance, mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.



R&D Testing Corner:

DC 8.5 GHz Sma Panel Connector Straight PCB Mounting Sma Female To Female Connector 1
