Customized Length RF Coaxial Cable Assembly Right Angle Female To Female Smb Cable Assembly

Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS, ISO9001:2015
Model Number: SMB-KW3/SMB-KW3
Minimum Order Quantity: 500pcs
Price: USD 2 per pcs
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 10000 pcs per 27 days
Connector 1: SMB Gender: Female (Jack)
Structure: Right Angle Connector 2: SMB
Cable: RG174 Or Customized Cable Length: 750mm Or Customized
Size Customized: Can Be Customized Impedance: 50 Ohms
High Light:

sma cable assembly


semi rigid cable assemblies

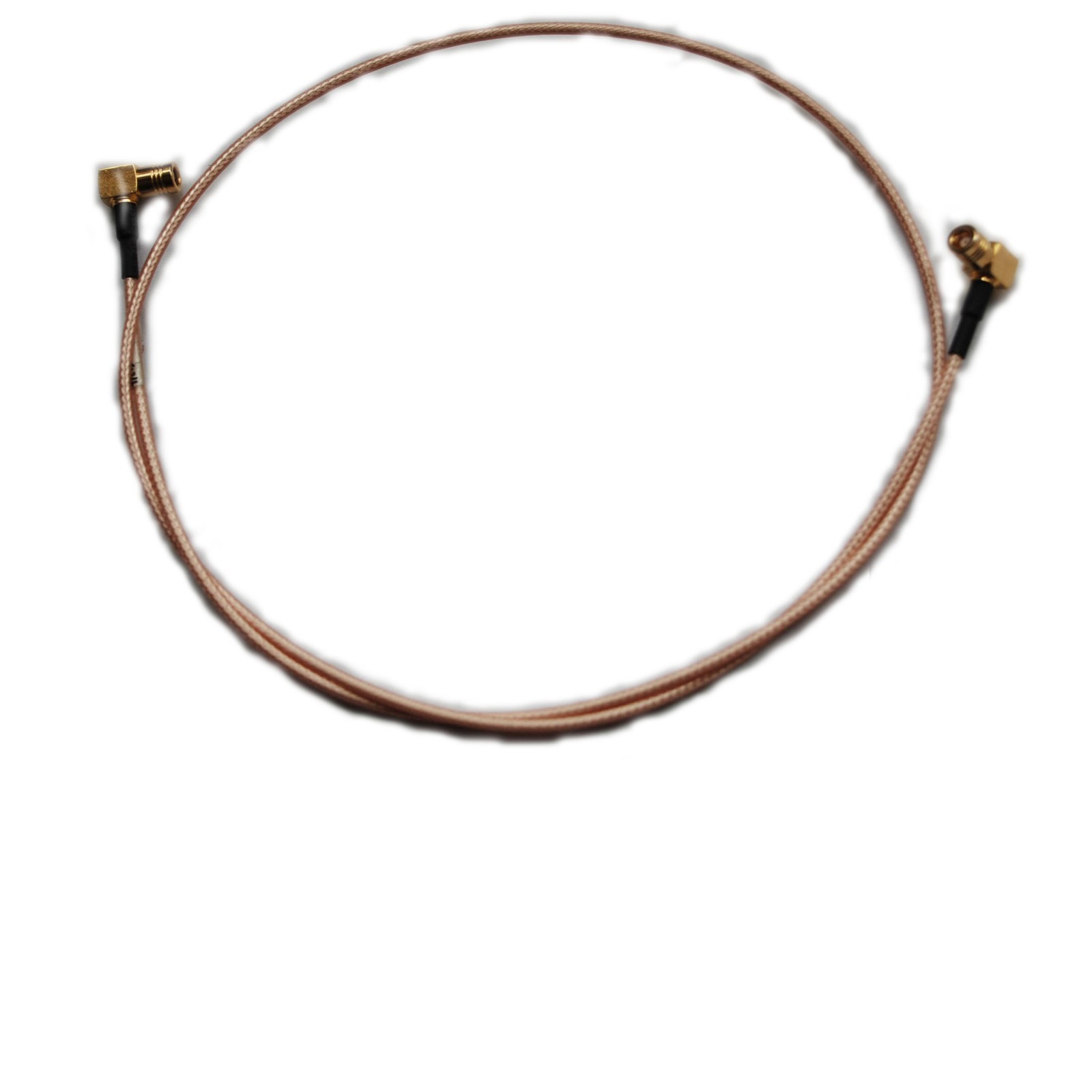

Products Name: RF Cable assembly SMB right angle female to SMB right angle female with RG174 cables


RF Cable Assembly introduction:

RF cable assembly are usually formed by a coaxial cables whose two ends assembled with RF Connectors. RF cable assembly can perfectly transmit RF signal and power. RF Cable Assembly is an critical part of transmission system, its perfermance will affect transmission quality greatly. the performance of RF Cable assembly is not only based on RF connectors and Coaxial cables, but also its assembly technique and procedures are critical. A lot of RF cable assembly is not qualified due to unqualified assembly between connectors and cables. Thus, customers shall directly purchase RF cable assembly from a professional manufacutrer in priority.


And We, Sinrui Technology is a strong manufacturer in RF Fields for more than 15 years, that our experience, skills, engineers, machines can afford you a high quality of RF Cable Assembly



Common Application:

It is used in alll kinds of signal sender, modules, antenna, transmitter,receiver, make sure the signal among them are transmitted currectly, in good quality, high efficiently and in low lost,




  1. Interface Standard: SMB-KW3 to SMB-KW3

  2. Type: Cable asssembly

  3. Gender: Female to Female

  4. Impedance: 50 Ohms

  5. Cable Type: RG174


Parts Items Material Plating(or size)
SMB Body Brass Gold
Center Contact phosphor bronze Gold
Insulator PTFE
Cable RG 174 copper plated silver wire  750mm long or customized


Description Value
Frequency DC 4GHz
Impedance 50 Ohms
VSWR 1.34
Life Cycle Standard
Temperature Rated -40 C° to +165 C°


Function: It provide a signal transmission bridge among devices.


Sinrui's Advantage and Quality warranty for RF Cable Assembly

Customized Length RF Coaxial Cable Assembly Right Angle Female To Female Smb Cable Assembly 0


(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, shape, electric performance, mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.


Customized Length RF Coaxial Cable Assembly Right Angle Female To Female Smb Cable Assembly 1
R&D testing Corner
