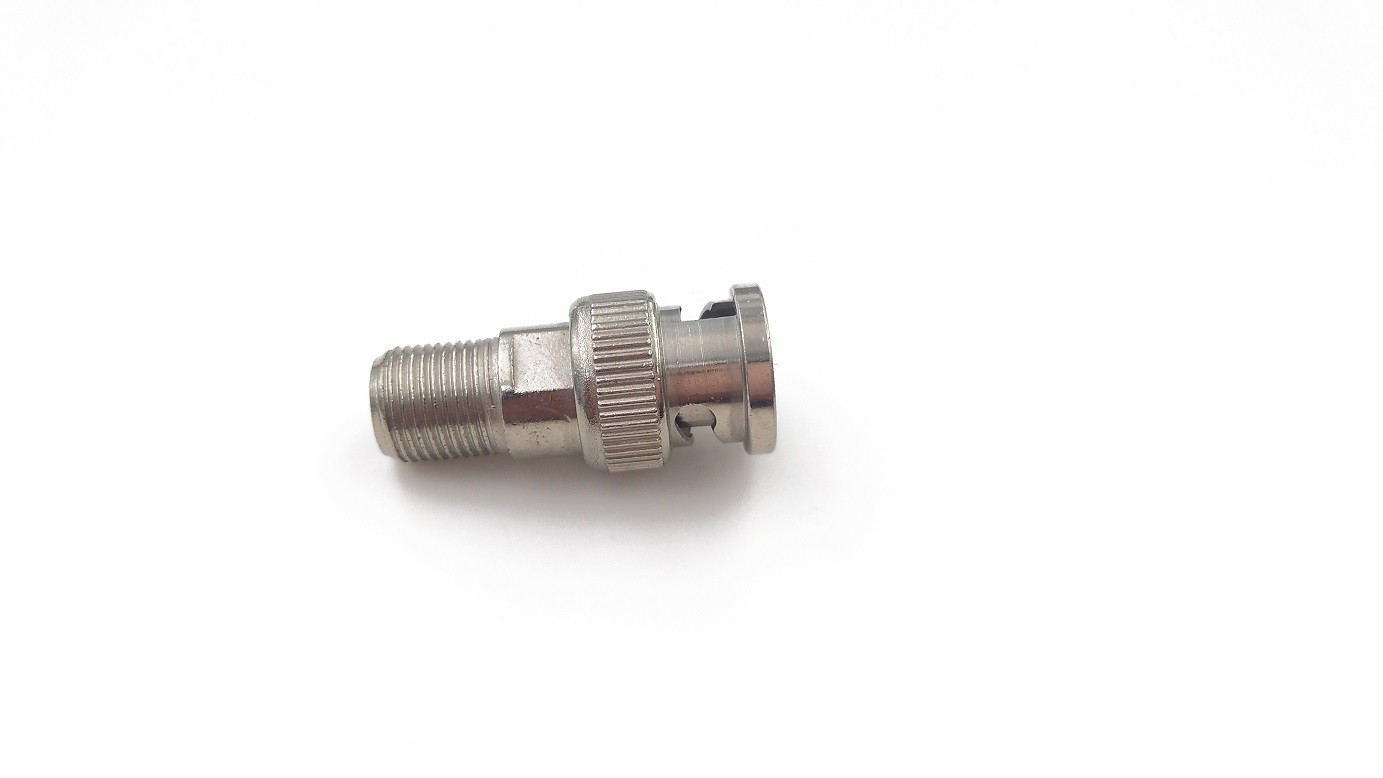

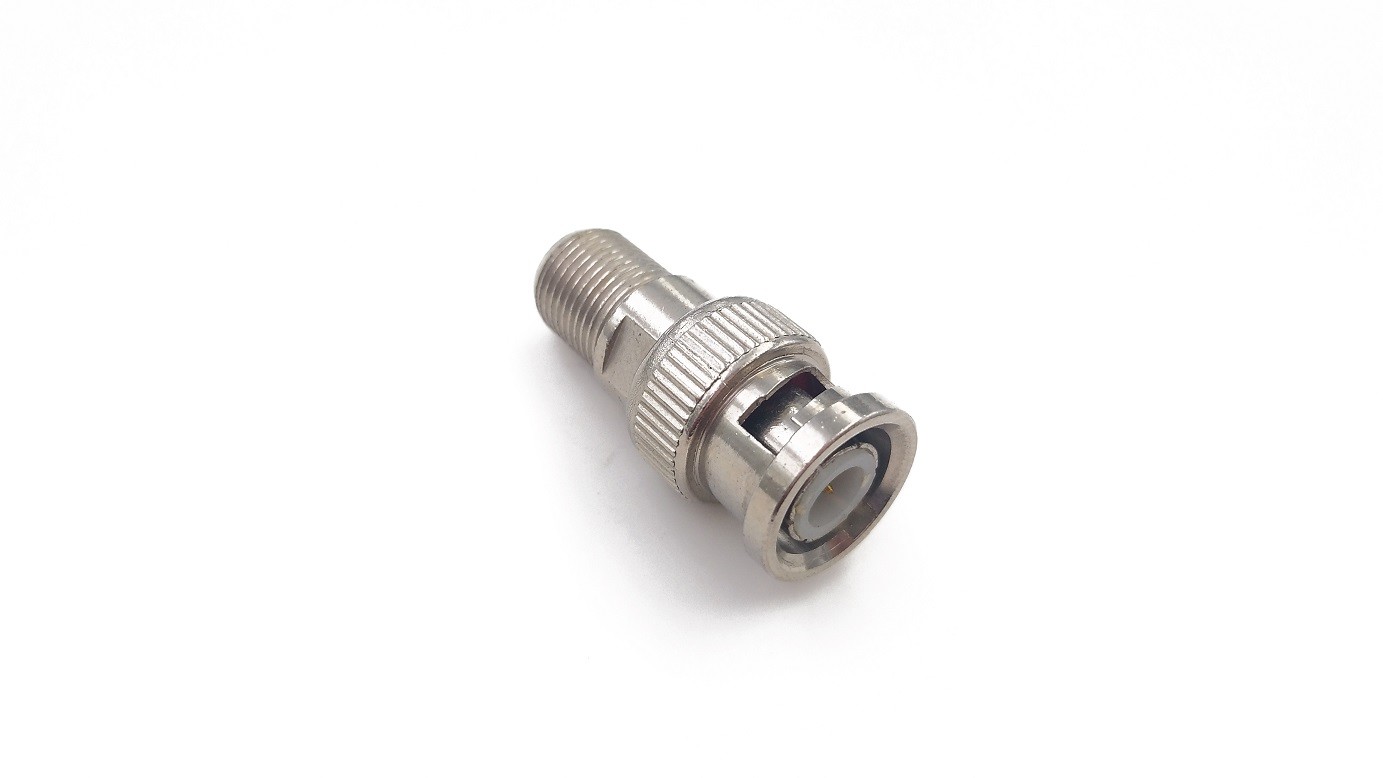

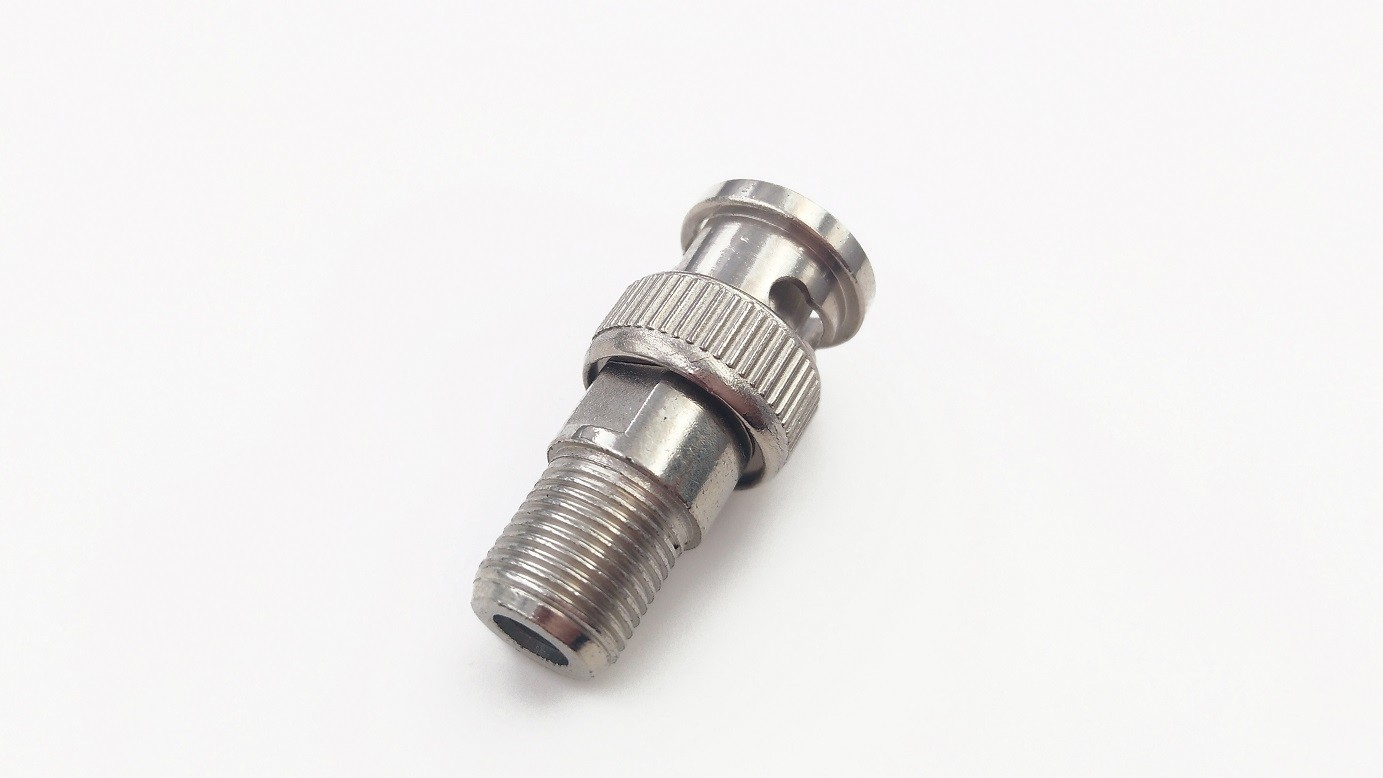

BNC RF Coaxial Connectors BNC 50 Ohm Panel Mount Coaxial Connector With Cable

Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS
Model Number: BNC-50J
Minimum Order Quantity: 1000pcs
Price: USD 0.3 per pcs
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 50000 pcs per 22 day
Interface: BNC Gender: Male
Structure: Straight 180° Mounting: Panel Mounting With Cable
Plated: Nickel Plated For Body Frequency: DC 4GHz
Size Customized: Yes Impedance: 50 Ohms (75 Ohms Is Optional)
Salt Spray Test: 48 Hours For Body Life Cycle: 500 Cyles
High Light:

coaxial antenna connector

,

coaxial cable wire connector

Products Name: RF BNC 50 Ohm Male straight coaxial Connector Panel Mounting with cable



Products Descrption:

BNC connectors have a bayonet-lock interface. It exists in 50 and 75 ohm versions. Typically, they are specified for use at frequencies up to 4 and 2 GHz, respectively. BNC connectors are the most prevalent in computer networks, audio, video, data processing, and telecommunications equipment because of their size and relatively low installed cost.



Common Application:

we produce and supply in hugh volumn for customers whose are in the fields of surveillance video devices and CATV application.

  1.

Charaterisitcs:



  1. Interface Standard: BNC

  2. Type: Connector

  3. Gender: Male

  4. Impedance: 50 Ohms

  5. Structure: Straight 180°

  6. Mounting Type: Panel Mounting with cable

  7.
Material
Items Material Plating
Center Contact Phosphor bronze Gold
Body Brass Nicel
Insulator PTFE N/A



Specification
Description Value
Frequency DC 4GHz
Impedance 50 Ohms
VSWR 1.3
Insulation Resistance > 5000 M ohms
Dielectric Withstanding Voltage 1000V
Contact Resistance for center conductor < 0.003 ohm
Contact Resistance for outer conductor < 0.002 ohm
Life Cycle 500 cyles
Temperature Rated -55 C° to +165 C°



Function: It provides an excellent RF signal transmssion, specially in Monitoring video devices and CATC,  meanwhile it can be fast and easy assembled with cables, aslo its mating is bayonet-lock type which is fast and fastened.



Sinrui's Advantage and Quality warranty for RF Connectors



(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, shape, electric performance, mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.



R&D testing Corner:



BNC RF Coaxial Connectors BNC 50 Ohm Panel Mount Coaxial Connector With Cable 1
