AU Plated Pcb Coax Connector MCX Female Straight External Coaxial Connector

Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS
Model Number: MCX-KH
Minimum Order Quantity: 1000 pcs
Price: USD 0.30 per pcs
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 10000 pcs per 24 days
Interface: MCX Gender: Female
Structure: Straight 180° Mounting: Soldering For PCB Mounting
Plated: Gold Frequency: DC 6GHz
Size Customized: Can Be Customized Impedance: 50 Ohms
Salt Spray Test: 24 Hours Life Cycle: 500 Cyles
High Light:

coaxial cable wire connector

,

rf connector n type

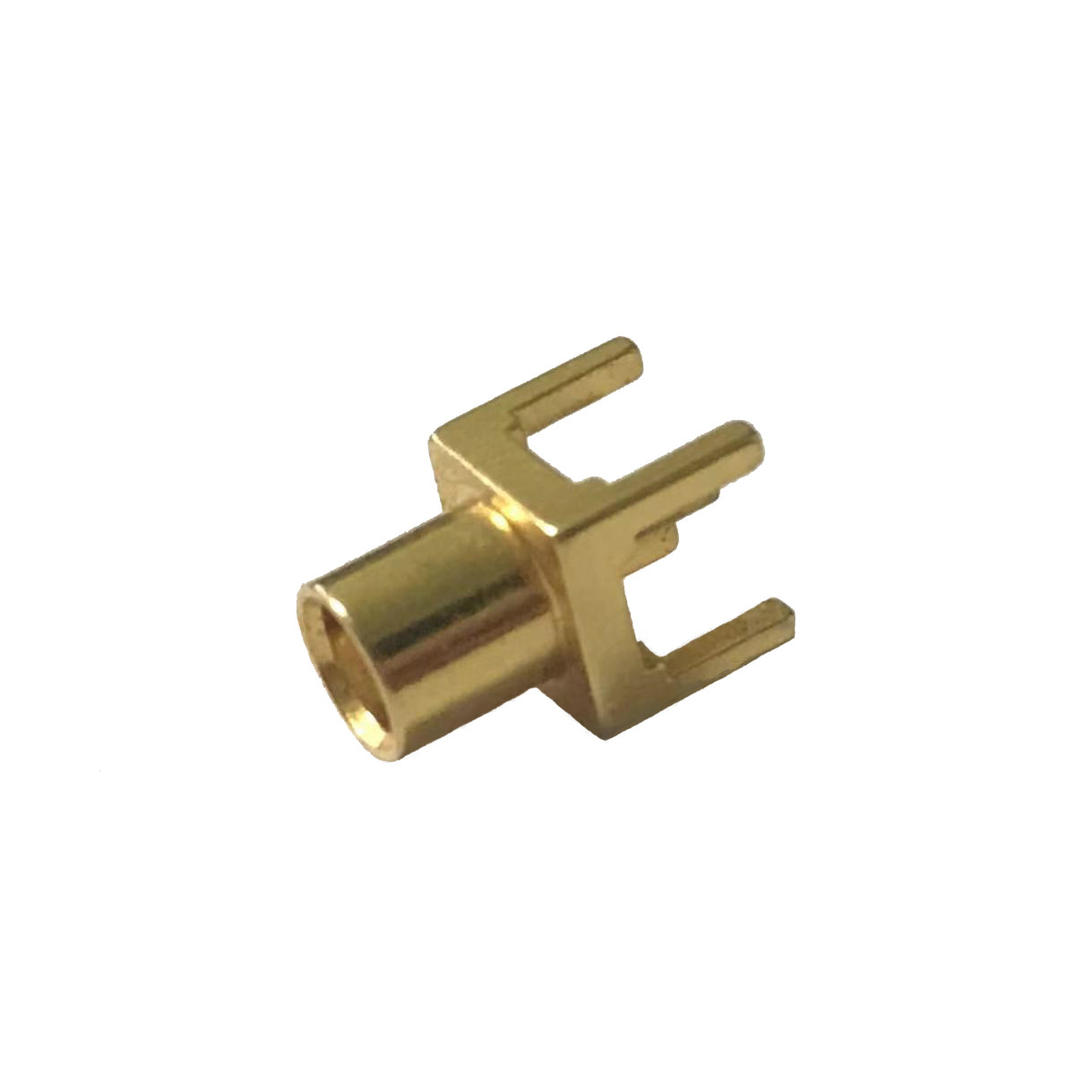

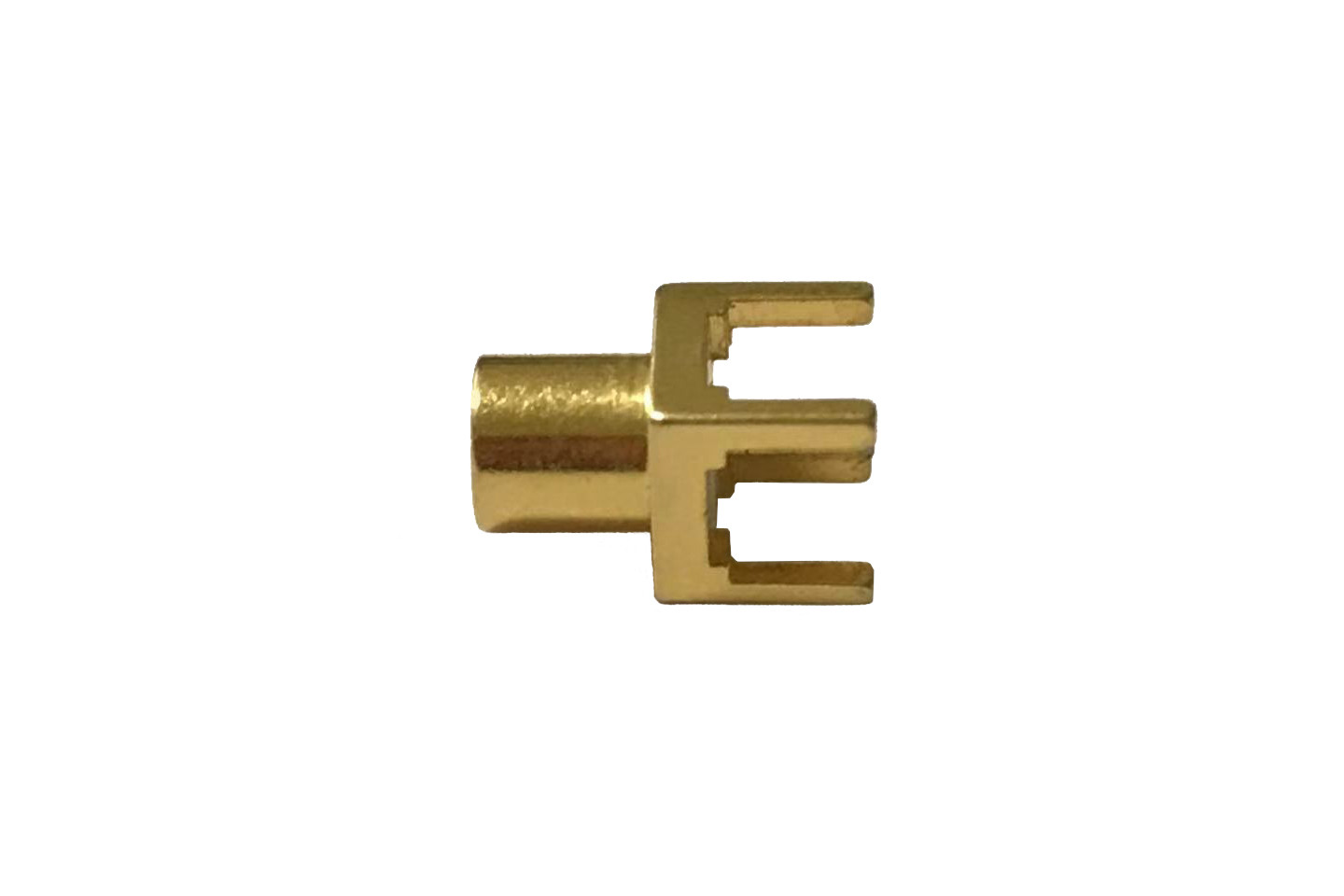

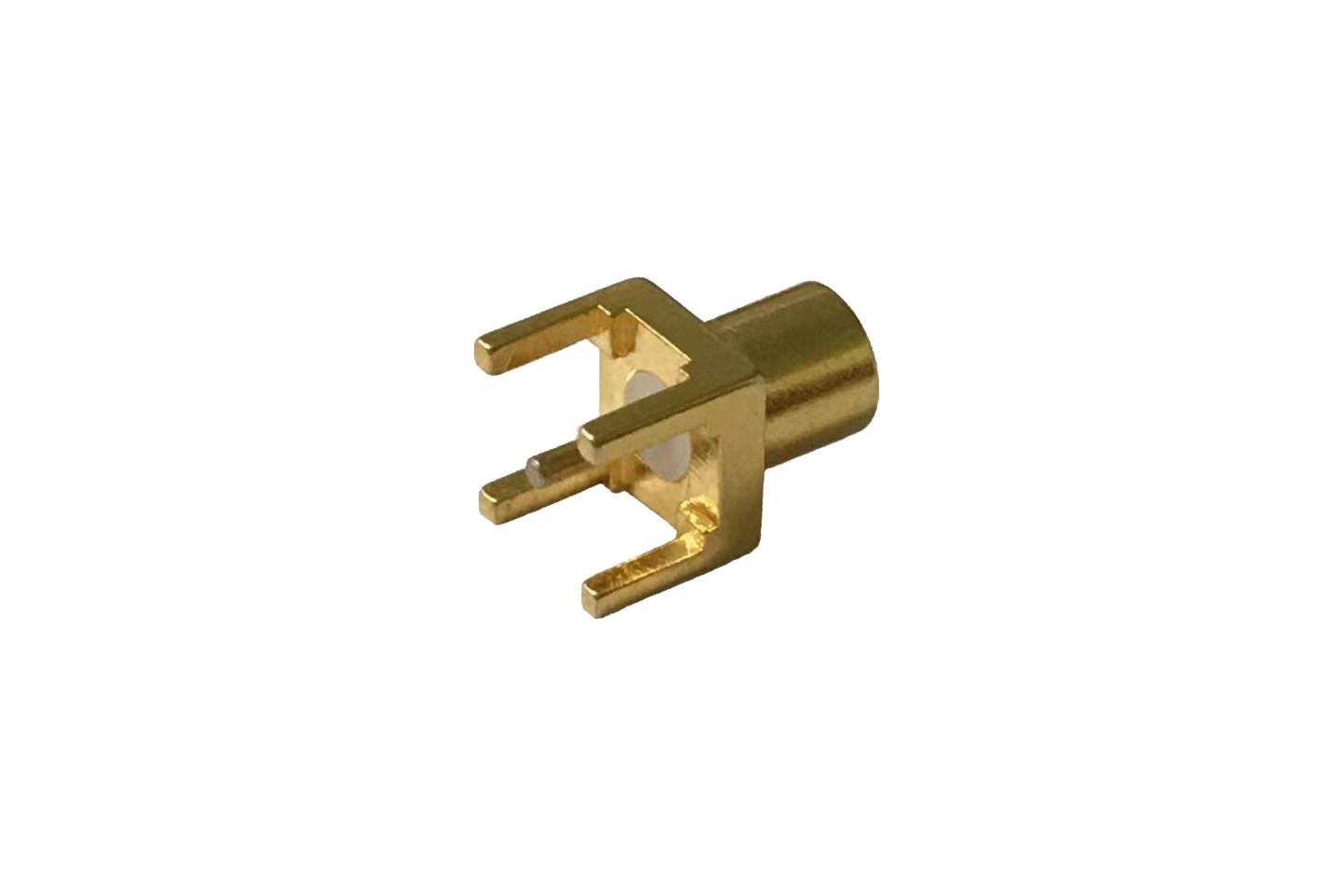

Products Name: AU Plated MCX female straight rf coaxial connector soldering for PCB Mounting



Products Descrption:

MCX connectors use a snap-on interface and usually have a 50 ohm impedance. It offers broadband capability from DC to 6 GHz. They have the same inner contact and insulator dimensions as the SMB connector but are 30% smaller. Miniature snap-on connectors which offer an excellent blend of size, weight, durability, and performance for applications such as GPS, wireless communication, testing, and measurement



Common Application:

we produce and supply in hugh volumn for customers whose are making Antenna, WIFI modules,and electronics products, bluetooth application, etc.

  1.

Charaterisitcs:



  1. Interface Standard: MCX

  2. Type: Connector

  3. Gender: Female

  4. Impedance: 50 Ohms

  5. Structure: Straight 180°

  6. Mounting Type: Soldering for PCB Mounting

  7.
Material
Items Material Plating
Center Contact Brass Gold
Body Brass Gold
Insulator PTFE N/A



Specification
Description Value
Frequency DC 6GHz
Impedance 50 Ohms
VSWR 1.2
Insulation Resistance > 1000 M ohms
Dielectric Withstanding Voltage 750V
Contact Resistance for center conductor < 0.005 ohm
Contact Resistance for outer conductor < 0.0025 ohm
Life Cycle 500 cycles
Temperature Rated -65 C° to +155 C°





Function: It provides a RF signal transmssion while there is a requirement on a small space of installation in customer application.
