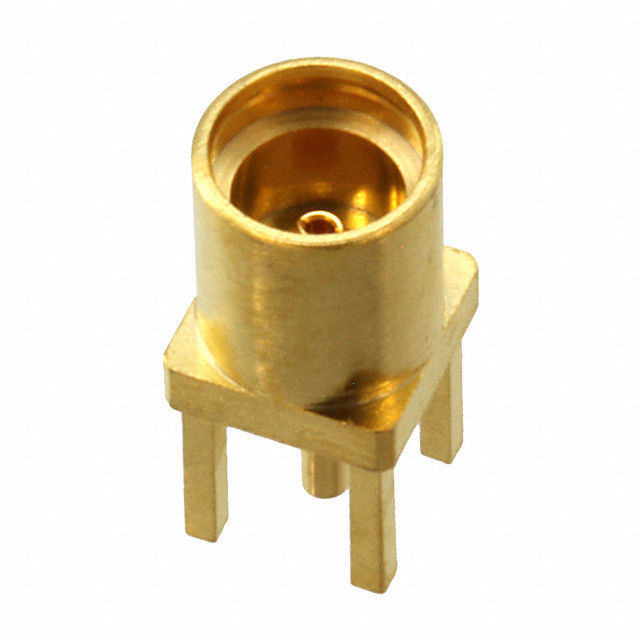

50ohm MMCX female straight rf coaxial connector mmcx for pcb mounting

Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS
Model Number: MMCX-KHD1
Minimum Order Quantity: 1000 pcs
Price: USD 0.3 per pcs
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 50000 pcs per 21 days
Interface: MMCX Gender: Female
Structure: Straight 180° Mounting: Soldering PCB Mount
Plated: Gold Frequency: DC 6GHz
Size Customized: Can Be Customized Impedance: 50 Ohms
Salt Spray Test: 24 Hours Life Cycle: Standard
High Light:

coaxial antenna connector


rf connector n type

Products Name: 50ohm MMCX female straight rf coaxial connector mmcx for pcb mounting


Products Descrption:

MMCX connectors are micro-miniature connectors with a lock-snap mechanism allowing for 360 degrees rotation and usually have a 50 ohm impedance. MMCX connectors are designed for frequency ranges from DC up to 6 GHz and for applications where smallest dimensions have to be achieved. It is therefore ideal for applications where board height is limited, including applications where boards may be stacked. As such it is being widely used in many cellular telecommunications and wireless LAN applications.


Common Application:

we produce and supply in hugh volumn for customers whose are making Antenna, WIFI modules,and electronics products, bluetooth application, etc.




  1. Interface Standard: MMCX

  2. Type: Connector

  3. Gender: Female (Jack) pin

  4. Impedance: 50 Ohms

  5. Structure: Straight 180°

  6. Mounting Type: soldering PCB

Items Material Plating
Center Contact Brass Gold
Body Brass Gold
Insulator PTFE N/A


Description Value
Frequency DC 6GHz
Impedance 50 Ohms
VSWR 1.15
Insulation Resistance > 500m ohms
Dielectric Withstanding Voltage 500V
Contact Resistance for center conductor < 10m ohm
Contact Resistance for outer conductor < 5m ohm
Life Cycle Standard
Temperature Rated -65 C° to +165 C°



Function: It provides a RF signal transmssion while there is a requirement on a small space of installation in customer application.


Sinrui's Advantage and Quality warranty for RF Connectors50ohm MMCX female straight rf coaxial connector mmcx for pcb mounting 0


(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, shape, electric performance, mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.

R&D testing Corner show:


50ohm MMCX female straight rf coaxial connector mmcx for pcb mounting 1
