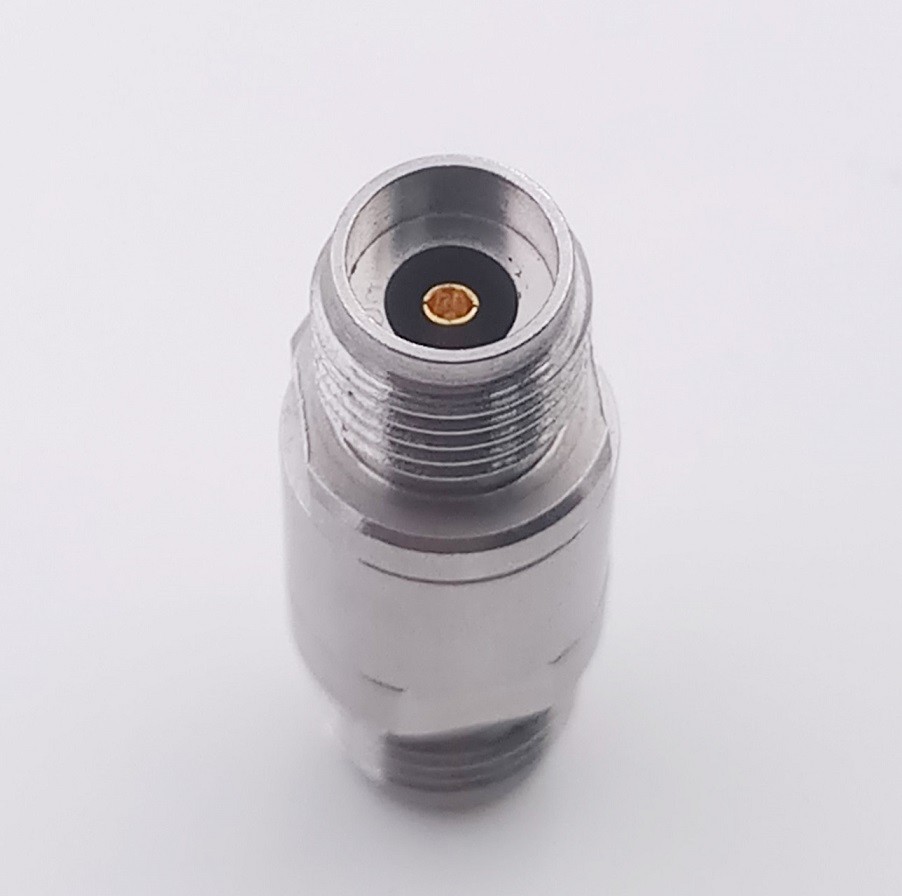

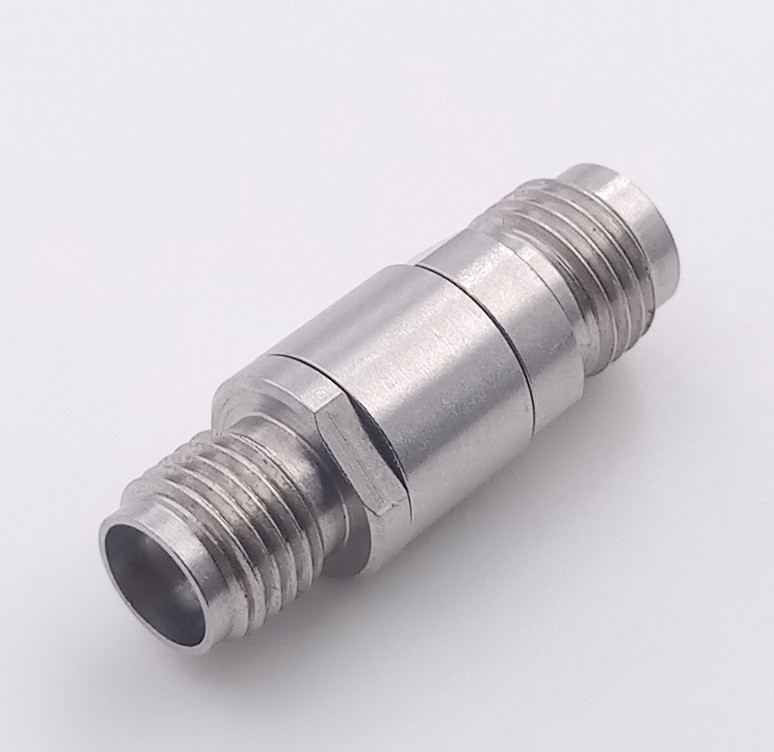

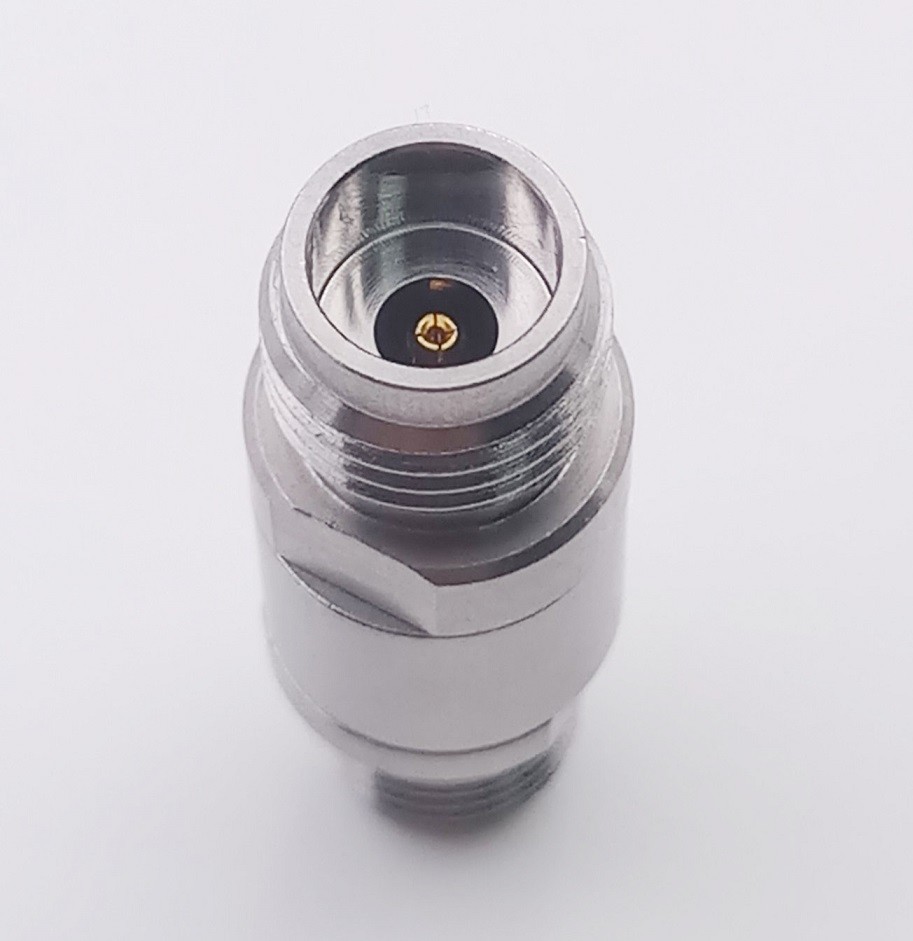

40GHz 50 Ohm Waterproof Coaxial Connector RF 2.92mm Female To 2.4mm Female Adapter Connector VSWR 1:1.3

Products Name: RF 2.92mm female to 2.4mm female adapter connector 40GHz 50 Ohm VSWR 1:1.3

Products Descrption:

high performance End Launch connectors are designed to provide low VSWR, mode free wideband response to 40 GHz for single-layer and multi-layer printed circuit boards where the high frequency signal is on the top layer.
Male and female options along with narrow body and bulkhead feed-through. Robust, reusable and repairable. Multiple launch configurations provide the best possible match to circuit layout. Works on microstrip and grounded coplanar waveguide (GCPW) designs. Signal-layer microstrip and GCPW test boards available. Soldering the pin to the signal trace is optional.

Common Application:
we produce and supply for tester instrument, antenna, millimeter wave communication and high power application, radar,satellite communications as well as defense systems and aerospace programs.

1. Charaterisitcs:

1. Interface Standard: 2.92mm

2. Type: Adapter

3. Gender: Female to female adapter​

4. Impedance: 50 Ohms

5. Structure: Straight 180°

6. Mounting Type: 2.92mm female to 2.4mm female Adapter

7.

Like, Military, testing instrument, Satellite Communication Equipment ,etc
