40GHz 2.92mm Straight End Launch Connector Gold Plated For PCB Test

Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS
Model Number: 2.92-khd23
Minimum Order Quantity: 500pcs
Price: USD 8.5 per pcs
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 10000 per 28 days
Match Interface: 2.92mm Gender: Female
Structure: Straight With Block Frequency: DC 40GHz
Impedance: 50 Ohms Life Cycle: 500 Cyles
High Light:

Straight End Launch Connector


2.92mm End Launch Connector


40GHz end launch connector

40GHz 2.92mm Straight End Launch Connector Gold Plated For PCB Test

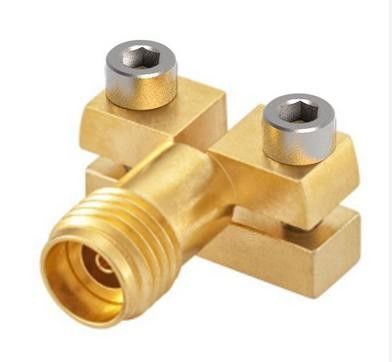

Products Name40GHz 2.92mm female End Launch connector gold plated with block for PCB Test


Products Descrption:

high performance End Launch connectors are designed to provide low VSWR, mode free wideband response to 40 GHz for single-layer and multi-layer printed circuit boards where the high frequency signal is on the top layer.
Male and female options along with narrow body and bulkhead feed-through. Robust, reusable and repairable. Multiple launch configurations provide the best possible match to circuit layout. Works on microstrip and grounded coplanar waveguide (GCPW) designs. Signal-layer microstrip and GCPW test boards available. Soldering the pin to the signal trace is optional.

Common Application:
we produce and supply for tester instrument, antenna, millimeter wave communication and high power application, radar,satellite communications as well as defense systems and aerospace programs.

  1. Charaterisitcs:


  1. Interface Standard: 2.92mm

  2. Type: End Launch Connector

  3. Gender: Female

  4. Impedance: 50 Ohms

  5. Structure: Straight 180°

  6. Mounting Type: Screw clamp for microstip

Items Material Plating
Center Contact Bron Gold
Body Brass Gold
Insulator PEI / PTFE N/A


Description Value
Frequency DC 40GHz
Impedance 50 Ohms
VSWR 1.4
Insulation Resistance > 5000 M ohms
Dielectric Withstanding Voltage 750V
Contact Resistance for center conductor < 0.003 ohm
Contact Resistance for outer conductor < 0.002 ohm
Life Cycle 500 cyles
Temperature Rated -65 C° to +165 C°


Function: It provides an excellent RF signal transmssion which is used in high performance or RF high power application.

Like, Military, testing instrument, Satellite Communication Equipment ,etc
