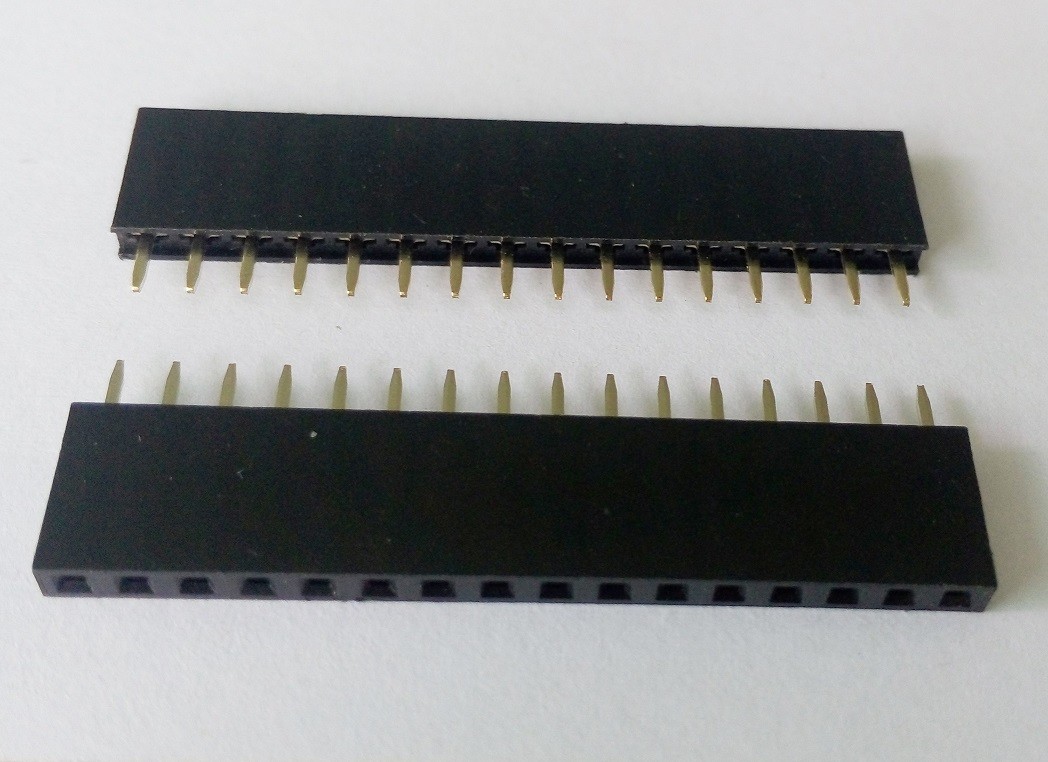

1x16 Pins Single Row Pin Header Pitch 2.54mm Breakaway Female Headers

Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS,REACH, ISO9001:2015
Model Number: SR-F85S02AS-XX
Minimum Order Quantity: 5000pcs
Price: please contact us
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 500000 per 16 days
Pitch: 2.54mm Pin Numbers: 16 Pins
Row: Single Row Plastics Height: 8.5 Mm
Pin Material: Brass Plastics Material: PA6T +30% Glass Fiber
Rated Current: 3.0 Amp Voltage Rated: 500V AC / Min,
High Light:

pcb female header

,

female pin header connector

Products Name:Pitch 2.54mm female header Connector 1x16Pins Gold plated straight DIP for PCB Mounting



Products Descrption:

this Female Header Connector is with pitch 2.54mm, dual row with 4 pin numbers. with a specified plastics height of 8.5mm that it can afford an 3.0 AMP of current transmission. It usually match with a same pitch and pin number of Pin Header so as to form as board to board connection, or match with a wire haress forming as wire to board connection;



Its pitch, pin number, mounting type, height can be customized according to customer application, like:

Pitch can be optional as 1.27mm, 2.0mm, 2.54mm, etc;

And it can be  single row, dual row or triple row.

And its plastics height are commonly optional for 8.5mm, 7.1mm, 5.7mm etc.

Mounting type can be customized to be SMT(vertical or side entry), DIP throught PCB(vertial or side entry).



Common Application:

we produce and supply in hugh volumn for consuming electronics of consumer catagory, Telecommunication, industrial control, meters, medical, aviation and millitary.


  1.
Material
Items Material Plating
Contact Brass Gold
Insulator PA6T +30% glass fiber N/A



Specification
Description Value
Type Board to Board Connector
Gender Female Header
Structure Straight
Mounting type

DIP for PCB Mounting

Current rated 3.0 Amp per contact
Voltage Rated 500V AC/ min.
Contact Resistance < 20m ohm per contact
Insulation resistance > 1000m ohm
Withstanding Voltage 500V DC/AC
Temperature Operation -40 C° to +105 C°
Processing(Soldering) Temperature

230C° for 30~60 seconds,

(260C° for 10 seconds)





Function: It provides an electric current connection between board to board or board to wires.
