Series Interface: | SMA | Gender: | Female |
---|---|---|---|
Structure: | Straight 180° | Monnting: | Soldering For PCB Mounting |
Plating: | Gold | Frequency: | DC 18 GHz |
Size Customized: | Can Be Customized | Impedence: | 50 Ohm |
Salt Spray Test: | 48 Hours | Life Cycle: | 500 Cyles |
High Light: | sma jack connector,sma flange mount connector |

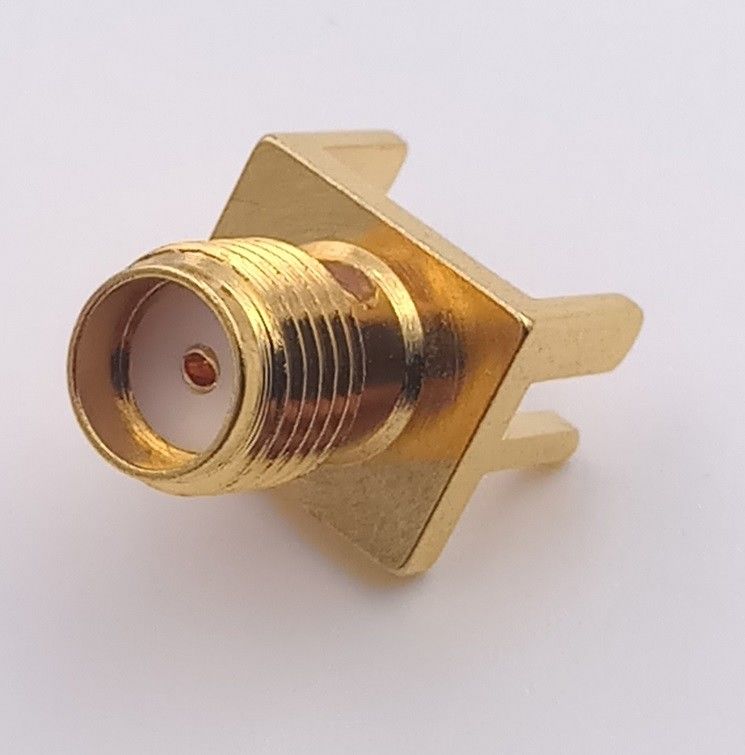

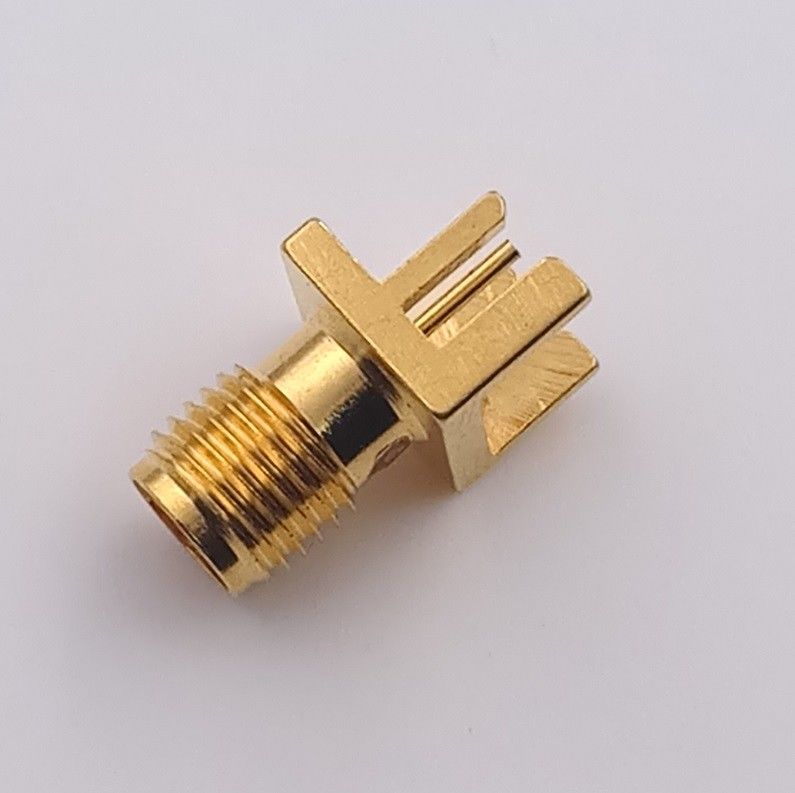

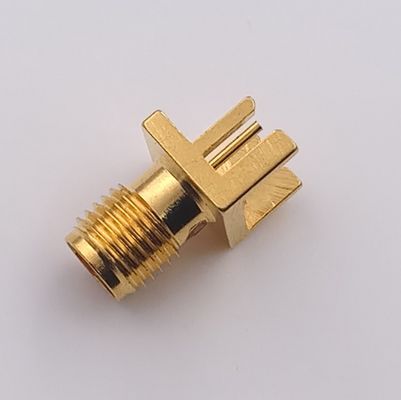

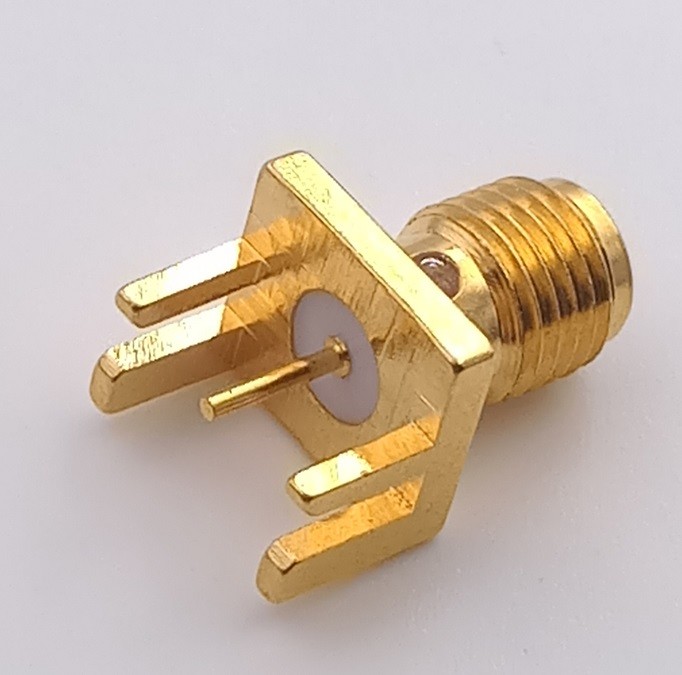

Products Name: Gold plated 18GHz SMA female connector straight for PCB Mounting Wifi antenna connectors
Products Descrption:
SMA connector is a precision sub-minimal connector interface for coaxial cable with a screw type coupling mechanism. The connector has a 50Ω impedance. It offers excellent electrical performance from DC to 18 GHz. It is often used for providing RF connectivity between cables, boards, and many microwave components including filters, attenuators, mixers, and oscillators. SMA and precision SMA-like connectors are by far the most popular, small, threaded coaxial connectors.
Common Application:
we produce and supply in hugh volumn for customers whose are making Antenna, WIFI modules,and electronics products;
Also we produce in small volumn for meters and aviation usage.
Charaterisitcs:
Interface Standard: SMA
Type: Connector
Gender: Female
Impedance: 50 Ohms
Structure: Straight 180°Mounting Type: Soldering for PCB Mounting
Material | ||
Items | Material | Plating |
Center Contact | Brass | Gold |
Body | Brass | Gold |
Insulator | PTFE | N/A |
Specification | |
Description | Value |
Frequency | DC 18GHz |
Impedance | 50 Ohms |
VSWR | 1.10 |
Insulation Resistance | > 5000 M ohms |
Dielectric Withstanding Voltage | 1000V |
Contact Resistance for center conductor | < 3.0 m ohm |
Contact Resistance for outer conductor | < 2.0 m ohm |
Life Cycle | 500 cyles |
Temperature Rated | -65 C° to +165 C° |
(ODM and OEM) Afford Customized design service: products can be customized according to customer's products usage, including size, shape, electric performance, mounting method, etc. If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.
